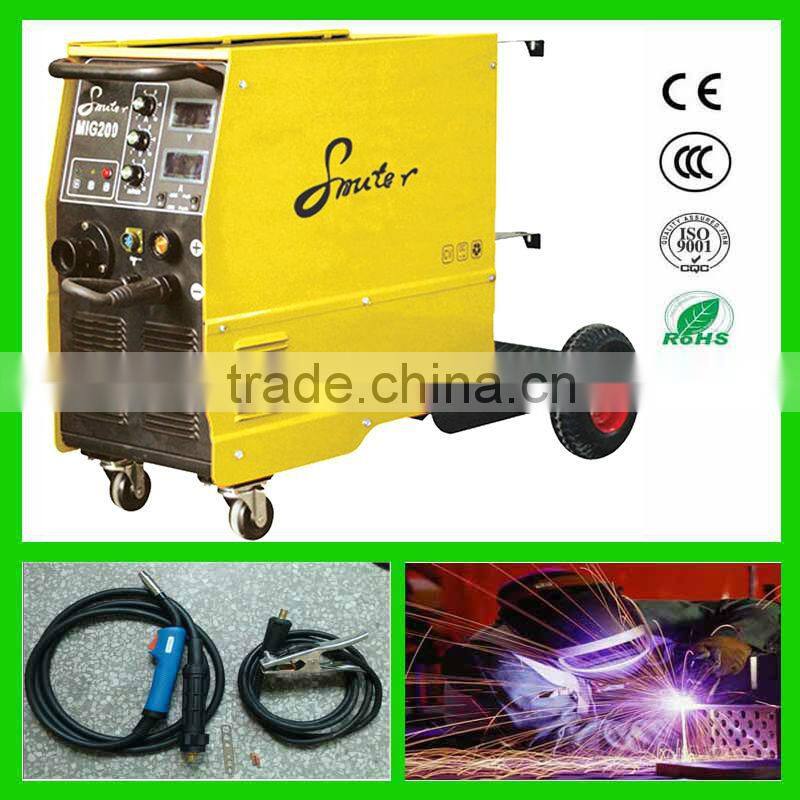

Inverter MIG/MMA IGBT welding machine (MIG200T)
Functions and Features
*Adopt IGBT as power service, with unique control mode, high reliability.
* Multi-function gas& gasless MIG welding
* High duty cycle, be able to carry out long-time welding
* Closed circuit feedback, constant voltage output, fits for wide voltage range (±15)
* Slow wire feeding during arc starting, removing the tip ball after welding enables easy arc-starting
* Under the control of electronic reactor, stable welding arc, little spattering, deep welding penetration and nice welding bead.
* Widely use in thin plate welding field such as automobile, motorcycle accessories, steel-wood furniture, high steel structure etc
Technical Parameters
| Item/Model | MIG200T |
| Input power voltage(V/HZ) | Single phase 220±15% 50/60 |
| Rate input power capacity(KVA) | 7.5 |
| Rate input current/Voltage(A)(V) | 200/24 |
| Output current range(A) | 30-200 |
| Diameter of spool(mm) | 200 |
| Duty cycle(%)(25°C) | 60 |
| Full-load efficiency(%) | 85% |
| Power factor( COSφ ) | 0.93 |
| Overall dimension(mm) | 700*400*725mm |
| Insulation class | F |
| Protection class | IP23 |
| Feeding speed(m/min) | 2.5-16 |
| Type of wire feeder | Inside |
| Suitable thickness(mm) | above 0.8 |
| Post-flow time(S) | 1±0.5 |
| Weight(kg) | 46 |
C. Accessories
D. Supply
1. OEM and ODMsevice offered, Machine Color
2. One Year Warranty.
3. Technical Support.
4. CE and CCC certificate
E. Strict Quality Control:
Our products are strictly tested 100% before delivery, and approved by CE. And our products are able to meet or exceed some of the industry's most rigid standards. We can ensure you will be satisfied with both performance and durability
F. After-sale Service:
If you have any problem about using the machine, feel free to contact us!
G. Production Line:
