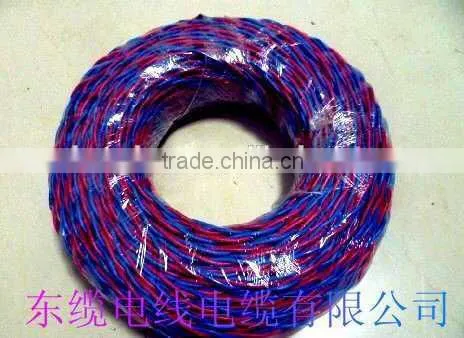

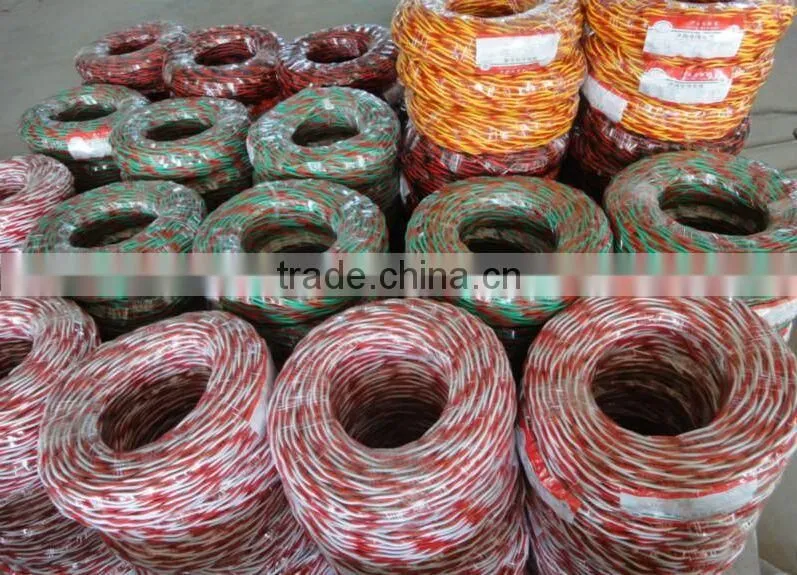

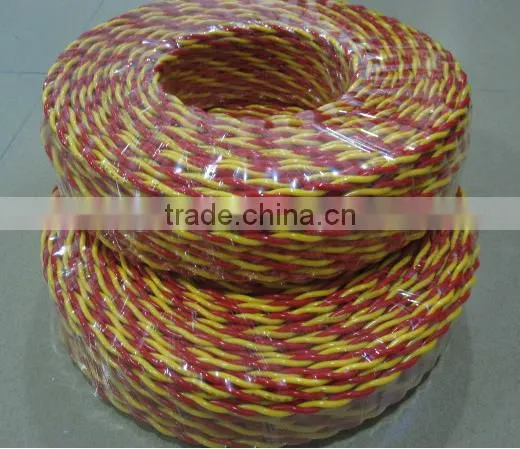

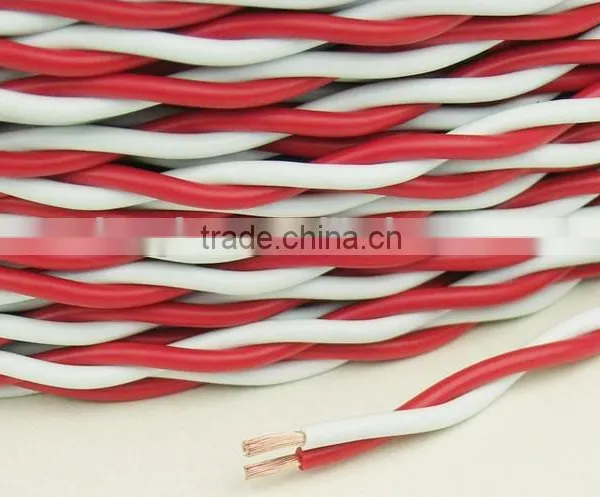

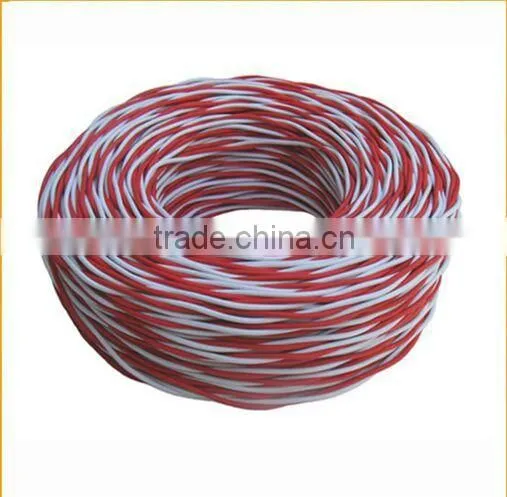

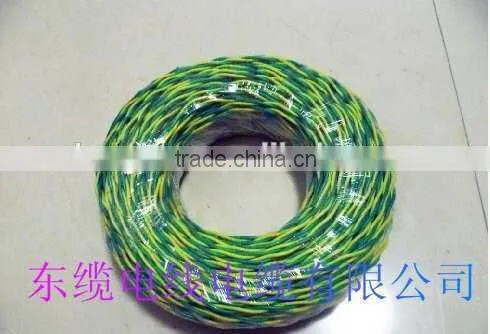

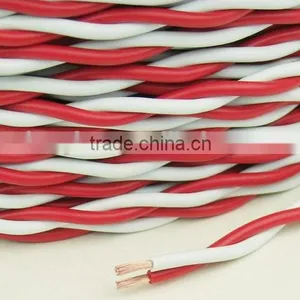

Help CenterTWISTED PVC INSULATED TWISTED CABLE
Related Products
-
PVC Insulated Twist Pair Wire 300/500V Cca,ccsUS$ 2.00 - 2.00MOQ: 100 Pieces -
High Quality 2 Core Twisted Electrical Wire With PVC Insulation Made in ChinaUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
High Quality 2 Core Twisted Electrical Wire With PVC Insulation Made in ChinaUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
Red and Yellow Twisted Copper Strand PVC Flexible Electrical WireUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
PVC Insulated Twist Pair Wire 300/500V Red/blackUS$ 2.00 - 2.00MOQ: 1000 Pieces
Application:
The PVC Insulated Wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places. They are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment with rated voltage up to 450/750V( Uo /U). Part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300/300V.
Construction:
(1).Conductor: bare/tinned copper,or Aluminum.
(2).Insulation: PVC rated at 70°C
(3).Color Code:red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement
(4).Outer sheath: PVC tapes ST2 to IEC.
Service Performance of RVS:
(1).Rated voltage: 450/750V
(2).Long-term working temperature: not be higher than 70°C
(3).When laying the cable, the ambient temperature should not lower than 0°C
(4)Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D ascable overall diameter>25mm.
