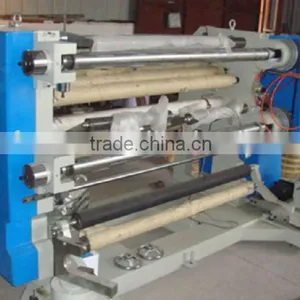

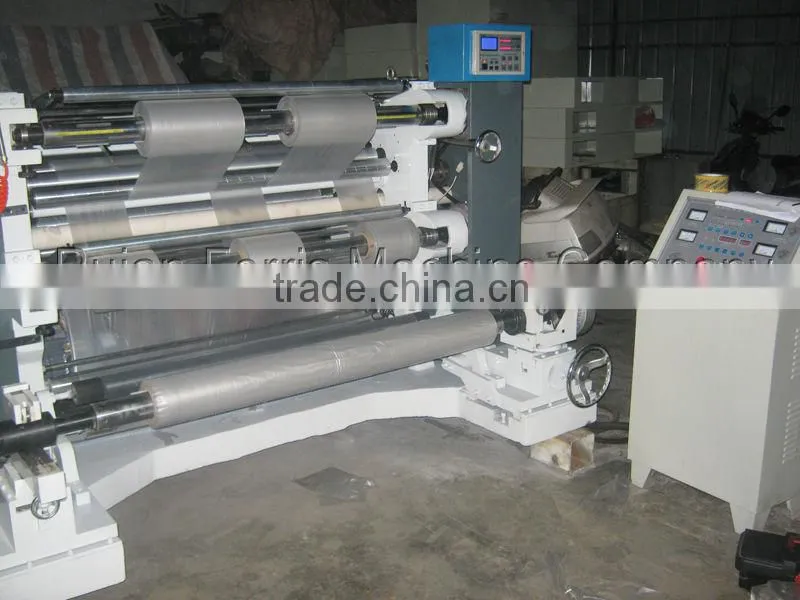

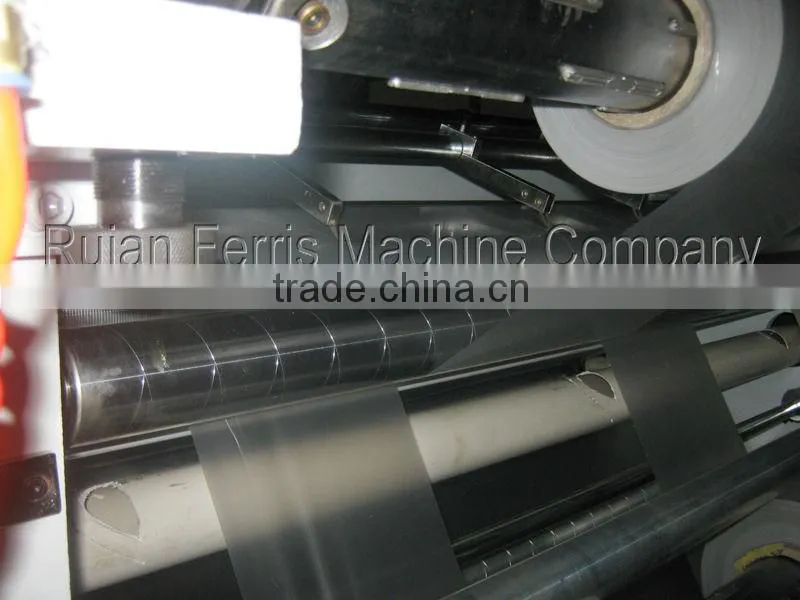

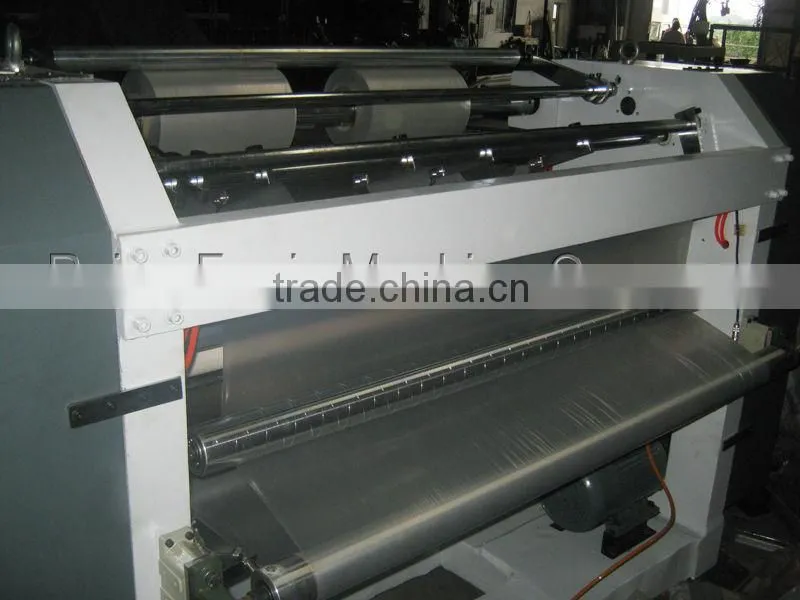

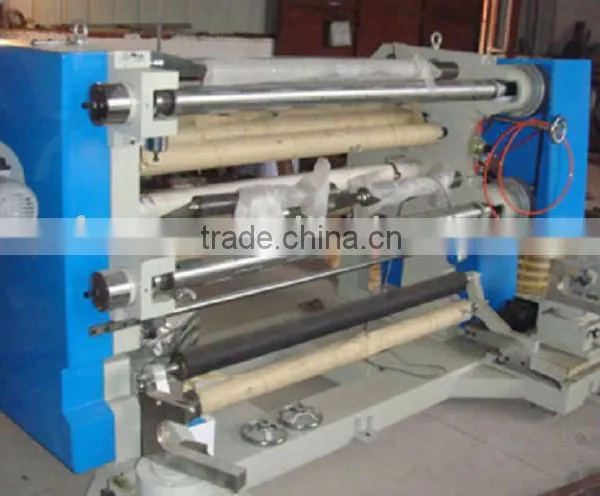

FRS–A Model Vertical Type Slitting and Rewinding Machine
Model |
FRS -A1300 |
Original Material Width |
1300mm |
Original Material Diameter |
Φ600mm |
Final Material Width |
30-1200mm |
Final Material Diameter |
400mm |
Speed |
5-160m/min |
Error |
<0.5mm |
Total Power |
3.5kw |
Weight |
1800kg |
Size(LWH) |
2.6mX1.11mX1.4m |
1. The machine is a kind of vertical separating and cutting machine. Rolling and releasing can be in front of or at the back of the machine.
2. Independent master control screen, more flex able and even easier operation.
3. Automatic deviation-rectifying of releasing, photoelectric eye is suitable for tracking the edge and color of transparent material.

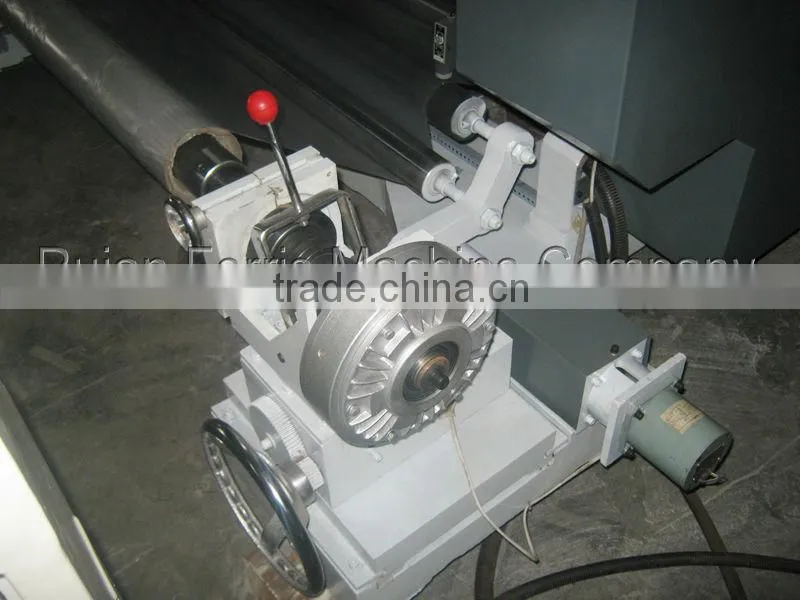

4. Releasing tension adopts magnetic powder clutch control.
5. Rolling adopts magnetic clutch control.
6. Automatic slitter edge blowing-inhaling device.
7. Automatic meter counting of material moving length
Configuration
1. Adopt with magnet powder brake
2. Tension controller.
3. Air shafts
4. Cut edge with Centrifugal fan blowing.
5. Emptying have Edge correction, control by photoelectric eyes
6. Machine speed : 160m/min
7. Diameter of Unwind is 600mm,diameter of rewind is 400mm
