Help CenterVLV22 Aluminum Conductor PVC Insulated Armored Cable PVC Sheathed Armored Cable Power Cable 240 sq Meter
Related Products
-
YJV Copper Core XLPE Insulated PVC Sheathed Electric Wire Power Cable /electrical Cables and WiresUS$ 2.00 - 2.00MOQ: 1000 Pieces -
Xlpe Insulation PVC Sheath Aluminum Power Cable With Lighting WireUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
Underground Cable Steel Wire/type Armoured Copper Power CableUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
Aerial Bounded Cable ABC AL/XLPE 0.6/1KV ABC Cable Aluminum Conductor ABC CableUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
KVV 22 Armouring Copper Core Control CableUS$ 2.00 - 2.00MOQ: 1000 Pieces
VLV22 Aluminum conductor PVC insulated Armored cable PVC sheathed armored cable power cable 240 sq meter description
1,Long-term allowable operating temperature of cable conductor ≤70°C
2Highest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): ≤300mm2 cable conductor ≤160°C, ≥300 mm2 cable conductor≤ 140°C.
3The laying temperature should over 0℃,Permissible bending radius of cable:for single core armored cable, should be no less than 15 times of it’s outer diameter ; for multi-core armored cable, should be no less than 12 times of it’s outer diameter
4The product is applicable for AC 50 Hz transmission and distribution lines with rated voltage of 0.6/1KV . Laid indoors, in tunnels or in soils, and can bear external mechanical forces.

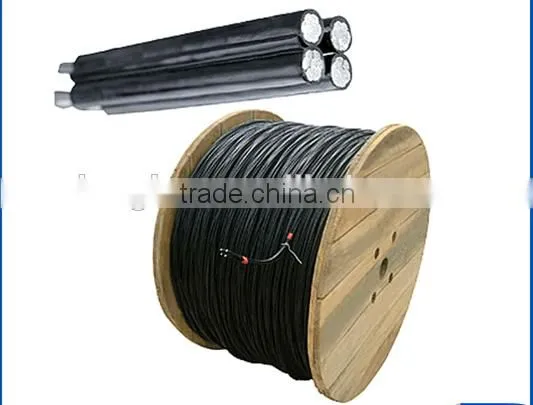

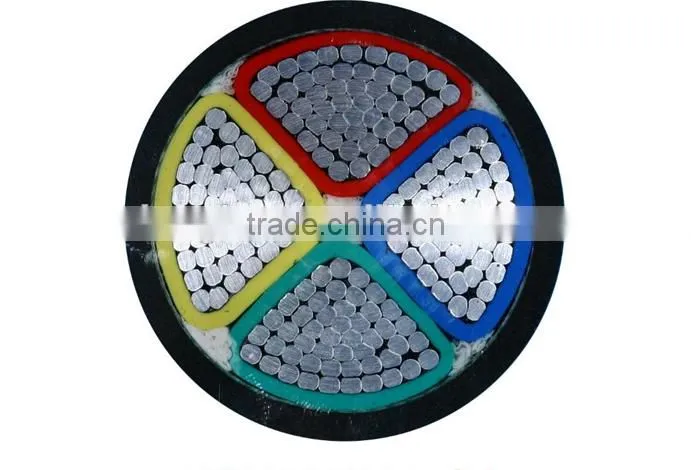

VLV22 Aluminum conductor PVC insulated Armored cable PVC sheathed armored cable power cable 240 sq meter pictures
