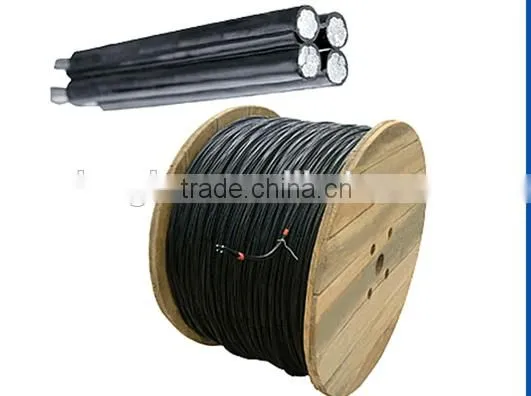

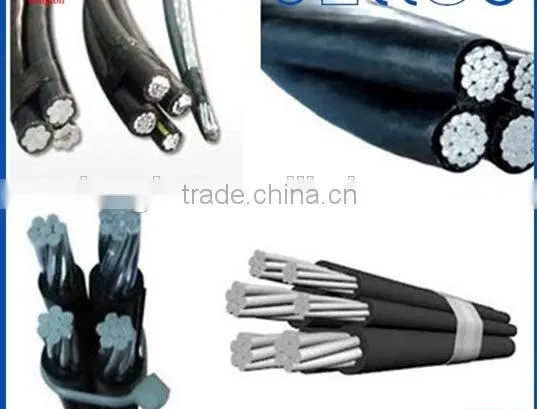

Aluminum Conductor AAC Cable/AAAC ACSR AAC Overhead Cable/All Aluminum AAC Conductor,Electrical Wire Prices

Name: Aluminum Conductor AAC Cable/AAAC ACSR AAC Overhead Cable/All Aluminum AAC Conductor,Electrical Wire Prices
Brand: donglan
SKU: 115558217

Aluminum Conductor AAC Cable/AAAC ACSR AAC Overhead Cable/All Aluminum AAC Conductor,Electrical Wire Prices thumbnail-1

Aluminum Conductor AAC Cable/AAAC ACSR AAC Overhead Cable/All Aluminum AAC Conductor,Electrical Wire Prices thumbnail-2

Aluminum Conductor AAC Cable/AAAC ACSR AAC Overhead Cable/All Aluminum AAC Conductor,Electrical Wire Prices thumbnail-3

Aluminum Conductor AAC Cable/AAAC ACSR AAC Overhead Cable/All Aluminum AAC Conductor,Electrical Wire Prices thumbnail-4

Aluminum Conductor AAC Cable/AAAC ACSR AAC Overhead Cable/All Aluminum AAC Conductor,Electrical Wire Prices photo-1

Aluminum Conductor AAC Cable/AAAC ACSR AAC Overhead Cable/All Aluminum AAC Conductor,Electrical Wire Prices photo-2

Aluminum Conductor AAC Cable/AAAC ACSR AAC Overhead Cable/All Aluminum AAC Conductor,Electrical Wire Prices photo-3

Aluminum Conductor AAC Cable/AAAC ACSR AAC Overhead Cable/All Aluminum AAC Conductor,Electrical Wire Prices photo-4

US$ 2.00 - 2.00 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Jiangxi, China

Brand Name:

donglan

Model Number:

audio

Contact Supplier Request Quote Chat Now

Jiangxi Donglan Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangxi, China

Brand Name donglan

Model Number audio

Type Other

Application Other

Conductor Material Copper

Conductor Type Stranded

Insulation Material PVC

1.Application:

The product is a new type of aerial cable for power transmitting. It is extensively used in overhead

power transmission line. It improves the safety and reliance of electrified wire netting.

2.Construction:

Conductors are composed of stranded compressed 1350—H19 aluminum wire(AAC Conductor).

The material of insulation is PVC or XLPE. Load cable is stranded aluminum wire which twisted by aluminum

wire or steel core aluminum stranded wire which meet the standard 6201 series.

3.Technical Parameter of ABC cable which based on Standard

ASTM ANSI/ICEA S—76—474 and NFC 33—209

4.Technical specification for ABC Cable

Code word	AWG or kcmil	Bare Neutral Messenger		Phase Condutor Code word		Weight (kg/km)
		AAC	Rated Strength (lbs)	AAC	Insulation Thickness (mm)
		Stranding and Wires Dia. (mm)	Rated Strength (lbs)	Stranding and Wires Dia. (mm)	Insulation Thickness (mm)
Pekingese	16AWG+16AWG	7/1.56	563	1/4.11	1.14	92
Collie	16AWG+16AWG	7/1.56	563	7/1.56	1.14	94
Dachshund	14AWG+14AWG	7/1.96	881	1/5.19	1.14	139
Spaniel	14AWG+14AWG	7/1.96	881	7/1.96	1.14	141
Doberman	14AWG+12AWG	7/2.47	1350	7/2.47	1.14	216
Malemute	11/0AWG+11/0AWG	7/3.12	1990	19/1.89	1.52	347

Code word	AWG or kcmil	Bare Neutral Messenger		Phase Condutor Code word		Weight (kg/km)
		AAC	Rated Strength (lbs)	AAC	Insulation Thickness (mm)
		Stranding and Wires Dia. (mm)	Rated Strength (lbs)	Stranding and Wires Dia. (mm)	Insulation Thickness (mm)
Setter	16AWG+16AWG	1/1.68+6/1.68	1190	1/4.11	1.14	111
Shepherd	16AWG+16AWG	1/1.68+6/1.68	1190	7/1.56	1.14	113
Eskimo	14AWG+14AWG	1/2.12+6/2.12	1860	1/5.19	1.14	171
Terrier	14AWG+14AWG	1/2.12+6/2.12	1860	7/1.96	1.14	173
Chow	12AWG+12AWG	1/2.67+6/2.67	2850	7/2.47	1.14	266
Bull	11/0AWG+11/0AWG	1/3.37+6/3.37	4380	19/1.89	1.52	427
