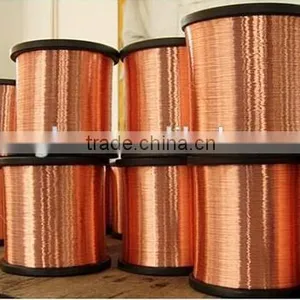

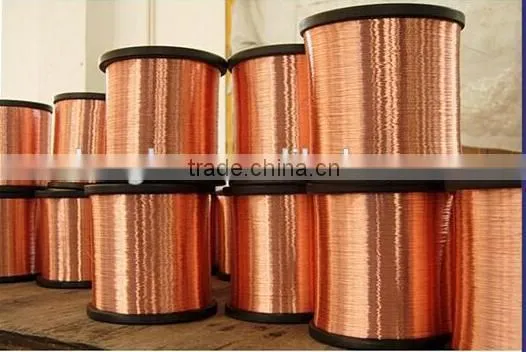

Help Center0.24mm QA Enamelled Copper Clad Aluminium(ECCA) Electrical Wire
Related Products
-
Copper Clad Steel Stranded Electrical WiringUS$ 2.00 - 2.00MOQ: 1000 Pieces -
CCA,CCAM.TCCA,TCCAM,Copper Clad AluminumUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
CX-37% Copper Clad Aluminum Wire for Signal TransmissionUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
Copper Clad Aluminum CCA Wire 0.15mm Soft AnnealedUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
C10600 0.35mm Insulation Thickness PFA Insulated Copper Wire for Motor WindingUS$ 2.00 - 2.00MOQ: 1000 Pieces
Advantages of our Enamelled copper clad aluminium wire(ecca)
1. Light-weight: CCAW is about one-third of the weight of copper wire of the samethickness. This is extremely advantageous for reducing the weight of the coil
2. DC resistance: CCAW has about 1.5 times the DC resistance of copper wire. Becauseit is three times as light as copper wire, however, only one-half of the weightof copper wire is needed to handle the same current
3. Soldering: Because the surface of the conductor of CCAW is clad with copper, thereis no need for special soldering as is the case with aluminum wire. Solderingcan be done in exactly the same way as with copper wire
ECCA Applications:
1) Inner conductor of CATV coaxial cable
2) Inner conductor of 50ohms RF cable
3) Inner conductor of leak cable
4) Conductor of computer cable, LAN cable and others data cables
5) Inner conductor of micro coaxial cable
6) Strand wire
7) Conductor of Control cable
8) Conductor of automotive cable
9) Building distribution wire
Details Tech Information:
Name |
ecca wire |
||
Type |
Q(ZY/XY)-1/200 |
||
Diameter |
0.27mm |
||
Standard |
IEC60317 |
||
Test Item |
Unit |
Technical Requirement |
Test Result |
Appearance |
|
bright and clean, Uniform color, |
Ok |
Overall Diameter |
mm |
<=0.302mm |
0.295 |
Conductor Diameter |
mm |
0.270±0.004 mm |
0.27 |
Roundness Tolerance |
mm |
<=0.004 mm |
0.002 |
Thickness of insulation film |
mm |
>=0.018mm |
0.025 |
Elongation |
|
>=22 % |
30% |
spring-back angle |
|
<=47 |
43 |
Flexibility and adhesion |
winding test |
1D |
1 |
Jerk test |
No Crack, and No losing adhesion |
OK |
|
heat shock |
|
0.630mm |
ok |
cut-through resistance |
|
320C, 2Min no breakdown |
2 |
Resistance to solvent |
|
1H |
1 |
Breakdown Voltage |
KV |
>=2.2 KV |
7.6 7.0 6.8 6.2 7.7 |
scratch resisting(Average) |
N |
3.25 N |
7.98 |
scratch resisting(Min) |
N |
2.75 N |
7.12 |
package |
|
Meet the export standards |
Ok |
Enamel Film continuity |
|
<=25 /30m |
0 |
Quality Control Result |
|
||
| Copper volume | 30% |
| Specific gravity | 3.40g/m3 |
| Conductivity | 67%IACS |
| Tensile strength | 110-135Mpa |
| Rebound degree | 41-43 |
| Coating thickness | class1≥0.030mm class2≥0.056mm |
| Voltage | >6000V |
| Resistivity | 0.0254Ω.mm2/m |
| Elongation | ≥10% |
