acrylic laser engraving cutting machine
- 2000 Set / Sets per Month
- Qingdao Shanghai
- T/T
- DANAPR UV Laser Marking Machines F2010
- 1390 large laser engraving machine window cut paper PVC plating film laser cutting machine, cardboard paper engraving machine
- DANAPR UV Laser Marking Machines F2010 UV laser
- 3D Crystal Laser Engraving Machine
- DANAPR UV Laser Marking Machines F2005 UV laser
- DANAPR UV Laser Marking Machines
Product Details
Condition: | New | Laser Type: | CO2 | Engraving Area: | 600*400mm |
Engraving Speed: | 400mm/s | CNC or Not: | No | Cooling Mode: | Water Cooling |
Applicable Material: | Acrylic, Crytal, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood | Graphic Format Supported: | BMP, DST, DWG, DXF, DXP | Place of Origin: | Shandong, China |
Brand Name: | GY | Model Number: | GY-460 | Dimension(L*W*H): | 116*75*103cm |
Certification: | CCC, CE, ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
GY-460 Laser engraving & cutting machine
Feature of GY-460 Laser engraving machine
1. Easy to operate, better to learn
2. Both can be used in engraving and cutting
3. Design from Morn, service for the whole world
4. Good quality laser engraving machine with low price
Specitications of Laser engraving machine
Model/Name | GY-460 Laser Engraving Machine |
Working Table Size | 600 *400mm |
Laser Tube | Sealed CO2 glass Tube |
Laser Power | 100W |
Cutting Speed | 0-3600 mm/min |
Engraving Speed | 0-30,000mm/min |
Resolution | ±0.05mm /1000DPI |
Minimum Letter | English 1×1mm (Chinese Characters 2*2mm) |
Support Fils | BMP,HPGL,PLT,DST and AI |
Port | USB 2.0 Plug and play |
Software | CorelDraw (Direct Output) |
Motor | Stepper |
Power Voltage | AC 110-220V±10%,50-60Hz |
Working Environment | 0-45℃ 5-95%(humidity) |
Power consumption | <300W (Toal) |
Software compatible | CorelDraw, AutoCAD, Photoshop |
Table type | Aluminum |
Z-Axis Movement | Automatic (0-300mm adjustable) |
Position system | RED dot pointer |
Power Supply | Water-cooled system |
Cutting thickness | 0-10mm (upon materials type) |
Rotary device | φ10-150×300mm |

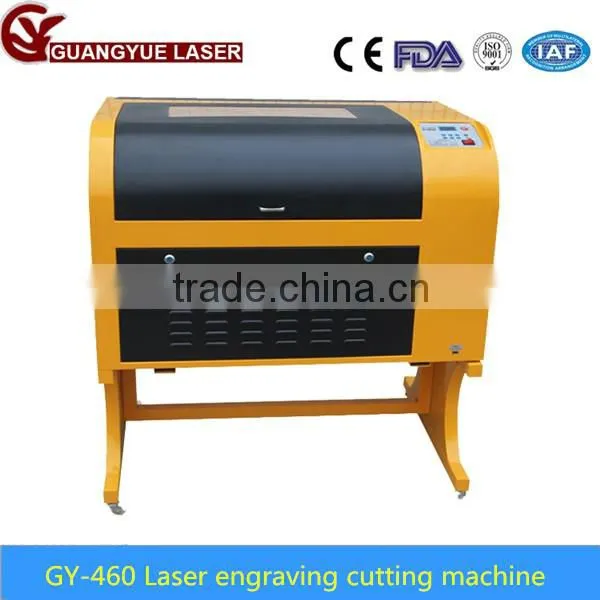

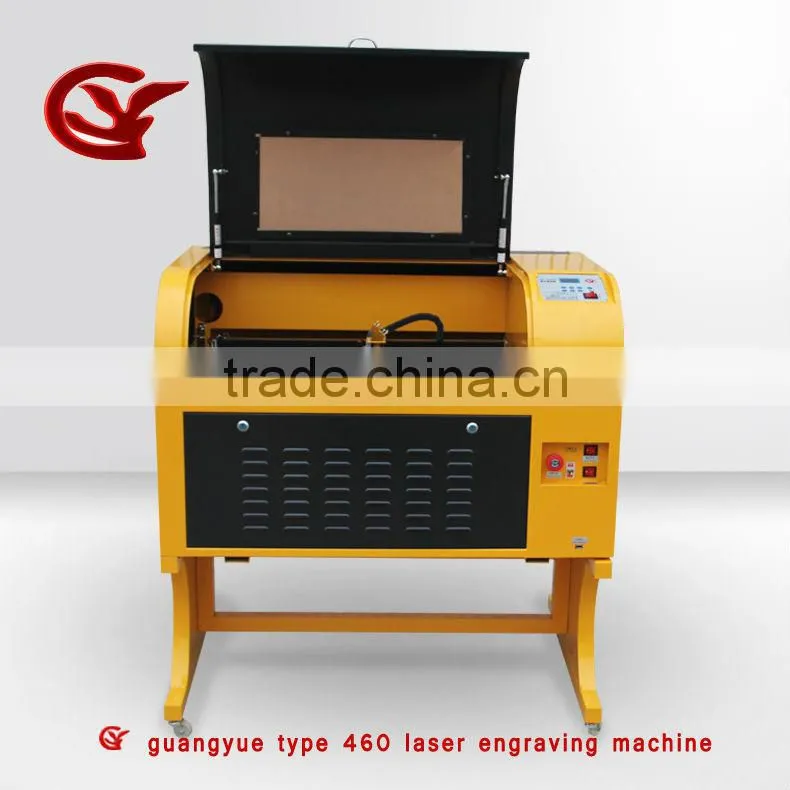

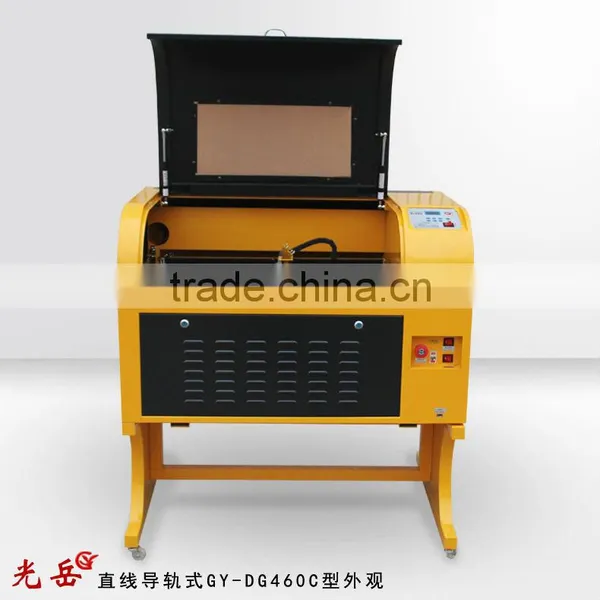

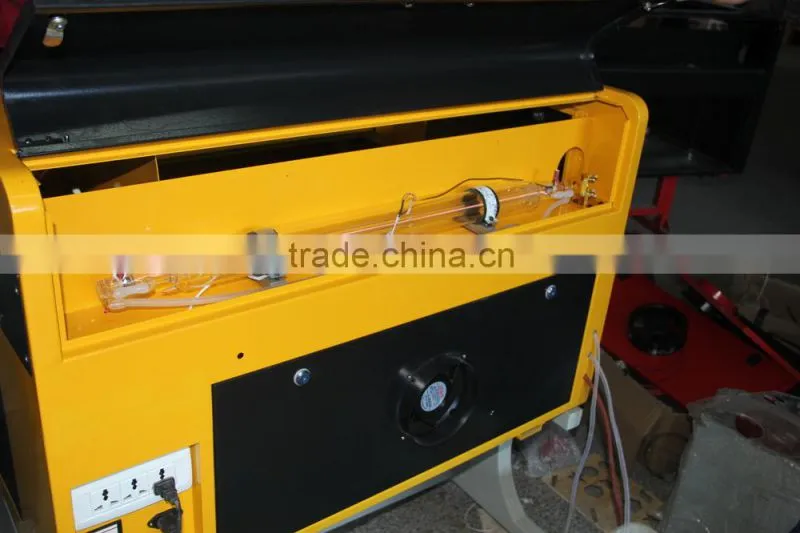

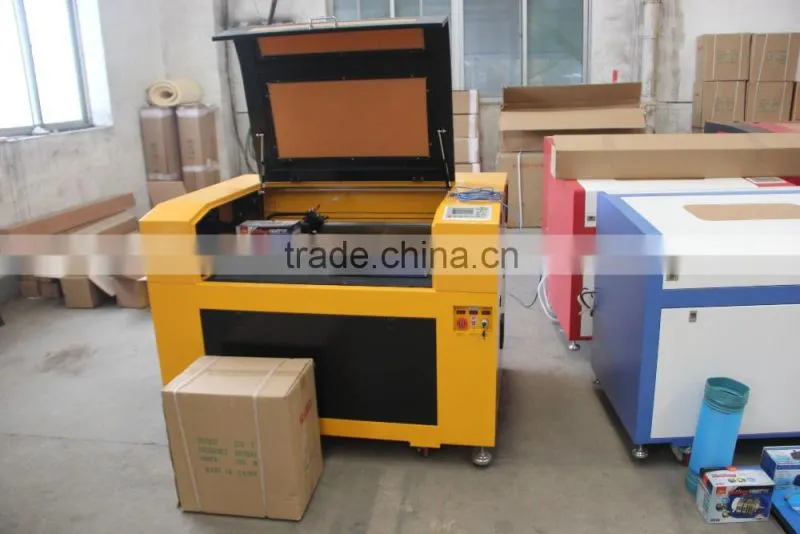

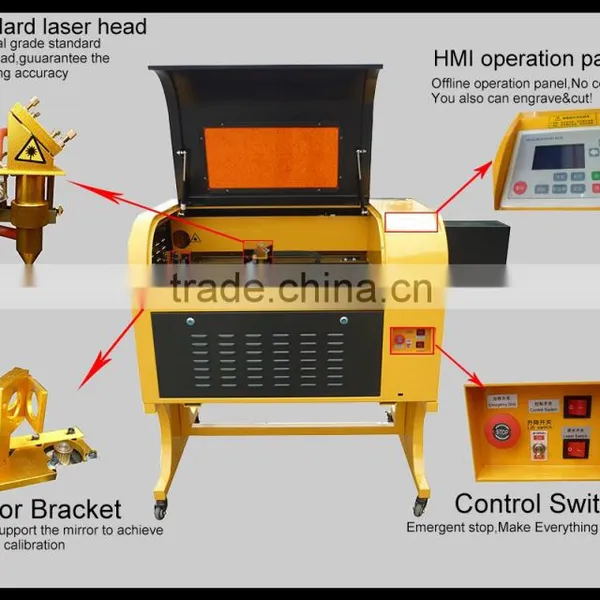

Photo of GY-460 Laser engraving machine

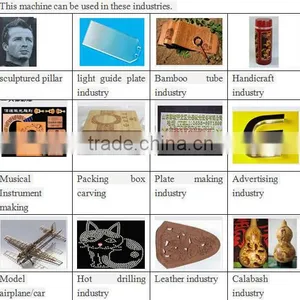

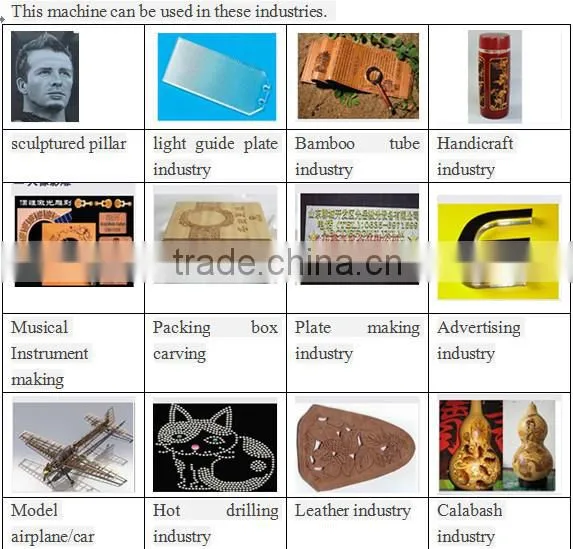

Application of Laser engraving&cutting machine
Application Industry:
Advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry, Vector Cutting, Raster Engraving, Signmaking, etc.
Application Materials:
Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass Acrylic, ABS Plastic, Carbon Composite, Cardboard, Cork, Mylar, Plastic and other nonmetal materials.
Packing Information
Our Certifications
After-sales service
1.This type of laser engraving machine is guaranteed for one year;consumable parts,as laser
tube and lens is for 3 months.Any other parts are provided as agent's price
2.Full English instructions and installation Videos
3.24hrs of phone,skype,Email& trademanager online service
4.All the machines has been adjusted before delivery
5.Professional technical team can support you the best technical guidance&meet your various requirments
6.OEM service availble as your orders
You can contact me anytime if you have any questions, I will solve the
problem for you within 12 hours.
Company View
Shandong GuangYue laser equipment CO., LTD. Was established in 2000,the geographical position is superior, the traffic is very convenient. Is the production of format laser cutting machine, massive surface laser cutting bed, laser engraving machine, laser seals machine, photosensitive seal machine and CO2 laser, focusing mirror, mirror and other professional laser equipment materials, a limited liability company. The company since its inception, has been committed to laser equipment development, production, sales and after-sales service work, is committed to high tech achievements transformation and laser industrialization development. The company has a group of 70, 80 high quality professional technical team and management team, covering optical, computer software and hardware, circuit design and mechanical structure design and other areas of talents.
