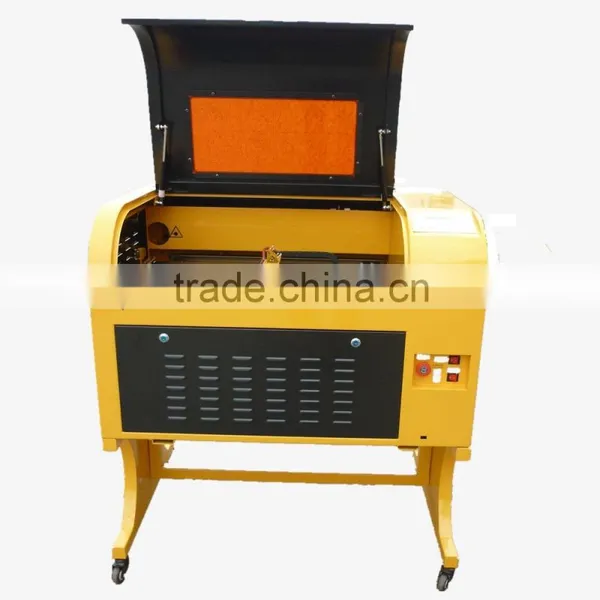

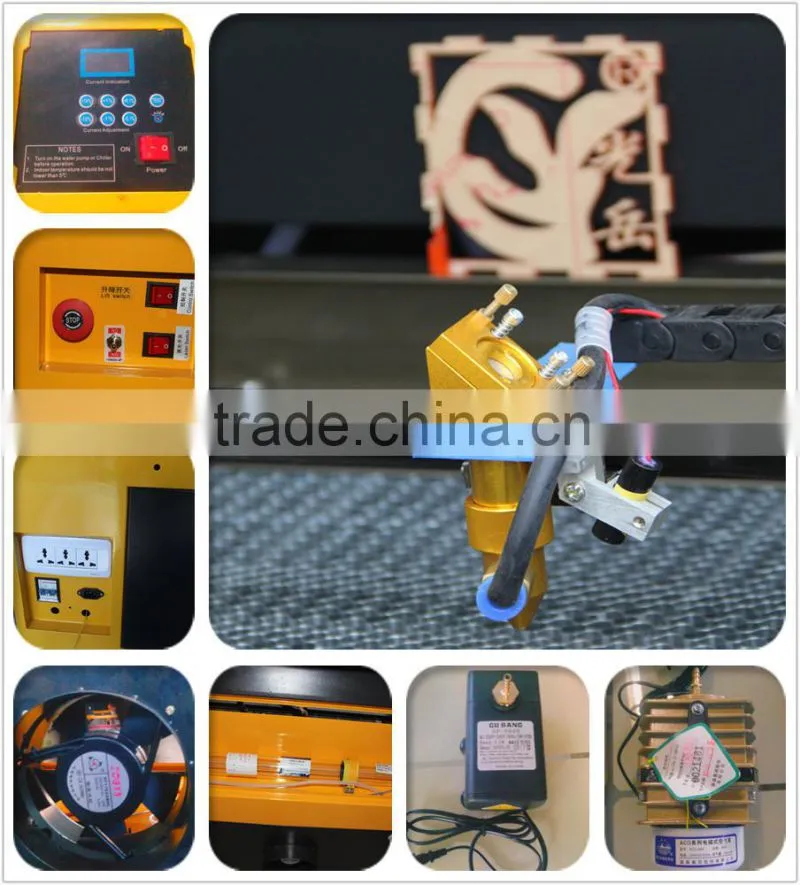

Specifications:
Model/Name |
GY-640 Laser Engraving Machine |
Working Table Size |
600 *400mm |

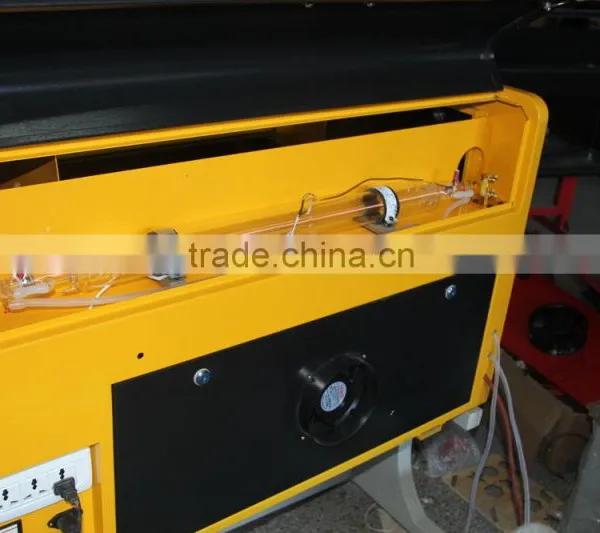

Laser Tube |
Sealed CO2 glass Tube |
Laser Power |
60W |
Cutting Speed |
0-36000mm/min |
Engraving Speed |
0-30,000mm/min |
Resolution |
±0.05mm /1000DPI |
Minimum Letter |
English 1×1mm (Chinese Characters 2*2mm) |
Support Fils |
BMP,HPGL,PLT,DST and AI |
Port |
USB 2.0 Plug and play |
Software |
CorelDraw (Direct Output) |
Motor |
Stepper |
Power Voltage |
AC 110-220V±10%,50-60Hz |
Working Environment |
0-45°C 5-95%(humidity) |
Power consumption |
<300W (Toal) |
Software compatible |
CorelDraw,AutoCAD,Photoshop |
Table type |
Aluminum |
Z-Axis Movement |
Automatic (0-300mm adjustable) |
Position system |
RED dot pointer |
Power Supply |
Water-cooled system |
Cutting thickness |
0-20mm (upon materials type and laser power) |
Rotary device |
φ10-150×300mm |
Packing Size |
122*80*78cm |
Gross Weight |
120kg |
1, The machines we supplied has 1year warranty, if some parts are broken when the machine is working nor mally during this period, we could exchange them with the new parts for free(excluding the lens and the laser tube). However, the lens and the laser tube have 3-month warranty.
2, The instructions are burned to a CD, it will be sent as the attachment with the machine.
3, If you have got some problems during the operation, please contact us immediately, our engineers will help you solve the problems. If necessary, we will send our dedicated engineer to your home to help you.
4,OEM is supported in our company, we have got 10-year experience in laser equipments, we believe that we could produce the machine with the best quality.
contact information:
skype: parker8035 tencent QQ: 3143688432 TEL: 0635-2929905 MOBILE: +8618264517675

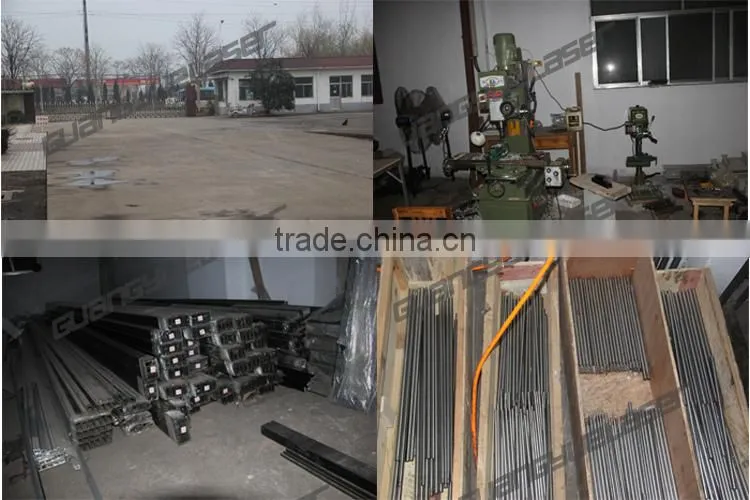

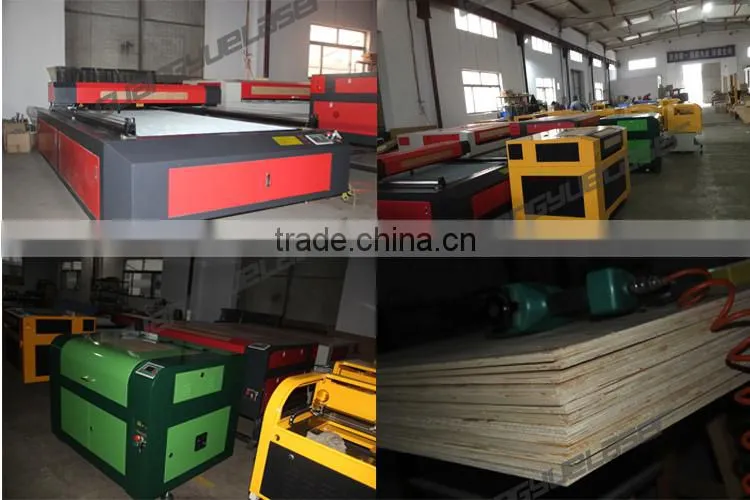

We are the manufacturer which supplies the laser machines. We supply laser engraving machine, laser cutting machine, laser cutting bed,
handicraft carving machine and laser fiber marking machine.
We have got 10--year experience in laser equipment.
Our products have been exported to 40 countries, including USA, Russia, Thailand, South Korea, South Africa, Turkey, Angola, Pakistan,
Netherland .etc.
We believe that the customers are first. And we also believe that we can provide you with the machines with good quality, resonable price and the first-class after-sale service.
1,Q;The machine is on,but no working. (Q=question, A=analysis, M=method)
A:1,check whether the machine is power on.
2.check whether mainboard parameters are right.
M:1,Repeat Pulling and plugging the connecting line.
2.Correct the parameter according to the software manual.
2,Q:It emits the light all the time when the machine is working.
A:Check whether the mainboard parameters are right.
M:Correct the laser device’s parameters according to the software manuaL.
3,Q:Starting and resetting are unnormal
A:Whether the mainboard parameters are right
M:Correct the reset polarity or the polarity of X-axis,Y-axis according to the software manual.
4,Q:The laser light is on and off when the machine is working.
A:1,whether the water-circulating system is good.
2, whether the voltage is steady
M:1,Clean the water tank and water pump, clear the pipe.
2,Add the voltage regulator.
5,Q:Computer sends data, but machine does not work.
A:1,check whether data sending port is correct.
2,whether turn on the machine.
3,check whether the grounding wire is connected well.
4,whether the driving software is installed.
M:1,Choose the correct port
2,Turn on the power supply
3,Connect the grounding wire well
4,Install USB driving software
6,Q:There is no laser during working
A:1,check whether the light path is skewing.
2,check the water-circulating system
M:1,Need to adjust the light path again.
2,To make sure it is not blocked
7,Q:No way to measure the laser equipment
A;Computer or USB communication is broken
M:Exchange computer or the USB wire
