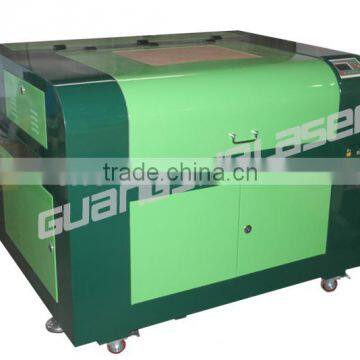

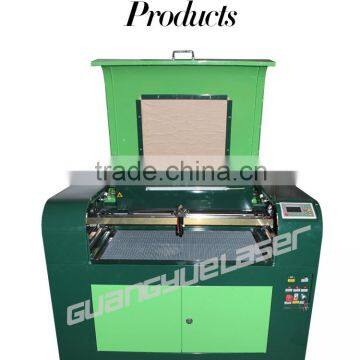

Help CenterHot Sale GY-690 Laser Cutting and Engraving Machine From China(mainland)
Related Products
-
CE and ISO 690 Laser Cutting and Engraving MachineNegotiableMOQ: 1 Set -
CE and ISO 690 Laser Cutting and Engraving Machine From China(mainland)NegotiableMOQ: 1 Set
-
GY 690 6090 CO2 Laser Cutting MachineUS$ 2,900 - 3,550MOQ: 1 Set
-
CE & ISO GY-4060 Laser Engraving and Cutting Machine From China(mainland)US$ 1,000 - 1,500MOQ: 1 Set
-
GY- 690 Laser Cutting and Engraving Machine From China(mainland) WITH CENegotiableMOQ: 1 Set
Specifications:
Model/Name |
GY-690 laser engraving machine |
Working Table Size |
600 *900mm |
Laser Tube |
Sealed CO2 glass Tube |
Laser Power |
60w/80w |
Cutting Speed |
800mm/s |
Engraving Speed |
1500mm/s |
Resolution |
±0.05mm /1000DPI |
Minimum Letter |
English 1×1mm (Chinese Characters 2*2mm) |
Support Fils |
BMP,HPGL,PLT,DST,DXF,CDR and AI |
Port |
USB 2.0 Plug and play |
Software |
CorelDraw (Direct Output) |

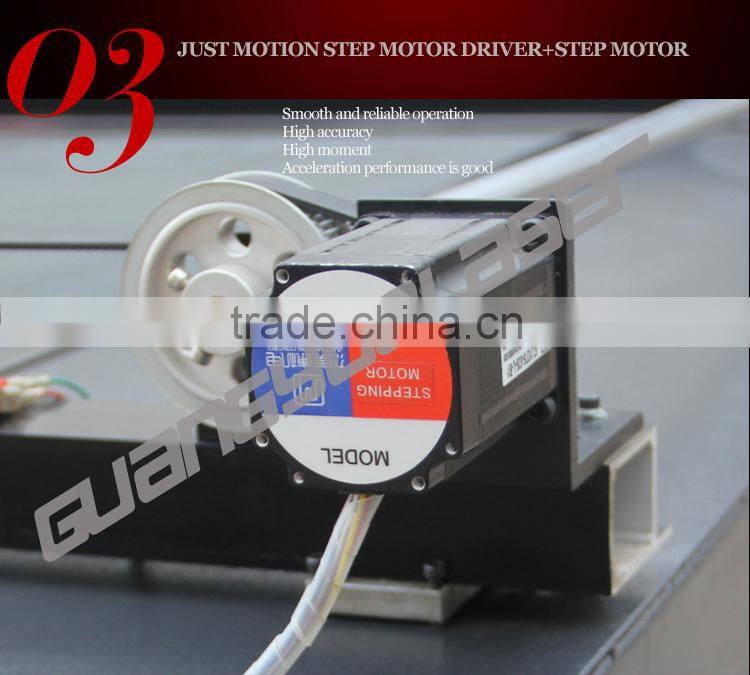

Motor |
Stepper |
Power Voltage |
220v 110v 50HZ |
Working Environment |
0-45°C 5-95%(humidity) |
Power consumption |
<600Toal) |
Software compatible |
CorelDraw,AutoCAD,Photoshop |
Table type |
Aluminum |
Z-Axis Movement |
Automatic (0-160mm ajustable ) |
Position system |
RED dot pointer |
Power Supply |
Water-cooled system |
Cutting thickness |
20mm (upon materials type) |
Rotary device |
φ10-150×300mm |
Packing-Size |
1360*1200*1200cm |
Gross Weight |
240kg |
1, Imported and factory direct sale slide way. The high accuracy and speed can be guaranteed.
2, The laser lens meets the industrial standard to make sure the engraving accuracy.
3,Water shortage protect system. It provides you with the 24-hour protect when the machien works in high load.

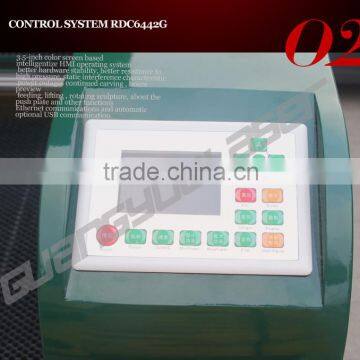

4,human-machine operation. It can engrave and cut without the laptop.
5, Electric lift, driving synchronous motor is adopted, incline; 0-500mm.

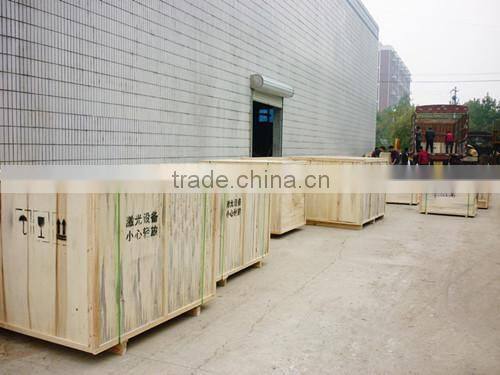

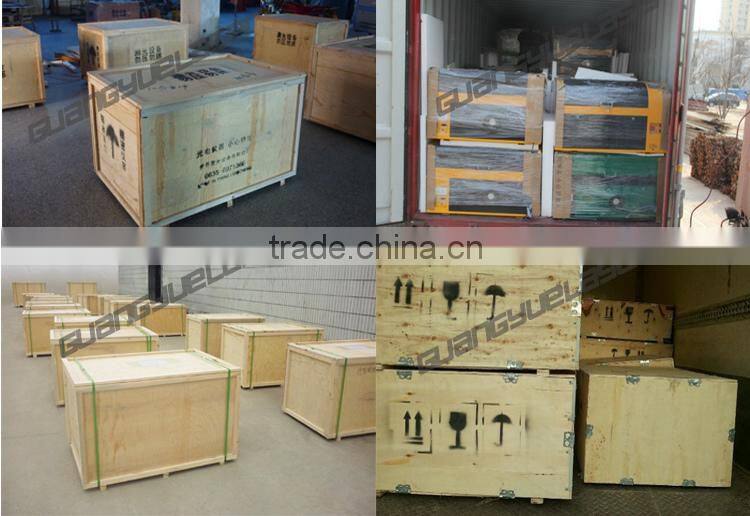

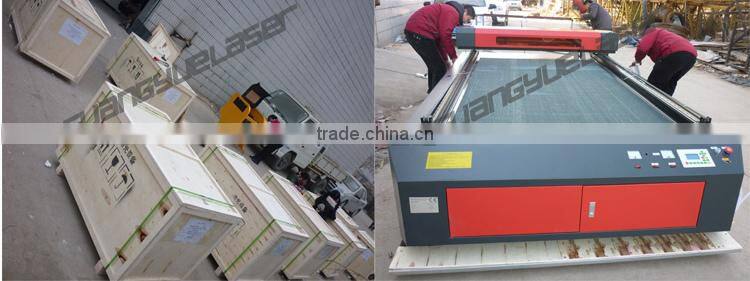

The standard wooden board with thickness 10mm,
The 10 cm thick foam board is put in. The box is fixed by STRAP.
We will try our best to reduce the risks during the shipping journey.
1, The machines we supplied has 1-year warranty, if some parts are broken when the machine is working normally during this period, we could exchange them with the new parts for free(excluding the lens and the laser tube). However, the lens and the laser tube have 3-month warranty.
2,The instructions are burned to a CD, it will be sent as the attachment with the machine.
3,If you have got some problems during the operation, please contact us immediately, our
engineers will help you solve the problems. If necessary, we will post our dedicated engineer to your home to help you.
4,OEM is supported in our company, we have got 10-year experience in laser equipments, we believe that we could produce the machine with the best quality.
We are the manufacturer who supplies the laser machines.
We supply laser engraving machine, laser cutting machine, laser cutting bed, handicraft carving machine and laser fiber marking machine.
We have got 10--year experience in laser equipment.
Our products have been exported to 40 countries, including USA, Russia, Thailand,
South Korea, South Africa, Turkey, Angola, Pakistan, Netherland .etc.
We believe that the customers are first. And we also believe that we can provide you with the machines with good quality, resonable price and the first-class after-sale service.
1,Q;The machine is on,but no working. (Q=question, A=analysis, M=method)
A:1,check whether the machine is power on.
2.check whether mainboard parameters are right.
M:1,Repeat Pulling and plugging the connecting line.
2.Correct the parameter according to the software manual.
2,Q:It emits the light all the time when the machine is working.
A :Check whether the mainboard parameters are right.
M:Correct the laser device’s parameters according to the software manuaL.
3,Q:Starting and resetting are unnormal
A:Whether the mainboard parameters are right
M:Correct the reset polarity or the polarity of X-axis,Y-axis according to the software manual.
4,Q:The laser light is on and off when the machine is working.
A:1,whether the water-circulating system is good.
2, whether the voltage is steady
M:1,Clean the water tank and water pump, clear the pipe.
2,Add the voltage regulator.
5,Q:Computer sends data, but machine does not work.
A:1,check whether data sending port is correct.
2,whether turn on the machine.
3,check whether the grounding wire is connected well.
4,whether the driving software is installed.
M:1,Choose the correct port
2,Turn on the power supply
3,Connect the grounding wire well
4,Install USB driving software
6,Q:There is no laser during working
A:1,check whether the light path is skewing.
2,check the water-circulating system
M:1,Need to adjust the light path again.
2,To make sure it is not blocked
7,Q:No way to measure the laser equipment
A;Computer or USB communication is broken
M:Exchange computer or the USB wire
Thank you for your attention and welcome to visit our company
