Hot sale GY 1390 laser engraving&cutting machine with lifting
DESCRIPTION
| Application of 1390 Laser Engraving&Cutting Machine |
|
The nonmetal materials like doublecolor board, organic glass,crystal, wood, paper, leather and rubber etc. The industries like advertising logomaking, crafts& gifts, crystal, relief sculpture, leather &cloth, embroidery and decoration. |

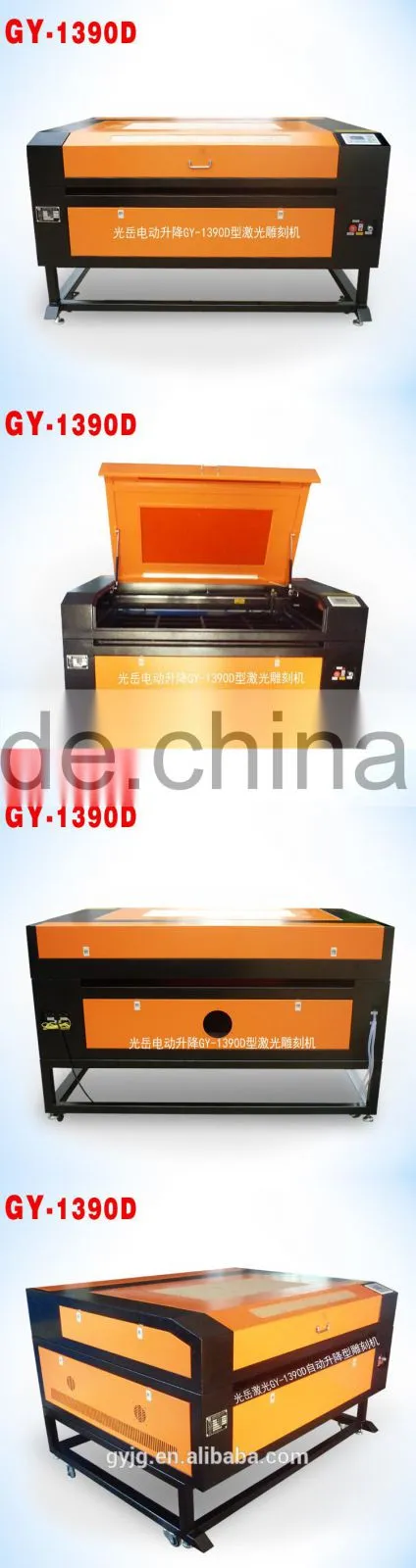

PICTURES FOR DETAILS
SPECIFICATION
| Model | GY 1390 laser engraving&cutting machine |
| Working Table Size | 1300 *900mm |
| Laser Tube | Sealed CO2 glass Tube |
| Working Table | Honeycomb/Aliuminium (optional) |
| Laser Power | 80W/100W/130W/150W |
| Cutting Speed | 500 mm/s |
| Engraving Speed | 1500mm/s |
| Resolution | ≤4500DPI |
| Minimum Letter | English 1×1mm (Chinese Characters 2*2mm) |
| Support Fils | AI,BMP,HPGL,PLT,DST and DXF files which CorelDraw, Photoshop, AutoCAD can identify |
| Port | USB 2.0 Plug and play(offline) |
| Software | TAJIMA , CorelDraw, AutoCAD, Photoshop |
| Motor | Stepper |
| Power Voltage | AC 110-220V±10%,50-60Hz |
| Working Environment | 0-45℃(temperature) 5-95%(humidity) |
| Power consumption | 1000-1500W (Total) |
| Controlling software | DSP control system |
| Cutting thinkness | 0-25mm(upon material & laser power) |
| Position system | Red-light pointer |
| Cooling way | Water cooling and protection system |
| Slope engraving | Yes, slope can be designed discretionarily |
| Color separation | Separation of cutting up to 256 colors |
| Packing Size | 1940*1580*1150mm |
| Gross Weight | 450kg |
| Material | Engraving | Cutting | Material | Engraving | Cutting | |
| Natural wood | √ | √ | Paper | √ | √ | |
| Acrylic | √ | √ | Mylar | √ | √ | |
| Glass | √ | X | Pressboard | √ | √ | |
| Double color plate | √ | √ | Rubber | √ | √ | |
| Bamboo | √ | X | Plywood | √ | √ | |
| MDF | √ | √ | Fiberglass | √ | √ | |
| Cloth | √ | √ | Painted metals | √ | √ | |
| Leather | √ | √ | Plastic | √ | √ | |
| Marble | √ | X | Ceramic | √ | X | |
| Matte boards | √ | √ | Coated metals | √ | X | |
| Stone | √ | X | Other materials | √ | √ |
| Laser power (W) | Acrylic(mm) | Plywood(mm) | MDF(mm) |
| 40W | 3 | 2 | 1.5 |
| 60W | 8 |
5 | 3 |
| 80W | 12 | 8 | 6 |
| 100W | 15 | 12 | 9 |
| 130W | 20 | 15 | 12 |
| 150W | 25 | 20 | 15 |
This machine can be used in which industry?
This machine can make which materials?
SOME OF SAMPLES SHOW
PACKAGING
COMPANY INFORMATION
SERVICE
1.This type of laser engraving machine is guaranteed for one year;consumable parts,as laser
tube and lens is for 3 months.Any other parts are provided as agent's price
2.Full English instructions and installation Videos
3.24hrs of phone,skype,Email& trademanager online service
4.All the machines has been adjusted before delivery
5.Professional technical team can support you the best technical guidance&meet your various requirments
6.OEM service availble as your orders
