Specifications
Smart and portable fiber marking machine 10W made in China1. Fiber laser marking machine
2. Imported core components

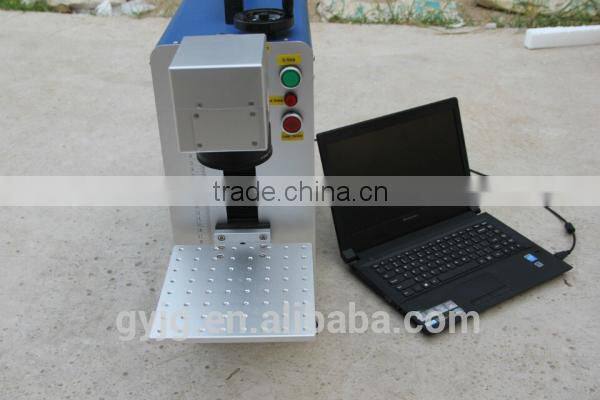

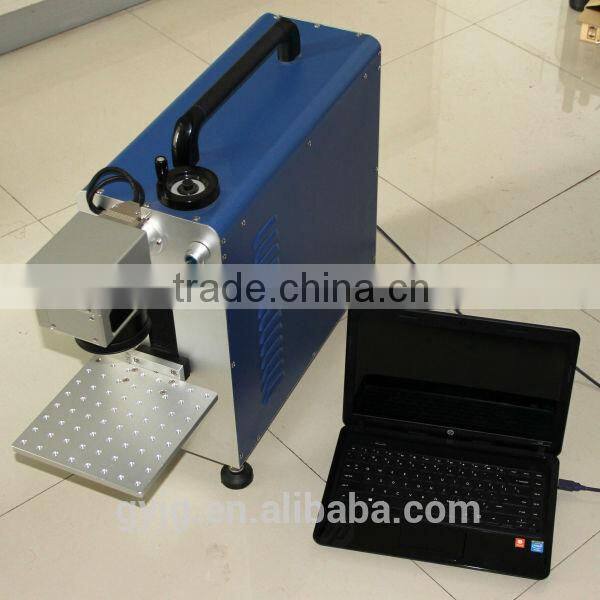

Smart and portable fiber marking machine 10W made in China
Introducation
Fiber laser marking machine is one of the most advanced laser marking equipment in the word nowadays,because of stable output power,great optical model,excellent quality of laser beam,fast marking speed and best marking effect and efficiency.Also,it is easy to operate ,has no consumption,low power consumption.More incomparable advantages like:better and thinner marking lines,capable of being applied into more advanced industries needing higher demand of depth,smoothness and precision,in order to perfectly meet requirments of consecutive woring in industries.
Features of laser marking machine
1. 100,000 hours lifetime, compact design.
2. High speed 7000/s

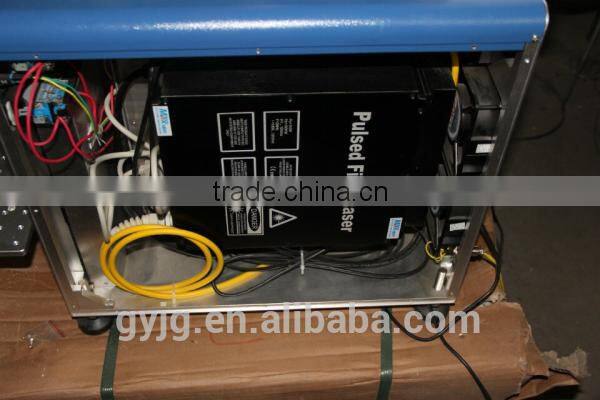

3.Mini metal laser engraver Adopting the imported original IPG fiber laser from Germany. Domestic source is optional.
4. Laser beam quality of metal laser engraver is much better than traditional solid laser marking machine.
5. Imported galvanometer scanning system which makes the optical model nice and beam quality is excellent. Also without any problem even marking fast.
6. Humanized design, easy to operate.
7. Processing speed is 3 or 5 times faster than traditional marker.
8.Laptop
Technical parameter:
| Model | GY Fiber laser marker |
| Mean laser power | 20W |
| Laser wavelength | 1064nm |
| Laser Repetition frequency | 20-100KHz |
| Marking area | 110×110mm |
| Marking size optional | 50x50mm,70x70mm,150x150mm,175x175mm,200x200mm |
| Marking depth | ≤0.8mm |
| Linear speed | ≤10000mm/s |
| Min. line width | 0.01mm |
| Min. letter | 0.2mm |
| Repeatability | ±0.002mm |
| Supported format | Support AI,PLT, DXF, BMP,JPG file, etc. |
| Power supply | AC220V±10%/50Hz-60Hz, AC110V optional. |
| Power consumption | 0.8KW |

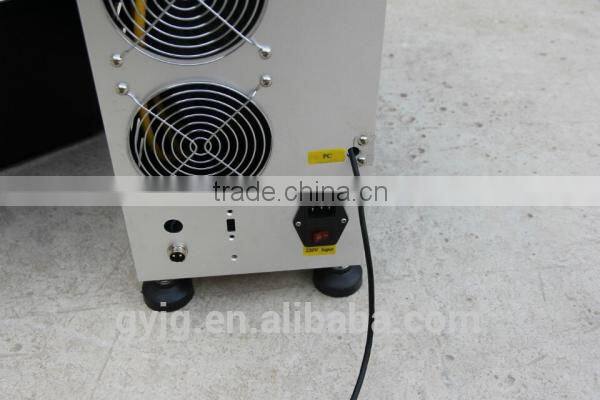

| Laser cooling | Air cooling |
Packing information:
Machine Size: 700x 550x 700mm
Package Size: 880x 630x 800mm
Net Weight: 30kg around
Gross Weight: 45kgs
Delivery Time: 2-3 weeks
Transportation: BY SEA, AIRLINE
Applicable Materials
It is widely used in industrial bearings, gears, all kinds of auto parts, hardware tools, aerospace components,
integrated circuit chips, computer accessories, watches, electronics and communication products, home
appliances,wire and cable, food packaging, jewelry, tobacco and many graphic and text markings in other fields.
Applicable Industries
Gold, silver, copper, aluminum, stainless steel, hard alloy,chrome, titanium and other metals materials.
