Home > Products > New Products > Durable Grinding Media Mill Ball
Durable Grinding Media Mill Ball
- 100 Ton / Tons per Month
- Qingdao Lianyungang
- T/T D/P D/A Credit Card
Product Details
| Condition: | New | Type: | Ball Mill | Motor Type: | AC Motor |
| Place of Origin: | Henan, China | Brand Name: | TengFei | Weight: | 0.11 kg/pc |
| Certification: | ISO ,CE | Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Mill Ball1. High hardness:60-65HRC
2. No breakage
3. Even wearing
4. Good Abrasive Resistance

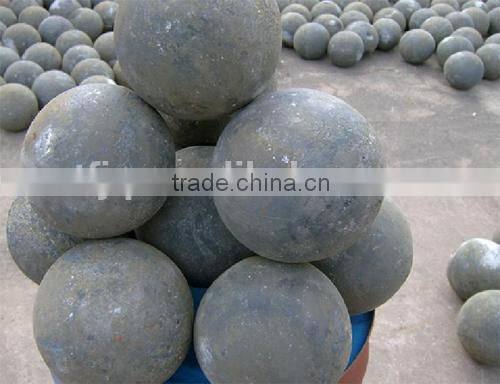

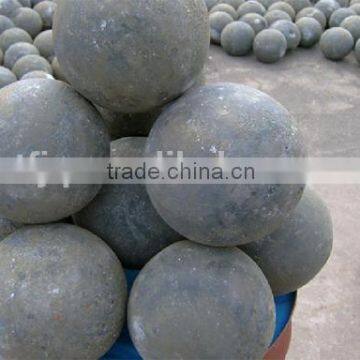

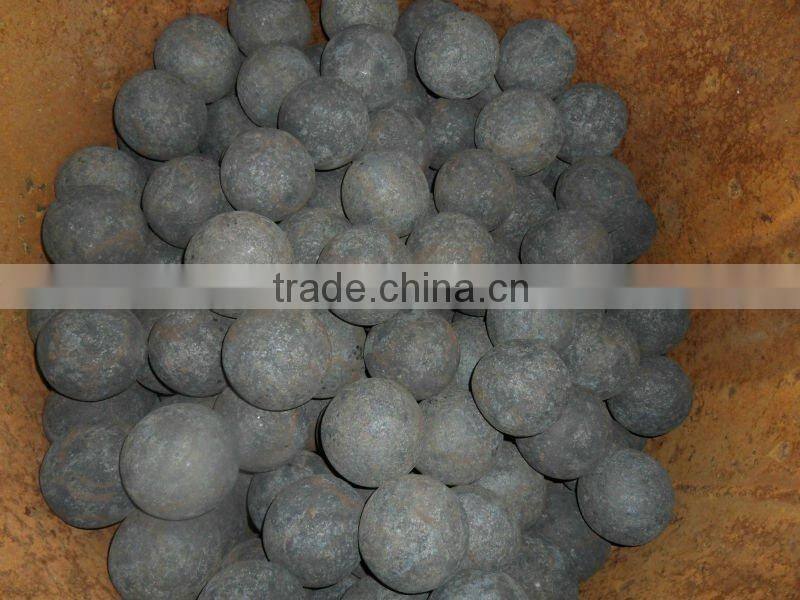

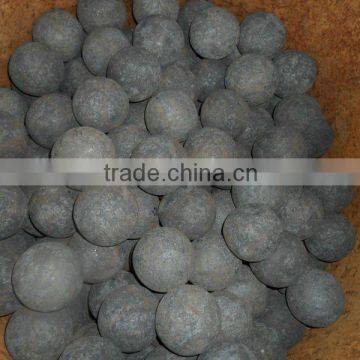

Durable Grinding Media Mill Ball
FORGED STEEL GRINDING MEDIA BALLS:
Product Performance:
- Even Hardness,High Roundness,
- Unbreakable
- High Combined Effciency of Grinding Mill
- High Impact Value
- Grinding Resistant
- It is resistant to abrasion and won't deform and crack.
- Low breakage rate.
Application:
- Mine
- Grinding Coal In Power Plant.
- Cement Plant
- We serve the global mining industry

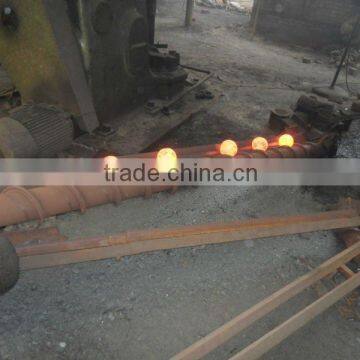

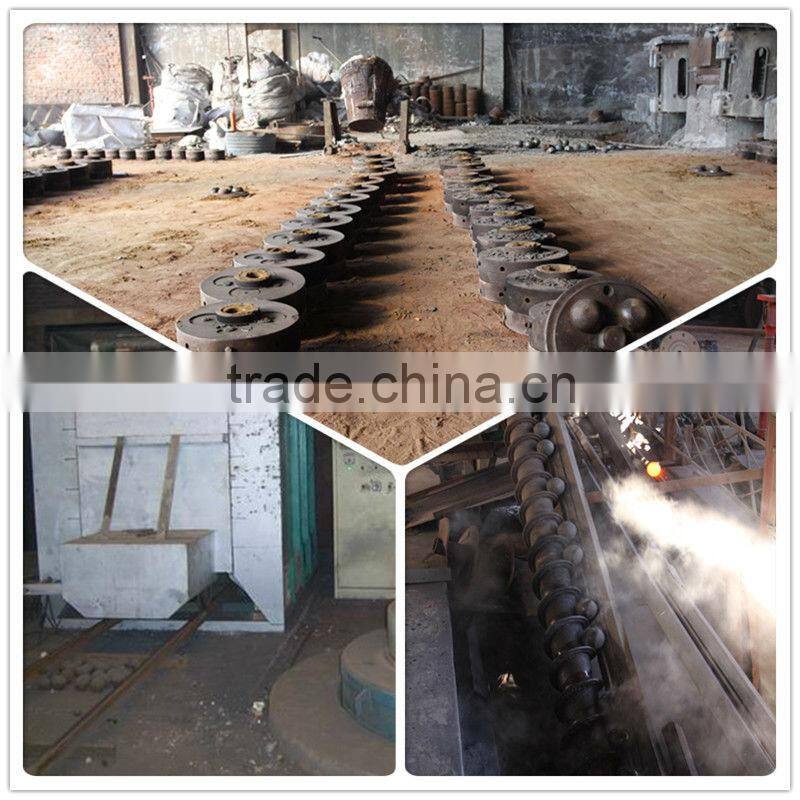

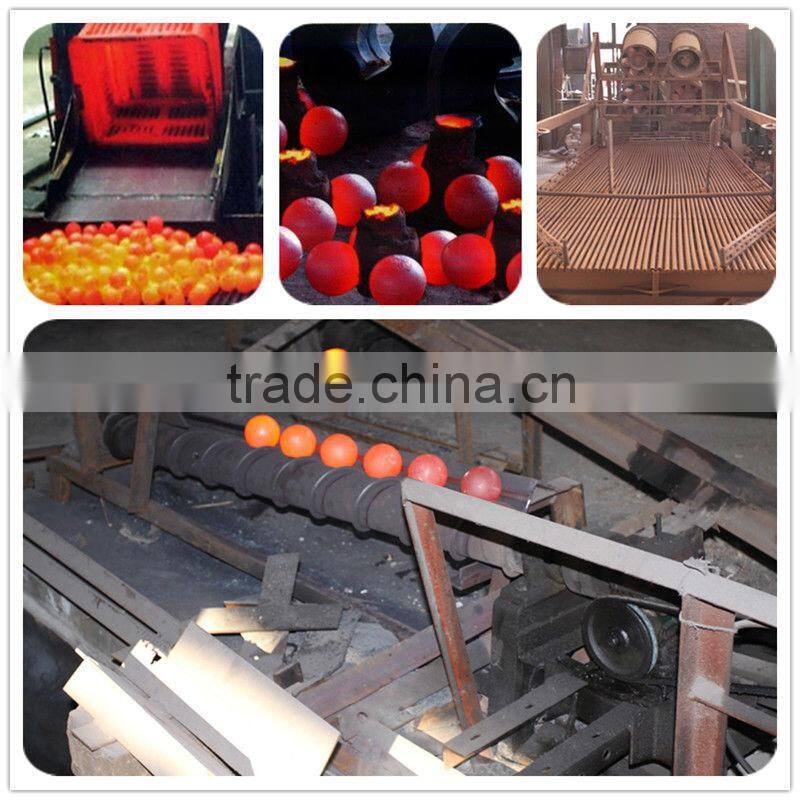

The Process Line Of Production:
Raw Material → Cutting → Stove → Forging → Transfer Machine → Quenching
↓
Transportation ← Packing ← Hardness Test ← Dimension Test ← Heat Treatment
Details of Mill Ball:
high chrome grinding Ball Chemical Elements
Name | Chemical Elements (%) | |||||||
C | Si | Mn | Cr | Mo | Cu | P | S | |
Low Cr Balls | 2.2-2.5 | ≤1.2 | 0.5-1 | 0.8-1.8 | 0.6-1 | ≤1 | ≤0.05 | ≤0.05 |
Middle Cr Balls | 2.2-3.3 | ≤1.2 | 0.5-1 | 3-6 | 0.6-1 | ≤1 | ≤0.05 | ≤0.05 |
Normal High Cr | 1.6-3.3 | ≤1.0 | 0.5-1 | 10-13 | 0.8-1 | ≤0.6 | ≤0.05 | ≤0.05 |
Special High Cr | 2.0-3.3 | ≤1.o | 2.1-3 | 15-23 | 0.8-1 | ≤0.6 | ≤0.05 | ≤0.05 |
high chrome grinding Ball Physical Property & Microstructure
Name | HRC | Ak(J/cm2) | Microstructure | Times of Falling Balls | |
Low Cr Balls | ≥45 | ≥1.6 | P+C | ≥10000 | |
Middle Cr Balls | ≥48 | ≥2.0 | P+C | ≤Φ80 | ≥15000 |
≥Φ80 | ≥10000 | ||||
Normal High Cr | ≥56 | ≥2.5 | M+C+A | ≤Φ80 | ≥15000 |
≥Φ80 | ≥10000 | ||||
high chrome grinding Ball Size & Weight
Size(mm) | Weight(kg/pc) | Quantity(pc/t) |
| Size(mm) | Weight(kg/pc) | Quantity(pc/t) |
Φ30 | 0.11 | 9091 | Φ90 | 2.90 | 345 | |
Φ40 | 0.25 | 3891 | Φ100 | 4.00 | 250 | |
Φ50 | 0.50 | 2000 | Φ110 | 5.30 | 188 | |
Φ60 | 0.86 | 1153 | Φ120 | 6.80 | 147 | |
Φ70 | 1.37 | 729 | Φ130 | 7.70 | 129 | |
Φ80 | 2.05 | 487 | Φ140 | 8.74 | 114 |

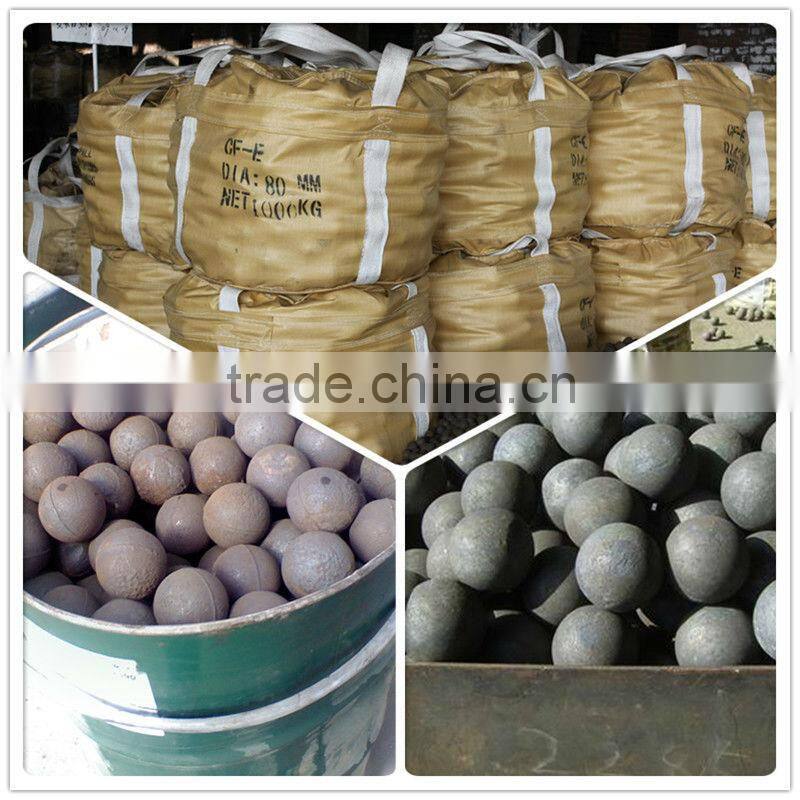

Container Bags: Dia20mm-Dia150mm 1000Kgs/Container Bag (GWt:1002Kgs)
Steel Drums: Dia20mm-Dia80mm 900Kgs/Drum (GW: 915Kgs) Dia90mm-Dia150mm 850Kgs/Drum (GW: 865Kg )
