Glass Bottle Production Line

Glass Bottle Production Line photo-1
US$ 50,000 - 128,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Stone Crushing Line
Application:
Crushing stone as aggregate for construction.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai etc
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Stone Crushing Line
Application Crushing stone as aggregate for construction.
Motor Type AC Motor
Power(W) 248 KW
Capacity(t/h) 100-150
Place of Origin Henan, China
Brand Name TENGFEI
Model Number PF, PE, GZD, YZS
Dimension(L*W*H) Refer to the technical table
Weight Refer to the technical table
Certification ISO, CE, SGS,
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Glass Bottle Production Line
1. Crush soft or medium hard stone
2. High Quality
3. Non-key Connection

Glass Bottle Production Line

        TENGFEI QUALITY

Henan Teng Fei Machine Manufacturing Co., Ltd. is a professional machine mining manufacturer with decades of years' experience. Our mainproduct are Grinding Mill, Raymond Mill, Superfine Grinder, Crushers, Dryer, Ball Mill, Sand making&washing machines,Stone Production Line, Vibrating screens, etc .

Glass Bottle Production Line



Product Description

Glass Bottle Production Line

  • Production Line is used to crush soft or medium hard stone (like: limestone, gypsum, marble, calcite, dolomite, etc) from <500mm down to about 0-5, 5-10, 10-20, 20-40mm (or other sizes according to your need) as aggregate for construction.
  • With it, TENGFEI can provide you the well-shaped cubic final products, with low energy consumption, low cost, easy maintenance, and high efficiency.
Glass Bottle Production Line




Specifications of Glass Bottle Production Line

NO.

Equipment

Model

Max. Feeding Size (mm)

Motor(KW)

Number

1

Vibrating Feeder

GZD960X3800

500

11

1

2

Jaw Crusher

PE600x900

500

75

1

3



Impact Crusher

PF1214

300

132

1

4

Vibrating Screen

4YZS1860

100

30

1

  Belt:B500×10m, B800×18m, B800×26m, B500×27m, B500×15m, B500×15m, B500×15m, B500×15m



Glass Bottle Production Line

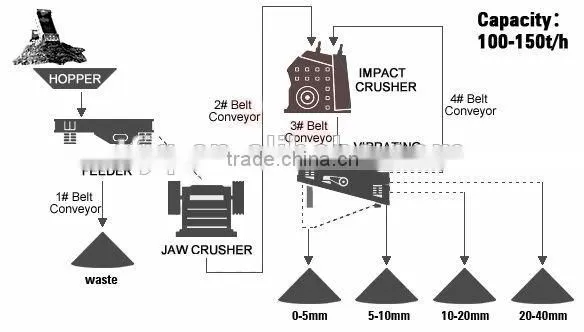

TENGFEI is going to equip you a solution as the following:

Vibrating feeder GZD960X3800 feed the stone evenly and smoothly into the jaw crusher PE600X900, which will crush the stone from <500mm down to about 100mm as the primary crusher. Then belt conveyor will take the outputs of PE600X900 into the secondary crusher – impact crusher PF1214, to get further crushed down to about 40mm (or other sizes as the customer wanted), then the outputs of PF1214 will be carried to vibrating screen 4YZS1860, to get separated into 5 kinds: 0-5, 5-10, 10-20, 20-40, and >40mm. Then >40mm will be carried back to 4YZS1860 for re-crushing, while 0-5, 5-10, 10-20, 20-40mm goes out into piles as final products.



Related Machines of Glass Bottle Production Line

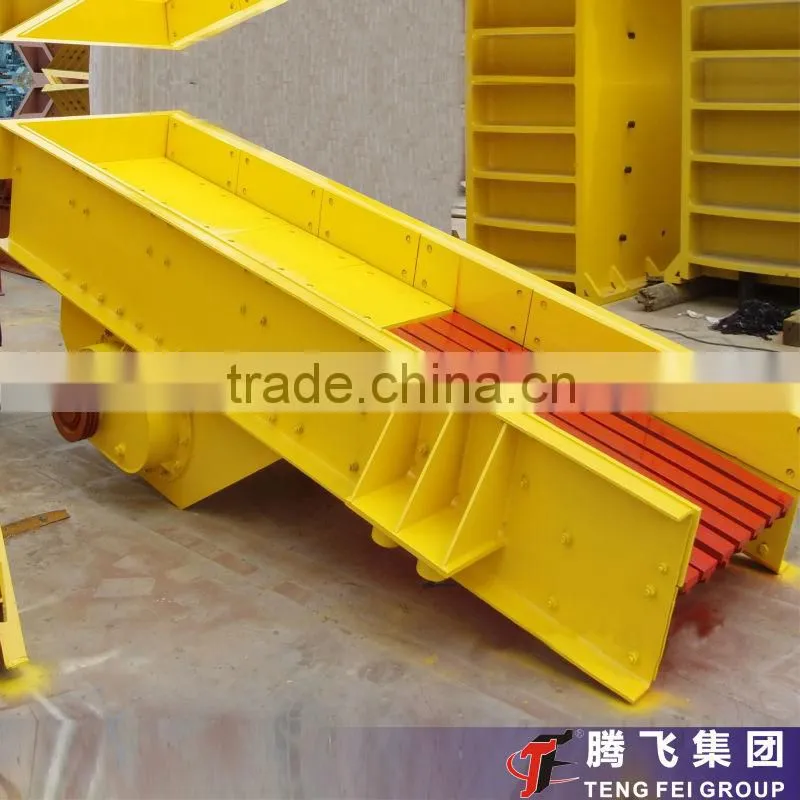

Vibrating Feeder

Glass Bottle Production Line

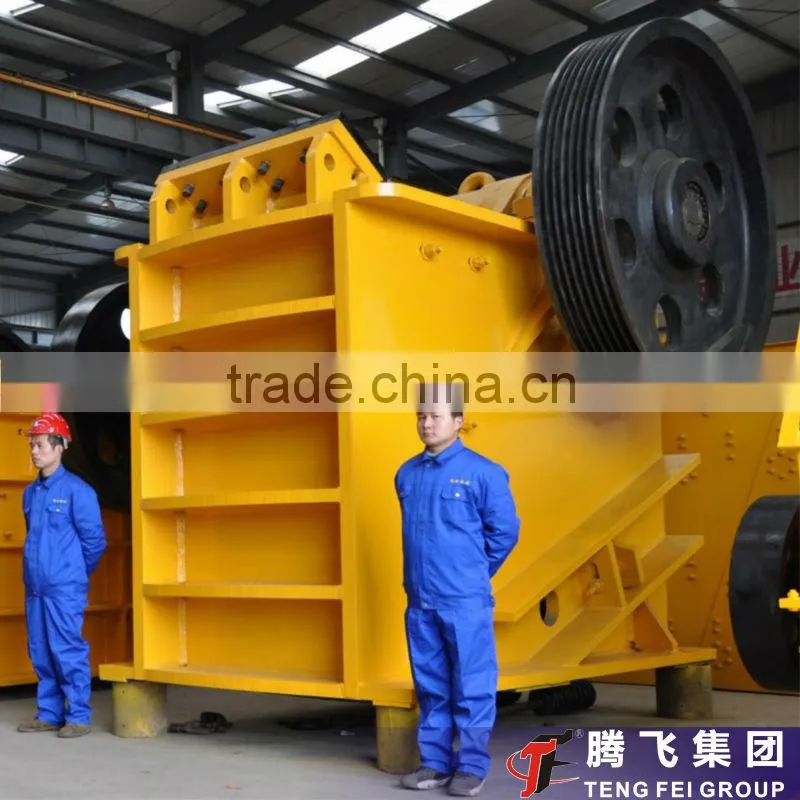

Jaw Crusher

Glass Bottle Production Line

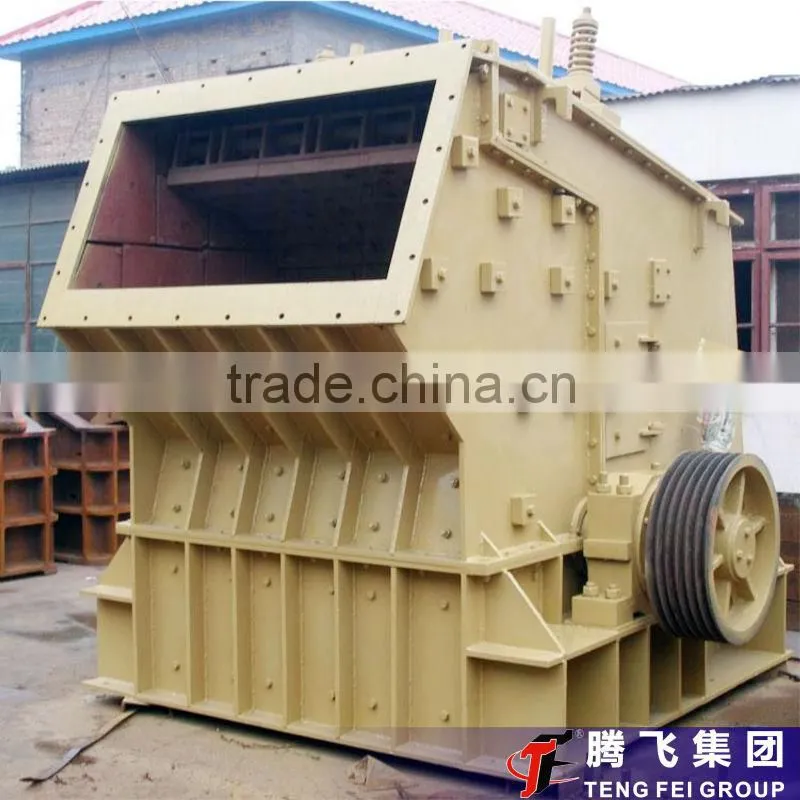

Impact Crusher

Glass Bottle Production Line

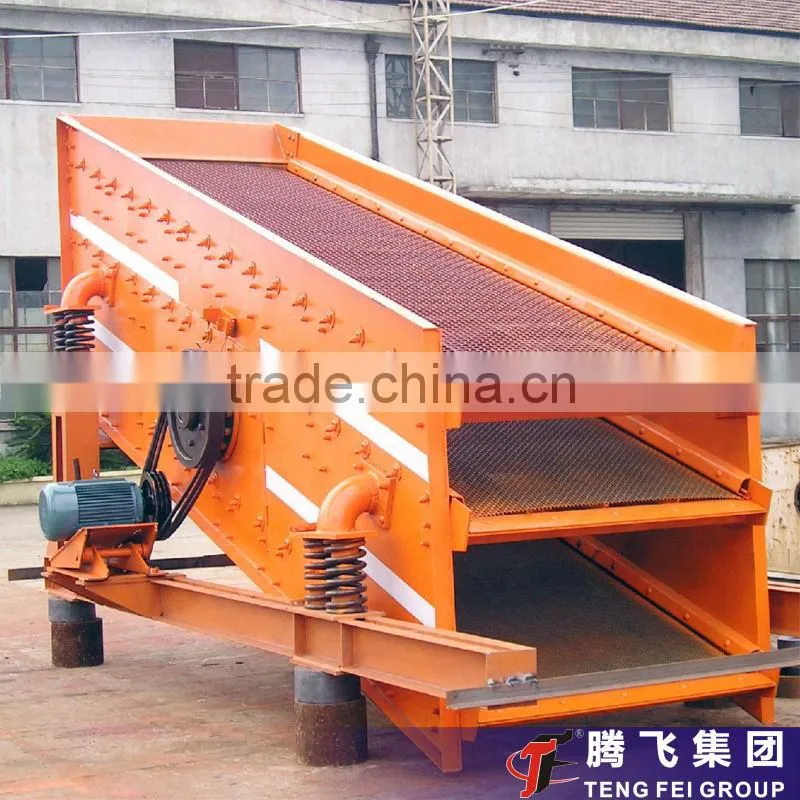

Vibrating Screen

Glass Bottle Production Line

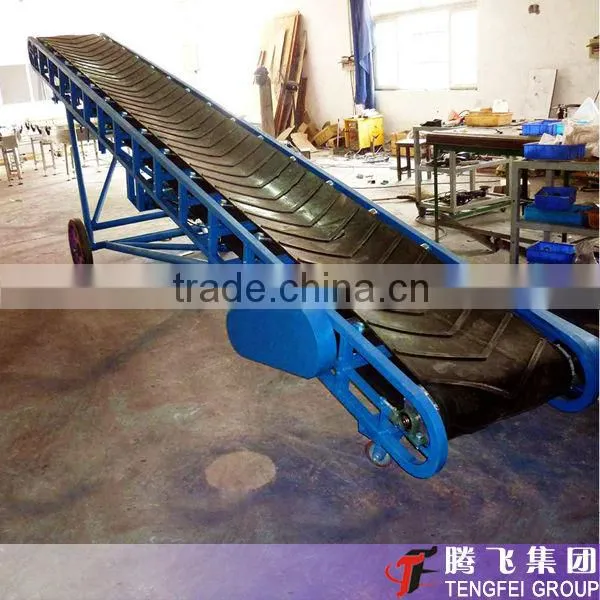

Belt Conveyor

Glass Bottle Production Line
