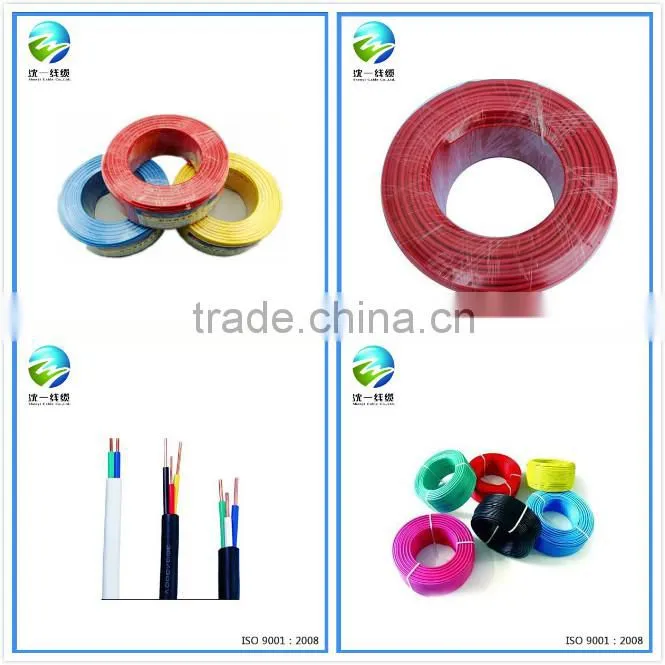

Flexible wire cable, electrical cable wire 3mm
1.standards
The Products are mainly complying with IEC 60502 standard, also can be produced according to OEM requirements and others standars, Such as BS Standard, DIN standard, ASTM standard PVC 450/750V 35mm2 copper electrical cable , ETC.
2. voltage
Cable Introduction:
Standard: BS6004 / IEC227
GB 5023.11997 , JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997, IEC60227
2) Rated Voltages :
300/500V 450/750V (600/1000V also available)
3) Application
The products is suitable for use in power installations, fixed wiring or flexibleconnections for electrical
appliance like lighting, electronic equipment, instrument and communication equipment with rated
voltage 450/750V or less!
| Nominal sectional area mm2 |
Conductor No/Dia. mm |
Nominal Insulated thick mm |
Max overall Dia. mm |
Condcutor Resistance at 20 |
Min insulated resistance at 70MΩ/km |
Weight Kg/km |
||
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
| 16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 500.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
Voltage grade is up to 220KV,
3. construction
copper or aluminum conductor
copper tape sheild
XLPE insulated
steel wire or steel tape or copper tape armoured
PVC sheath
4.Service conditions
long-time operating temperature is 90 degrees.
In short circuit, conductor highest temperature should be not more than 250 Degrees.
5. Laying conditions
For laying under ground with large different altitude,be able to bear external machanical force and moderate pulling force.
Shenyi Wire & Cable Co.,Ltd(The original Shenyang Crosslinking Cable Factory one branch plant)Founded in October 1993 which is Located In Tianbao west street north Industry clusters Xicheng Area Ningjin County,Hebei Province,It cover an area of more than 50000 square meters,Fixed assets of 88 million Yuan,The registered capital of 10088 million Yuan,with more than 180 employees.
Production Line
As one of top rank cables manufacturers in China, our factory is mainly specialized in PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable and Welding Cables. All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR).
