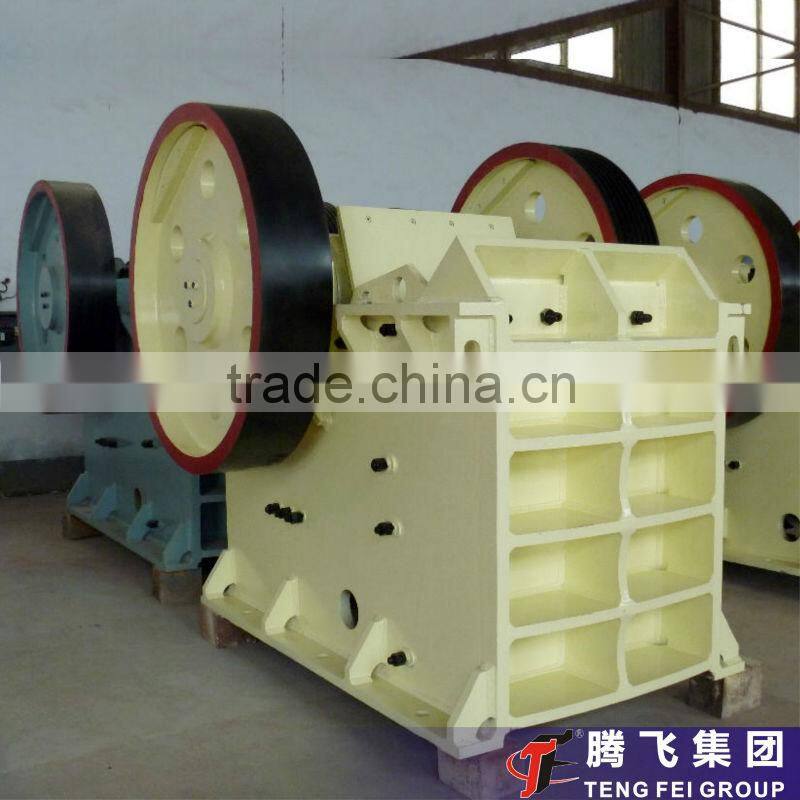

High Capacity Mining Jaw Crusher, Mineral Mining Jaw Crusher

High Capacity Mining Jaw Crusher, Mineral Mining Jaw Crusher thumbnail-1
High Capacity Mining Jaw Crusher, Mineral Mining Jaw Crusher photo-1
US$ 5,258 - 98,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Jaw Crusher
Application:
Mining, metallurgy, construction, highway, railroad, etc.
Contact Supplier Request Quote Chat Now
Henan Teng Fei Machine Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Lianyungang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Jaw Crusher
Application Mining, metallurgy, construction, highway, railroad, etc.
Motor Type AC Motor
Power(W) 55kw
Capacity(t/h) 50-100t/h
Place of Origin Henan, China
Brand Name TengFei
Model Number PE500x750
Dimension(L*W*H) 2035 x 1921x 2000mm
Weight 10.3 tons
Certification ISO, CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

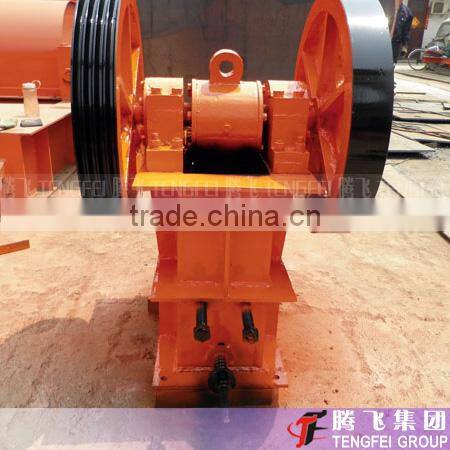

High capacity mining jaw crusher, mineral mining jaw crusher

 High capacity mining jaw crusher, mineral mining jaw crusher
Product Description
  • Type

Primary Crusher Input Size: 200-1200 mm

  • Processed Materials

Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, minerals, quartz, diabase, etc.

  • Applications

Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.



High capacity mining jaw crusher, mineral mining jaw crusher



 Overview

  • Rock Crusher are typically used as primary crushers, or the first step in the process of reducing rock. They typically crush using compression.
  • The rock is dropped between two rigid pieces of metal, one of which then move inwards towards the rock, and the rock is crushed because it has a lower breaking point than the opposing metal piece. So, the compression strength of the crushing materials cannot exceed 320 Mpa.
  • Jaw crusher movement is obtained by using a pivot point located at one end of the “swing jaw”, and an eccentric motion located at the opposite end.



 Technical parameters





Model

Max. Feeding Size (mm)

Adjustable Discharge opening (mm)

Capacity (t/h)

Motor Power (kW)

Overall Dimensions (mm)

Weight (t)

PE250×400

200

20-60

5-20

15

1150×1275×1240

2.8

PE250x1000

210

15-50

15-50

30

2790x2670x1380

6.5

PE400×600

350

40-100

15-60

30

1700×1732×1653

6.5

PE500×750

425

50-100

50-100

55

2035×1921×2000

10.3

PE600×900

500

65-160

60-130

75

2290×2206×2370

15.5

PE750×1060

630

80-140

110-250

110

2620×2302×3110

26.7

PE900×1200

750

100-200

160-380

130

3789×2826×3025

51

PE1000×1200

850

200-300

315-550

130

3889×2826×3025

56

PE1200×1500

1020

150-350

400-800

200

4200×3750×3820

88









  Note:Any change of technical data shall not be advised additionally.

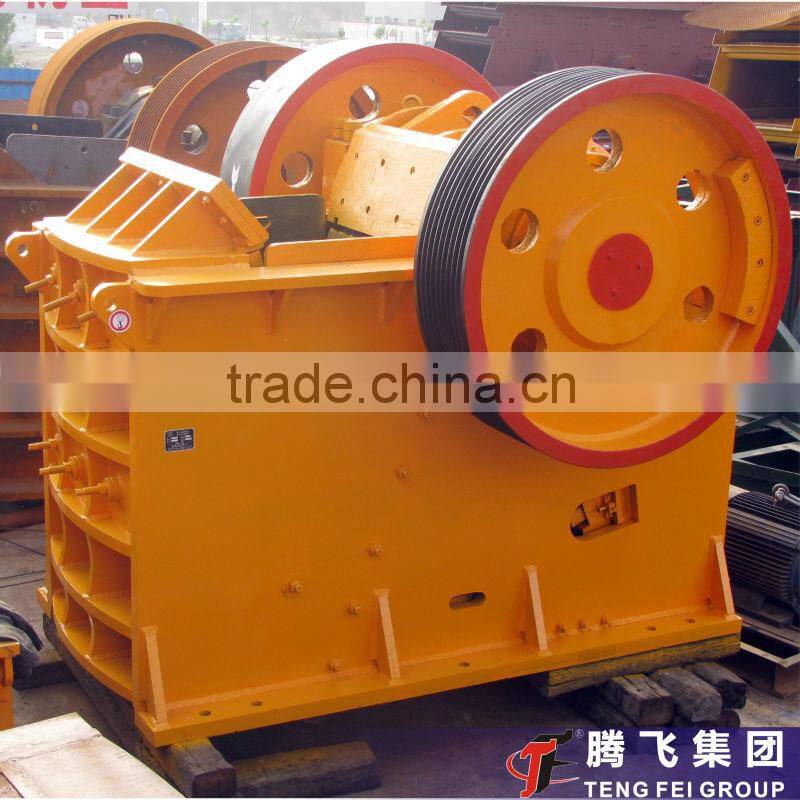

 High capacity mining jaw crusher, mineral mining jaw crusher







Features of the Jaw Crusher

  • High ratio of crushing
  • Even final size
  • Simple structure
  • Reliable working condition
  • Easy maintenance
  • Low operating cost

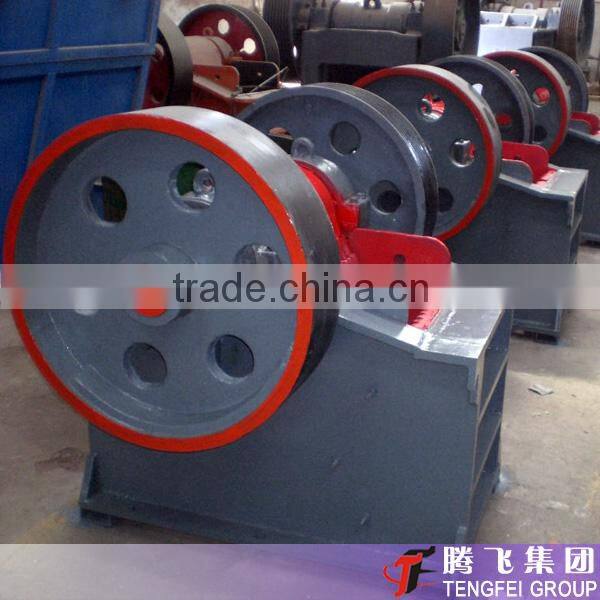

High capacity mining jaw crusher, mineral mining jaw crusher









 Principle

  • The motor transmits power through the belt pulley and drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.
  • The angle between toggle plate and moving jaw plate increases when moving jaw moves upwards. So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process.
  • The angle between toggle plate and moving jaw decreases when moving jaw moves downwards and the moving jaw leaves fixed jaw under the effect of the pulling rod and spring.
  • The final crushed stuff will be discharged from the outlet.



 Related spares

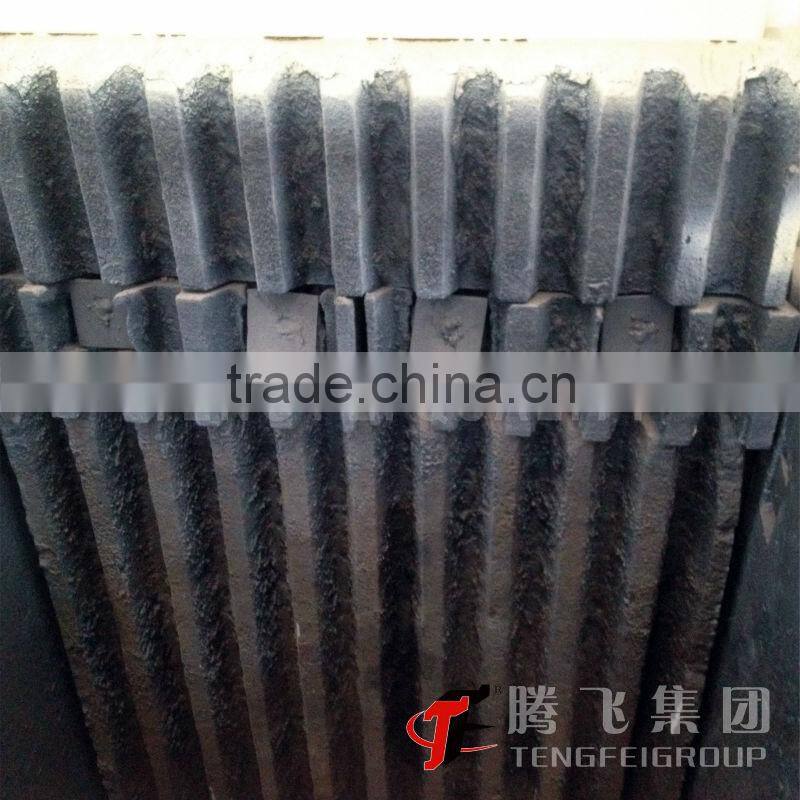

Jaw Plate:

High capacity mining jaw crusher, mineral mining jaw crusher









Our Factory



Henan Teng Fei Machine Manufacturing Co., Ltd. is a professional mining machine manufacturer with decades of years' experience. Our main product are grinding mills, Crushers,Dryer,Ball Mill, Sand making&washing machines, vibrating screens, etc.

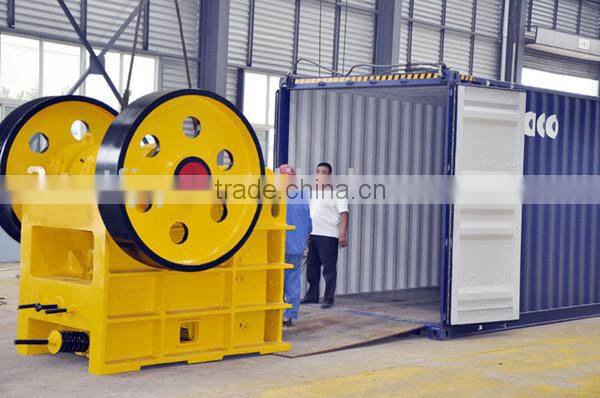

Waiting for the packing of the Rock Crusher   :

High capacity mining jaw crusher, mineral mining jaw crusher

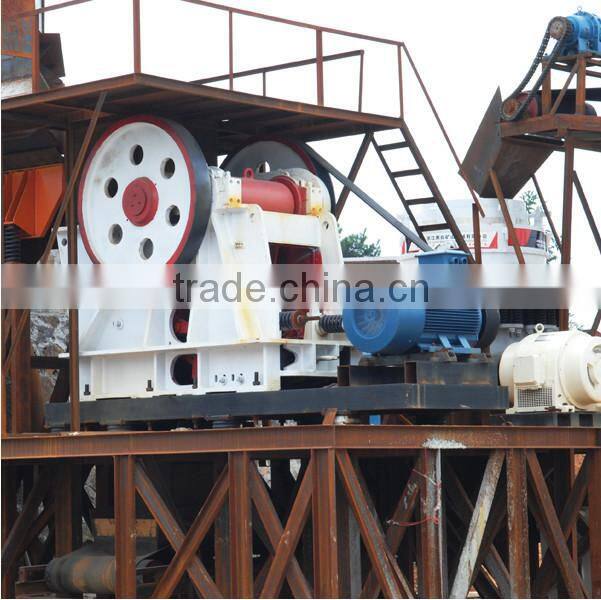

The production line :





         High capacity mining jaw crusher, mineral mining jaw crusherHigh capacity mining jaw crusher, mineral mining jaw crusher
