PF series impact crusher / impact crusher rock crushing plant

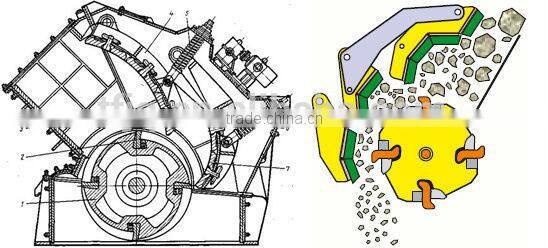

Working Principle of Rock Crusher
Rock crusher crushes materials by striking energy. When it works, the motor drives the rotor rotate at a high speed, on which the blow bar is installed.
As soon as the materials get into the affecting area of the blow bar, they will be stricken by the blow bar and be thrown to the impact devices around the rotor.
The high speed forces the material to rebound from the impact liner to the affecting area of the blow bar until they have been crushed to the required size.
The clearance between the impact rack and the rotor can be adjusted to change the size and shape of the end product.
- Type: Rock Crusher
- Input Size: 200-1200m

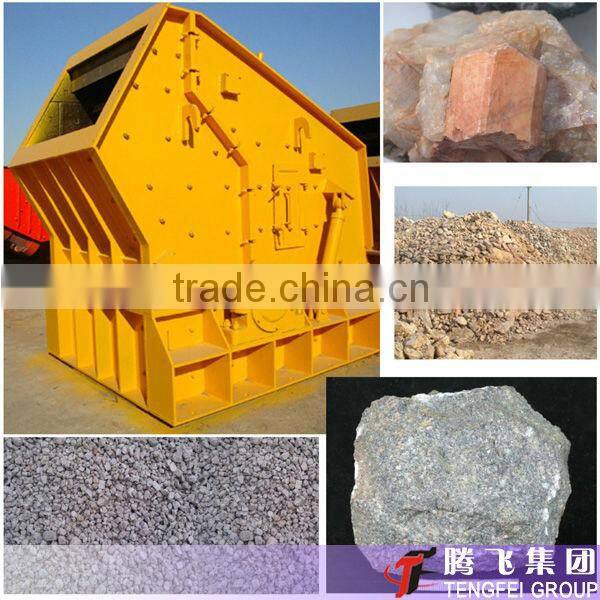

- Processed Materials: Iron ore, copper ore, gold ore, manganese ore, river stone,gravel, granite, basalt, minerals, quartz, diabase, etc.
- Applications: Mining, metallurgy, construction, highway, railroad, and water conservancy, etc
- Rock Crusher can crush many kinds of materials with max feed size less than 300-500 mm and crushing strength less than 350 MPa.
- The most outstanding advantage of impact crusher is that its finished powder is in good, cubic shape, non-tensile and cranny.
- It is widely applied in mining, transportation, energy, construction and chemical industry.
Technical Data:
Type |
Rotor size (mm x mm) |
Feeder Opening(mm) |
Feeding Size (mm) |
Production |
Motor |
Weight |
Quotation (USD) |
PF-1007 |
Φ1000×700 |
400×730 |
300 |
35-50 |
37-55 |
9.45 |
|
PF-1010 |
Φ1000×1050 |
400×1080 |
350 |
50-80 |
55-75 |
12 |
|
PF-1210 |
Φ1250×1050 |
400×1080 |
350 |
70-120 |
110-132 |
14 |
|
PF-1214 |
Φ1250×1400 |
400×1430 |
350 |
80-160 |
132-160 |
18.58 |
|
PF-1315 |
Φ1320×1500 |
860×1520 |
500 |
160-260 |
180-260 |
24.2 |
Pre-sales services
1.Guide customers to choose products which are best suitable for them.
2.Design and manufacture tailor-made products according to the specific needs of customers.
Sales services
1.Strict inspection before the delivery of equipment.
2.Arrange the delivering of goods in accordance with contract.
After sales services
1.Designate special after-sales service personnel to instruct customers to install equipment.
2.For the problems, our company guarantee to provide resolutions within 24 hours.
