Less Bearing Damage Gravel Machine

Specifications

Gravel Machine
1. Larger capacity
2. Little sand loss in washing process
3. Less bearing damage
4. Sealing structure



          Gravel Machine



Type: Necessary Equipment

Input Size: <10mm

Processed Materials: River Gravel, Granite, Basalt, Quartz, Iron Ore, Diabase, Limestone, Coal Gangueetc.

Applications: Aggregate Field, Concrete Mixing Plant, Dry Mortar Plant Desulfurization, Quartz Sand etc

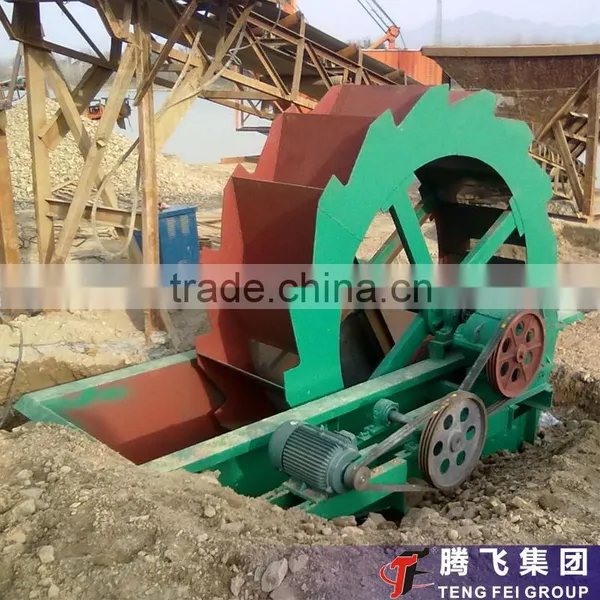

Overview of Gravel Machine

• Gravel Machine is a kind of wheeled washing equipment, and can clean and separate the dust and powder from the sand.
• Its new seal-structure and reliable driving device can make sure the cleaning effect and a kind of high efficiency sand washing equipment matched with the sand making machine.
• It has the features of high degree cleaning-up, reasonable structure, large capacity, low power consumption, small loss of the sands during the washing process, especially for that the drive parts of the sand washing machine are separated from water and sands. So that it has lower failure rate than the usual sand washing machine.

Technical Parameters of Gravel Machine

Model	Wheel Size (mm)	Max Feed Size (mm)	Power (kW)	Weight (t)	Capacity (t/h)	Overall Dimension (mm)
XSD2610	Φ2600×1000	10	5.5	2.7	20-50	3255×1982×2690
XSD2816	Φ2800×1600	10	11	3	30-60	3540×3000×2880
XSD3016	Φ3000×1600	10	15	3.3	50-100	3845×3000×3080







Trade Show



How is the quality of your products?

Our products are manufactured strictly according to national and international standard,and we take a test on every grinder before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.



Guaranteed:

If products’ quality don’t accord to description as we give or the promise before you place order,we promise 100% refund



How about price?

Yes, we are factory and be able to give you lowest price below market one and we have a policy that “ for saving time and absolutely honest business attitude, we quote as lowest as possible for any customer, and discount can be given according to quantity”, if you like bargain and factory price is not low enough as you think, just don’t waste your time.Please trust the quotation we would give you, it is professional one.
