Fiber glass Gravity Spiral Chute

FOB Price

USD $1,000 - $500,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao Shanghai or as your need
Payment Terms:T/T D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Sprial Separator	Place of Origin:	Henan, China
Brand Name:	TF	Model Number:	5LL	Voltage:	380v or as the required
Power(W):	Depend on model	Dimension(LWH):	Depend on model	Weight:	50-800kg
Certification:	CE, ISO9001	Warranty:	12 months	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

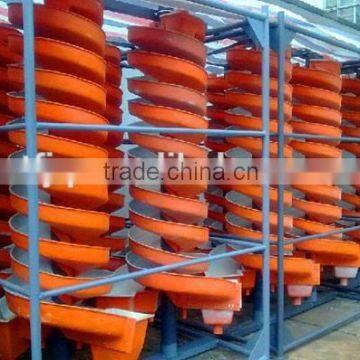

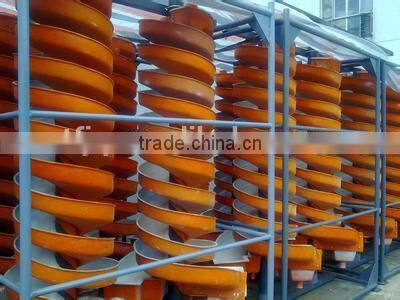

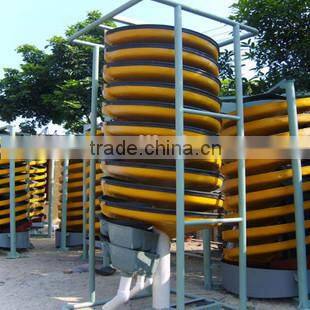

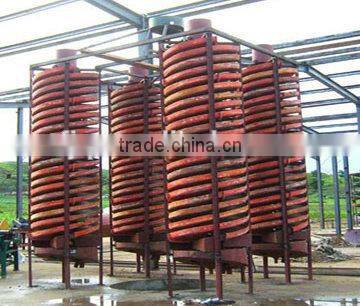

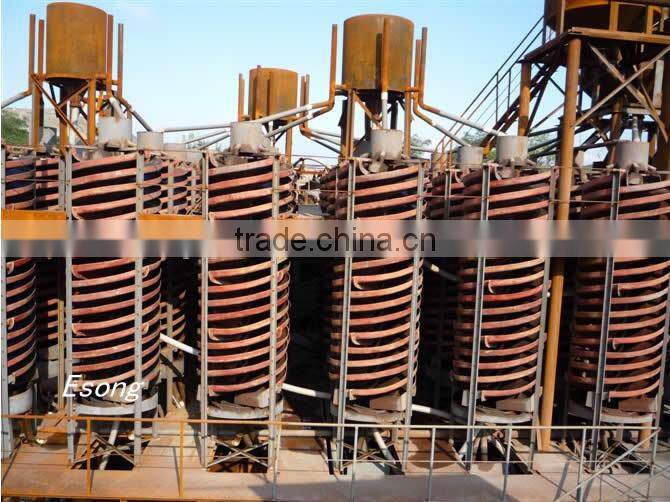

Fiber glass Gravity Spiral Chute

Spiral chute — Product advantages

1.Less floor space; easy and stable operation; rational configuration; convenient installation

2.High processing capacity and efficiency

3.Moisture proof, antirust, corrosion resistant, adaptive, noiseless.

Spiral chute — Product feature

Spiral chute (glass fiber reinforced plastics spiral chute) present advantages as follows: less floor space; easy and stable operation; rational configuration; convenient installation; high processing capacity and efficiency; moisture proof; antirust; corrosion resistant; adaptive and noiseless, etc.

Spiral chute — Product application
Spiral chute (glass fiber reinforced plastics spiral chute) is applicable to metal and non-metal ores with adequate density difference, like iron, chromite, pyrite, tin ore, tungsten, tantalum, niobium, gold ore, colliery, monazite, rutile and Zirconium.

Technical Parameters

Spiral chute — Technology parameter

model		5LL-1500	5LL-1200	5LL-900	5LL-600	5LL-400
External diameter(mm)		1500	1200	900	600	400
Screw pitch(mm)		540,720	900,720,540	675,540,405	450,360,270	240,180
Ratio of screw pitch to diameter		0.75,0.6,0.45	0.75,0.6,0.45	0.75,0.6,0.45	0.75,0.6,0.45	0.6,0.45
Horizontal Angle°		9°	9°	9°	9°	9°
Spiral head number		4-2	4	4	4	4
Feeding Particle Size (mm)		0.3-0.02	0.3-0.03	0.3-0.03	0.2-0.02	0.2-0.02
Feeding concentration(%)		25-55	25-55	25-55	25-55	25-55
Processing Capacity (ton/hour)		8-16	4-6	2-3	0.8-1.2	0.15-0.2
Overall dimension	length(mm)	1560	1360	1060	700	460
	width(mm)	1560	1360	1060	700	460
	height(mm)	5230	5230	4000	26000	1500
weight(KG)		800	600	400	150	50
