Product Details
Condition: | New | Type: | Flotation Separator | Production Capacity: | 0.18-7m3/min |
Place of Origin: | Henan, China | Brand Name: | TF | Model Number: | XJK |
Voltage: | 380v or as required | Power(W): | Depend on model | Dimension(L*W*H): | Depend on model |
Certification: | CE, ISO | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

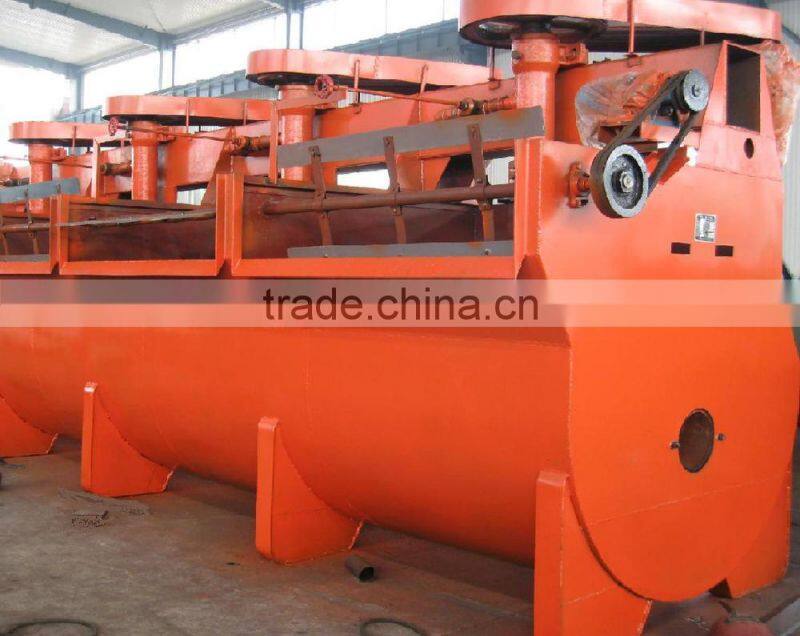

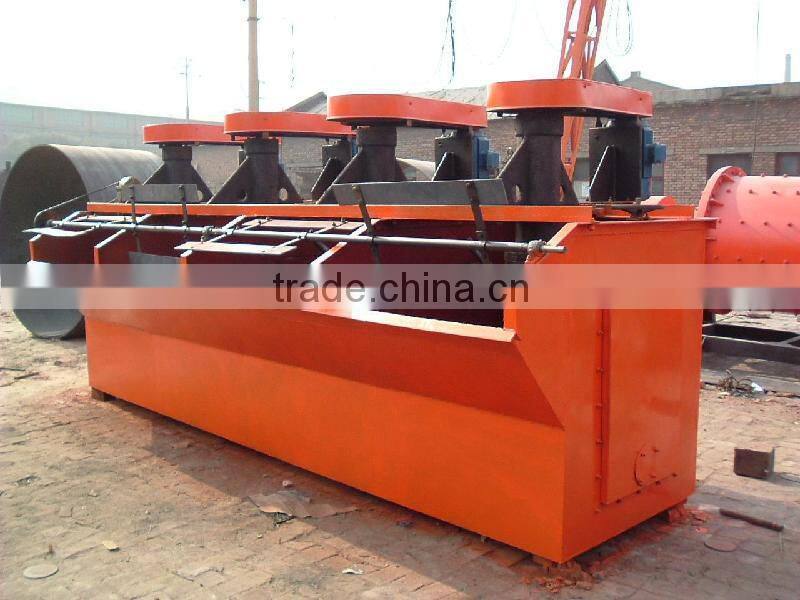

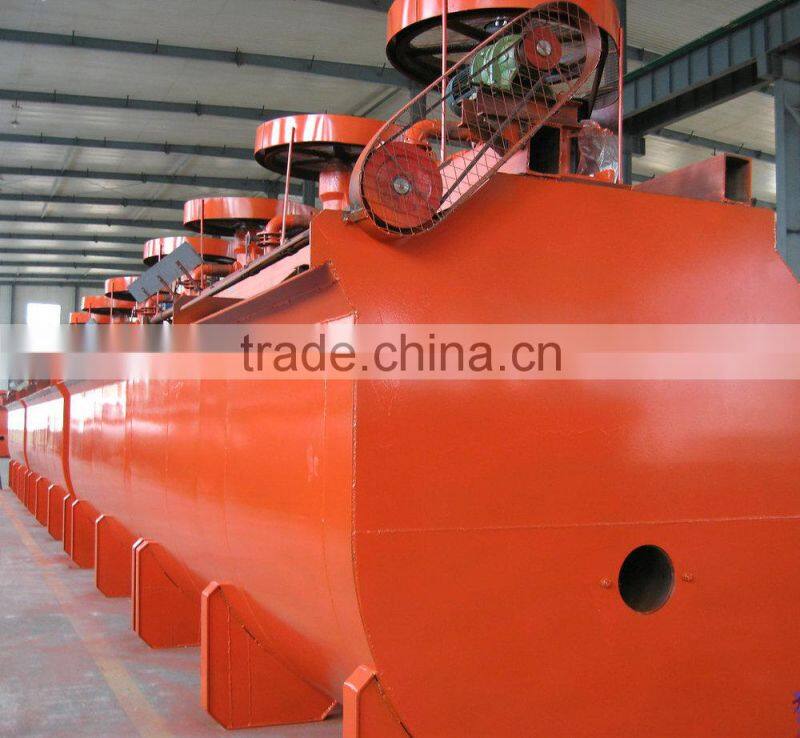

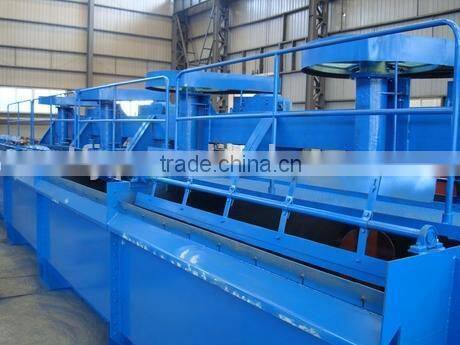

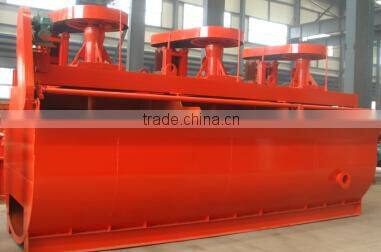

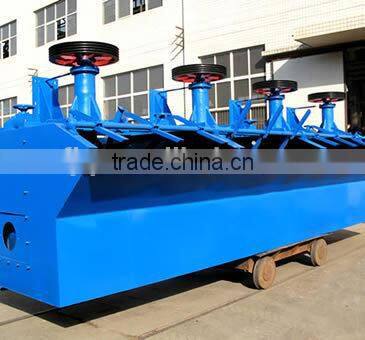

Multifunctional floatation machine kyf floatation machine
1.Introduction
Floatation machine is a equipment for separating minerals from gangue by taking advantage of differences in their hydrophobicity.
2.Features
It can be combined with other model as a flotation cell set, working as suction cell.
It has the function of automatic suction slurry with a little higher energy consumption.
3.Application
It is widely used for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry.
4.Working principle
When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed.
Technical parameter
Model | XJK-0.35 | XJK-0.62 | XJK-1.1 | XJK-2.8 | XJK-5.8 | |
Effective volume (m3) | 0.35 | 0.62 | 1.1 | 2.8 | 5.8 | |
Production capacity (m3/min) | 0.18-0.4 | 0.3-0.9 | 0.6-1.6 | 1.5-3.5 | 3-7 | |
Rotation speed (r/min) | 470 | 400 | 330 | 280 | 240 | |
Blade diameter (mm) | 300 | 350 | 500 | 600 | 750 | |
Motor model | Rotor | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y200L2-6(255M-60) |
Scraping plate | Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | |
Motor power | Blade motor | 1.5 | 3 | 5.5 | 11 | 22(30) |
Scraping plate motor | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | |
Weight (t/single trough) | 0.43 | 0.86 | 1.38 | 2.33 | 3.533 |
