Durable Concrete Stainless Steel Screw Conveyor

Durable Concrete Stainless Steel Screw Conveyor photo-1
Durable Concrete Stainless Steel Screw Conveyor photo-2
Durable Concrete Stainless Steel Screw Conveyor photo-3
US$ 1,600 - 3,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw Conveyor
Material:
Other, Carbon steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai Ningbo etc
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Screw Conveyor
Material Other, Carbon steel
Material Feature Heat Resistant
Structure Conveyor System
Load Capacity 15 t/h
Place of Origin Henan, China
Brand Name TengFei
Model Number LSY219
Voltage 380 V
Power(W) 7.5 KW
Dimension(L*W*H) Housing Dia: 194x6 mm; Transport Length: 2-12 m
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas

 Durable concrete stainless steel screw conveyor




Durable concrete stainless steel screw conveyor

Durable concrete stainless steel screw conveyor






Product Description



  • LSY series screw conveyor is a new type of transporting equipment, which use rotary screw vane to push material continuously in closed housing with round section.
  • It is applicable to transport various kinds of loose material such as power, granular and small piece material, for example: clay powder, pulverized coal, cement, sand, grain, small piece of coal, cobble and cast iron filings, etc. It is not applicable to transport material with high viscosity, easy to be curdled.

Features

  • Compact structure, small cross section, light weight
  • Good seal performance, safe operation
  • High transport efficiency, low noise
  • Flexible technological arrangement
  • Easy to be installed, dismantled and moved





Technical Parameters



Model

LSY165

LSY219

LSY273

LSY325

Shell Pipe Diameter(mm)

165

219

273

325

Carrying Capacity(t/h)

10

15

30

60

Rotation Speed(r/min)

310

310

240

170

Max Working Angle(°)

0-45°

0-45°

0-45°

0-45°

Max. Conveying Length(m)

14

14

14

14

Length(m) (From inlet to outlet)

<4

6

8

>11.5

<4

6

8

>11.5

<6

8

>11.5

<6

8

>11.5

Motor Power (kw)

3/2.2

4

5.5

7.5/11

5.5

7.5

11

15

11

15

18.5

15

18.5

22/30

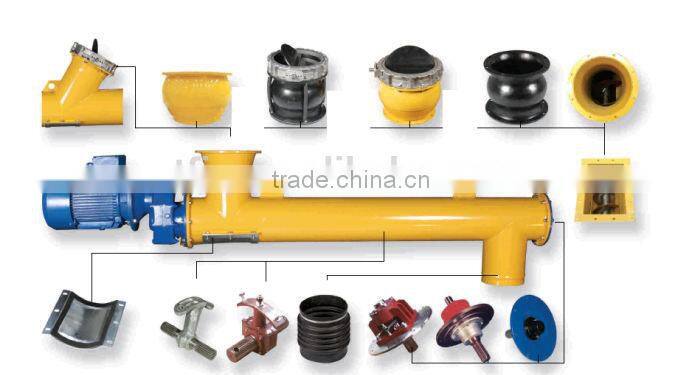

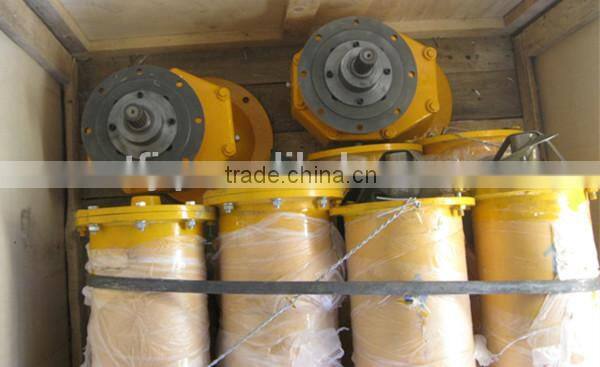

Spare Parts

 Durable concrete stainless steel screw conveyor

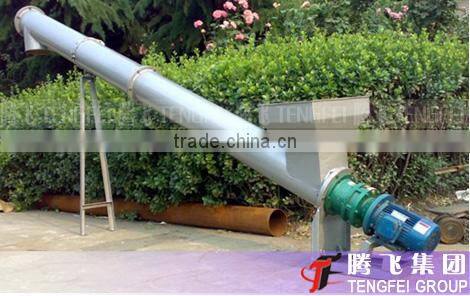

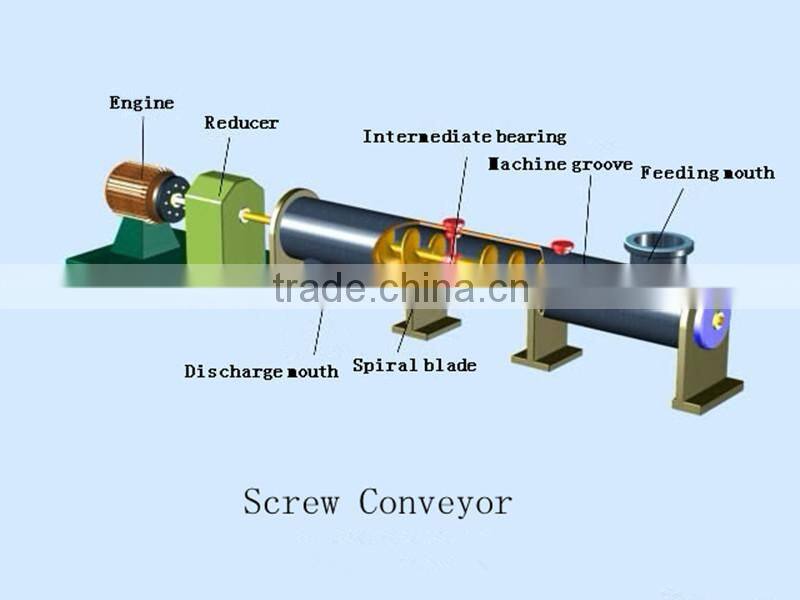

 Structures



Durable concrete stainless steel screw conveyor

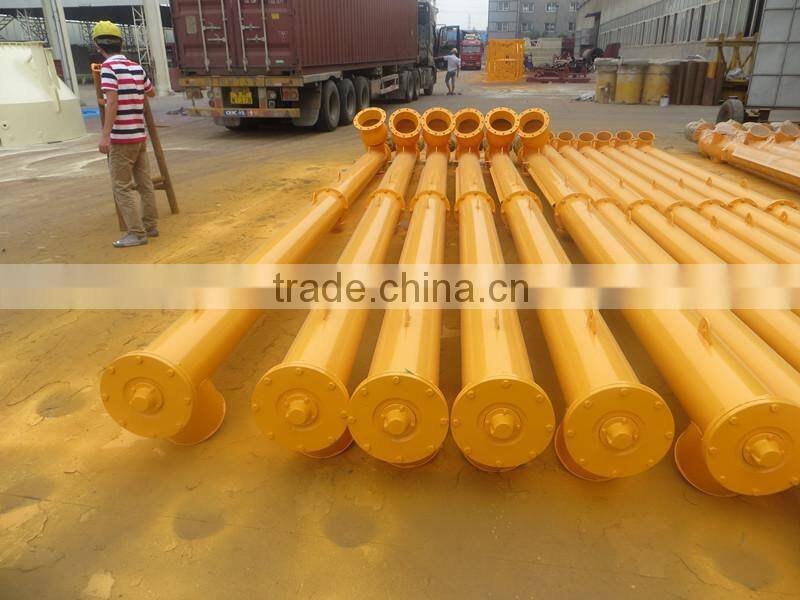

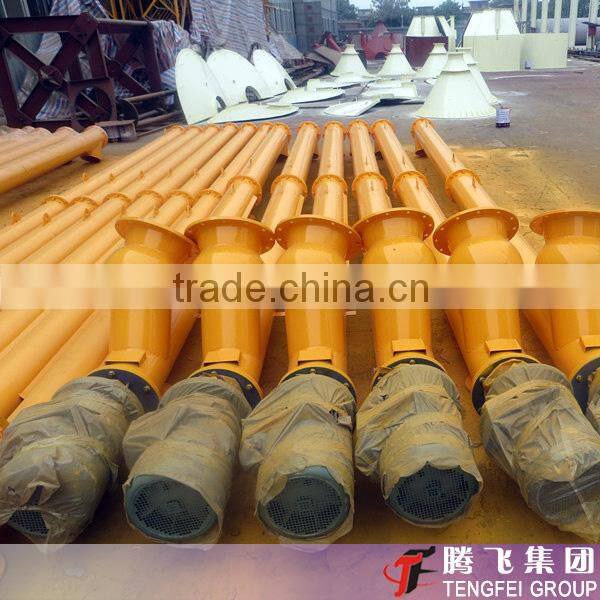

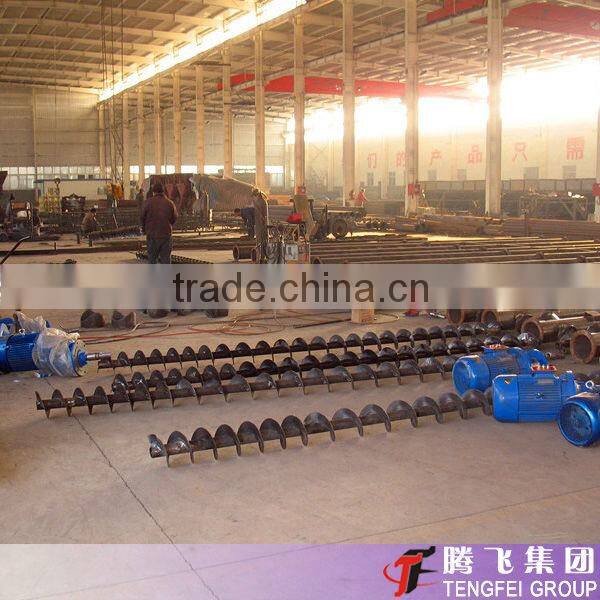

Details

Durable concrete stainless steel screw conveyor



Durable concrete stainless steel screw conveyor



Durable concrete stainless steel screw conveyor



 Durable concrete stainless steel screw conveyor



Durable concrete stainless steel screw conveyor

 Durable concrete stainless steel screw conveyor

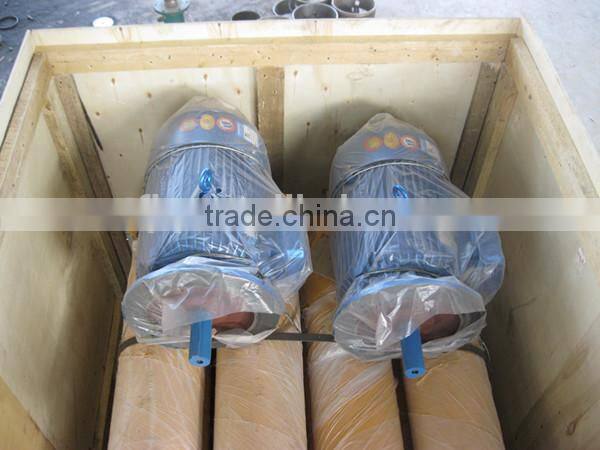

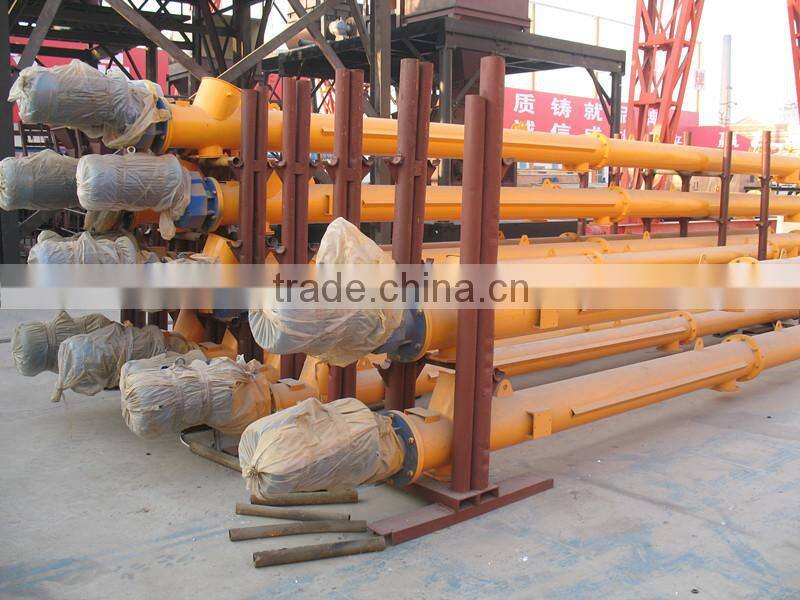

Packaging & Shipping



Durable concrete stainless steel screw conveyor







Durable concrete stainless steel screw conveyor









 Exhibition

Durable concrete stainless steel screw conveyor
