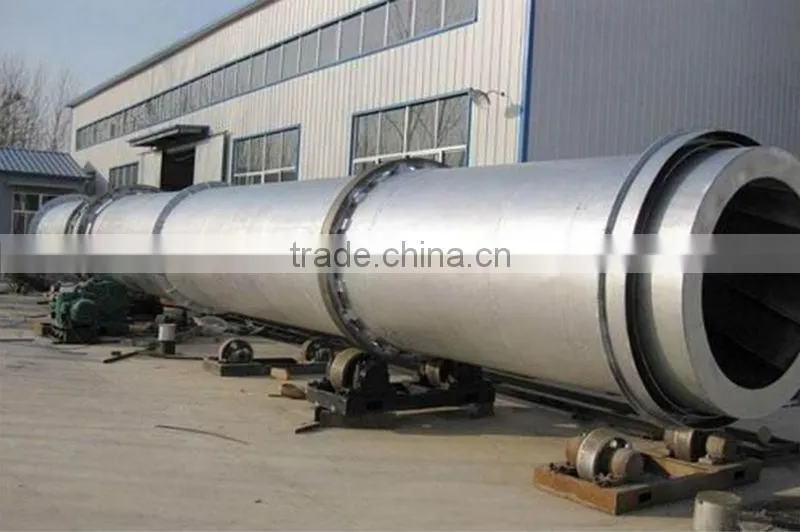

Automatic Industrial Steam Tube Rotary Dryer

Name: Automatic Industrial Steam Tube Rotary Dryer
Brand: TengFei
SKU: 115509431

Automatic Industrial Steam Tube Rotary Dryer thumbnail-1

Automatic Industrial Steam Tube Rotary Dryer thumbnail-2

Automatic Industrial Steam Tube Rotary Dryer thumbnail-3

Automatic Industrial Steam Tube Rotary Dryer photo-1

Automatic Industrial Steam Tube Rotary Dryer photo-2

Automatic Industrial Steam Tube Rotary Dryer photo-3

US$ 4,840 - 12,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Rotary Drying Equipment

Place of Origin:

Henan, China

Contact Supplier Request Quote Chat Now

Henan Teng Fei Machine Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Tianjin Shanghai Ningbo etc.

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Rotary Drying Equipment

Place of Origin Henan, China

Brand Name TengFei

Model Number FD1000x10000

Voltage 380v,50Hz or as request

Power(W) 4 kw

Dimension(L*W*H) 10000 x 1876 x 2069

Weight 7.5 t

Certification ISO, CE

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

Steam Tube Rotary Dryer

Product Description

Steam Tube Rotary Dryer Category:We have 3 Drum dryer, gypsum dryer, slag dryer, series of sand dryer, sawdust dryer, slime dryer, lignite dryer and F-type anti-pollution dryer.

Steam Tube Rotary Dryer Usage: rotary dryer can dry granule materials in fixed moisture rang, such as mineral, slag, sand and slime ect

Steam Tube Rotary Dryer Features:

the length and diameter ratio of the rotary drum can be changed according to user’s requirements or the nature of the materials.

the processing capacity is determined by material’s nature and products requirements.

motor power can be selected according to material properties and the quantity of outputs.

strong anti-overload capacity, large handling quantity, low consumption of burning, low cost

large capacity, wide range of applications, less flow resistance, larger fluctuation range during work, easy operation

Parameters

Specification (model)	Cylinder volume	Cylinder speed	Cylinder gradient	Motor Model	Motor Power	Decelerator Model	Overall dimensions	Weight (T)
FD600x8000	2.26	8		YCT200-4A	4	JZQ250	8000x2200x980	2.9
FD800x1200	5.02	7	3-5	Y132M2-6	4	JZQ250	12000x2700x1300	3.5
FD1000×10000	7.85	6.73	3-5	Y132M2-6	4	JZQ400	10000×1876×2069	7.5
FD1200×6000	6.8	5.8		Y132M2-6	5.5	JZQ500	6000×2159×2475	7.97
FD1200×8000	9.1			Y132M2-6	5.5	JZQ500	8000×2159×2475	8.75
FD1200×10000	11.31			Y160M-6	7.5	JZQ500	10000×2159×2475
FD1200×12000	13.75			Y160M-6	7.5	JZQ500	12000×2159S×2475	10.3
FD1500×8000	14.14	4.8		Y160L-6	11	JZQ650	8000×2655×2859	14.74
FD1500×10000				Y160L-6	11	JZQ650	10000×2655×2895	15.9
FD1500×12000	21.2			Y180L-6	15	JZQ650	12000×2055×2895	17.13
FD1500×14000	24.9			Y180L-6	15	JZQ650	14000×2655×2895	18.33

Our Services

Personalized reception: Offer the full and personalized service in the whole journey after you come to China.
Lifetime Technical Support: Offer one year of free equipment warranty and lifetime technical support.
Monitor Production Progress: You can monitor production progress personally any time after confirming the order.
Product Delivery: We have developed a long and good relationship with many shipping agents, such as APL, MSK, CSCL, MSC, etc.
Installation and Training: Send technicians to the client site for guiding the installation and adjustment, and training operators to complete the inspection and acceptance together with you.

Tengfei has developed a long and good relationship with many shipping agents , such as APL,COSCO,OOCL,MSK,MSC,etc.

Six Reasons of Choosing Tengfei:

International high quality certification product chain
Manufactures, more reasonable price
Solid technical support and after-sales service
Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
One-stop service, customized exclusive project feasibility report
Exports more than 50 countries and regions, good customers feedback
