Low Noise and Profeeeional Sand Rotary Dryer

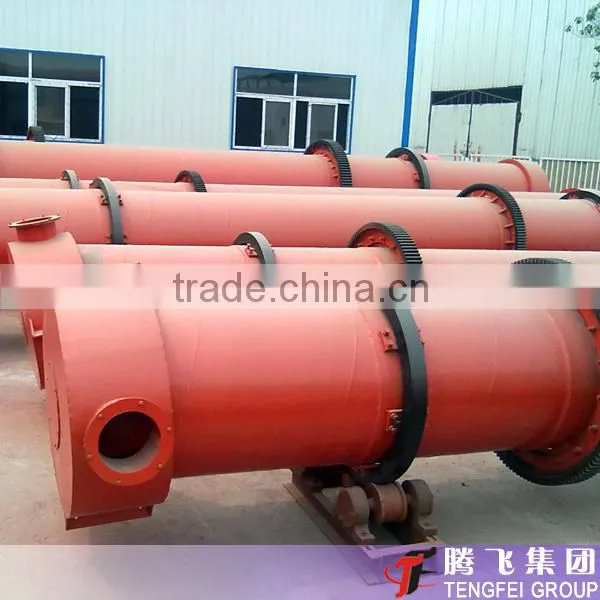

Low Noise and Profeeeional Sand Rotary Dryer thumbnail-1
Low Noise and Profeeeional Sand Rotary Dryer photo-1
US$ 61,000 - 70,412 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
TengFei
Model Number:
FD2200 x 12000
Contact Supplier Request Quote Chat Now
Henan Teng Fei Machine Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name TengFei
Model Number FD2200 x 12000
Condition New
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Sand Rotary Dryer:
1.Low moisture content of final product
2.Easy maintenance
3. Large Capacity
4. Flexible operation

      Sand Rotary Dryer



Product Description







1. Brief Introduction



  • The Sand Rotary Dryer is widely used for drying the chalk slags, coal powder, slags, clay and other materials in the building materials, metallurgy, chemical industry, cement industry.

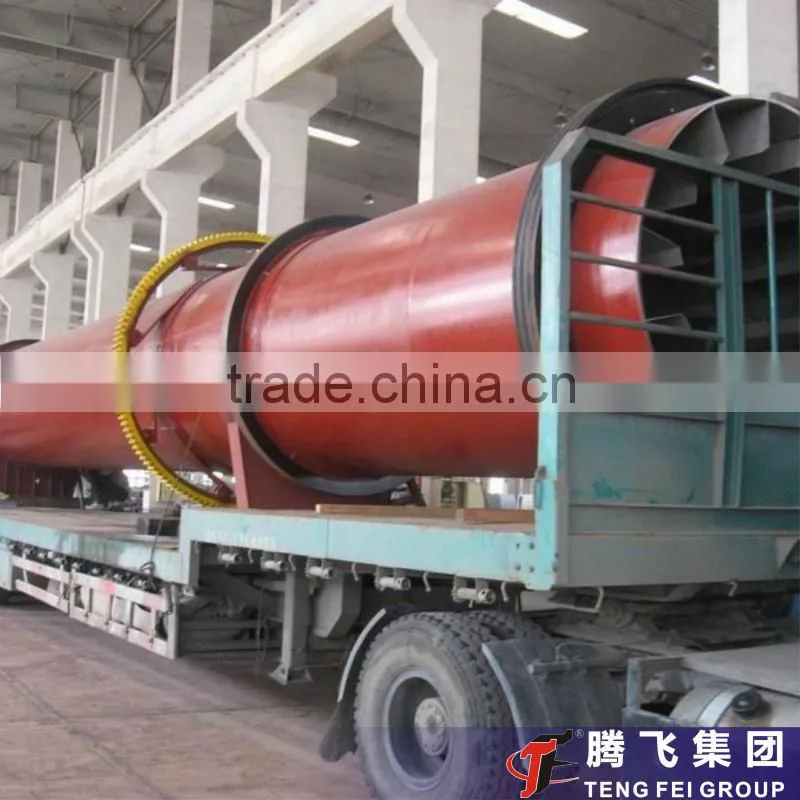

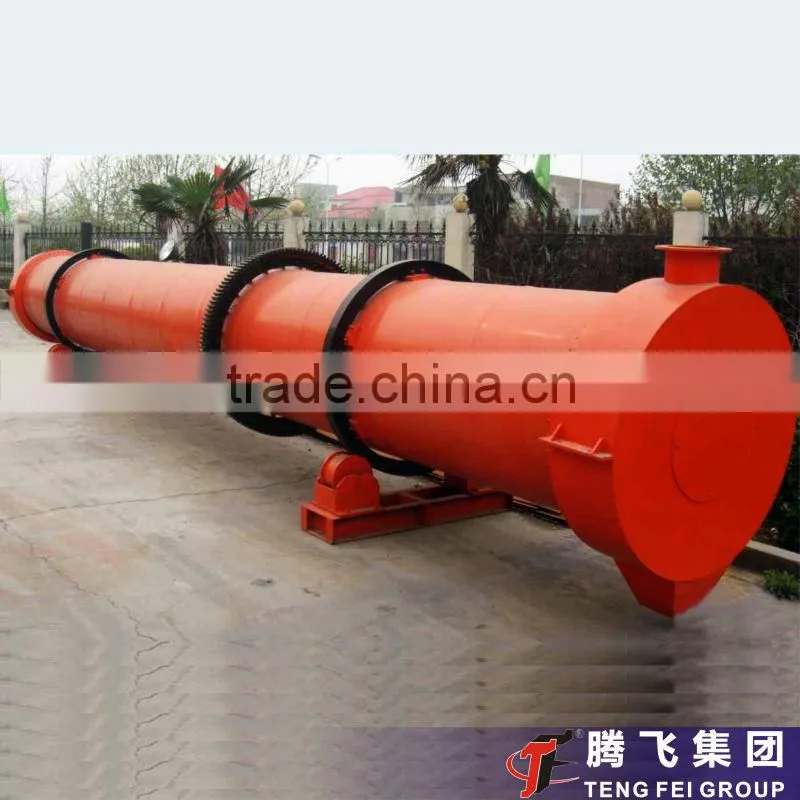

  • The Calcium Carbonate Dryer has a better adaptability and can dry various materials with a simple and reliable operation.Low Noise and Profeeeional Sand Rotary DryerLow Noise and Profeeeional Sand Rotary DryerLow Noise and Profeeeional Sand Rotary Dryer



2. Technical Parameters







Specification (model)

Cylinder volume (m³)

Cylinder speed (r/min)

Cylinder gradient (°C)

Motor Model

Motor Power (KW)

Decelerator Model

Overall dimensions (MM)

Weight (T)

FD600x8000

2.26

8



YCT200-4A

4

JZQ250

8000x2200x980

2.9

FD800x1200

5.02

7

3-5

Y132M2-6

4

JZQ250

12000x2700x1300

3.5

FD1000×10000

7.85

6.73

3-5

Y132M2-6

4

JZQ400

10000×1876×2069

7.5

FD1200×6000

6.8

5.8

Y132M2-6

5.5

JZQ500

6000×2159×2475

7.97

FD1200×8000

9.1

Y132M2-6

5.5

JZQ500

8000×2159×2475

8.75

FD1200×10000

11.31

Y160M-6

7.5

JZQ500

10000×2159×2475

9.25

FD1200×12000

13.75

Y160M-6

7.5

JZQ500

12000×2159S×2475

10.3

FD1500×8000

14.14

4.8

Y160L-6

11

JZQ650

8000×2655×2859

14.74

FD1500×10000



Y160L-6

11

JZQ650

10000×2655×2895

15.9

FD1500×12000

21.2

Y180L-6

15

JZQ650

12000×2055×2895

17.13

FD1500×14000

24.9

Y180L-6

15

JZQ650

14000×2655×2895

18.33

FD1800×10000

25.45

3-5

5

Y180L-6

15

JZQ650

10000×3060×2980

17.93

FD1800×12000

30.5

Y200L-6

18.5

JZQ650

12000×3060×2980

19.89

FD1800×14000

35.1

Y200L-6

18.5

JZQ650

14000×3060×2980

20.85

FD1800×18000

45.8

Y200L-6

22

JZQ650

18000×3060×2980

22.3

FD2200×12000

45.6

4.4

Y200L-6

22

JZQ750

12000×3620×3570

30.31

FD2200×14000

53.2

Y200L-6





22

JZQ750

14000×3620×3570

32.23

FD2200×18000

68.4

Y225M-6

30

JZQ750

18000×3620×3570

34.15

FD2200×20000

70

Y225M-6

30

JZQ750

20000×3620×3570

36.07

FD2400×14000

63.3

3.85

Y225M-6

30

JZQ850

14000×3860×3760

39.9



3.  Features of  Sand Rotary Dryer

  • Gas low temperature, dust removal equipment with long time
  • The new type of composite feed device, easily control to the end of the moisture indicator
  • High degree of automation,transmission powder is small,easy operation,stable running
  • Fuel can adapt to coal,oil and gas.

4.  Structure of  Sand Rotary Dryer

  • Heating system part uses the hot blast stove technology, sufficient heat and heat transfer effect is good,structure simple
  • Heat exchange system is the drying cylinder, cylinder body feed plate staggered into spiral, repeatedly kick up materials, high heat efficiency
  • Ventilation dust removal system is dust collecting equipment, after drying,the flyash under the nagative pressure condition, easy being taken away by the airflow, prevent the flyash be absort and discharged into the atmosphere by the induced draught system caused resource waste and environmental pollution,unified by the filter dust collector.

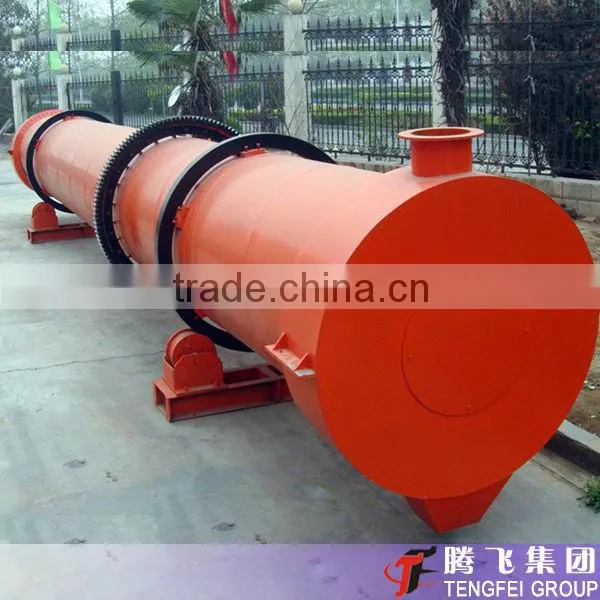

Low Noise and Profeeeional Sand Rotary DryerLow Noise and Profeeeional Sand Rotary Dryer

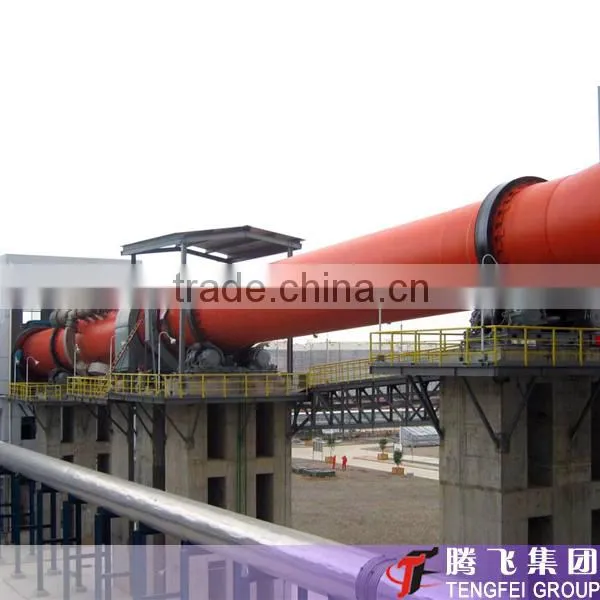

5. Working Site



Low Noise and Profeeeional Sand Rotary Dryer







Our Services

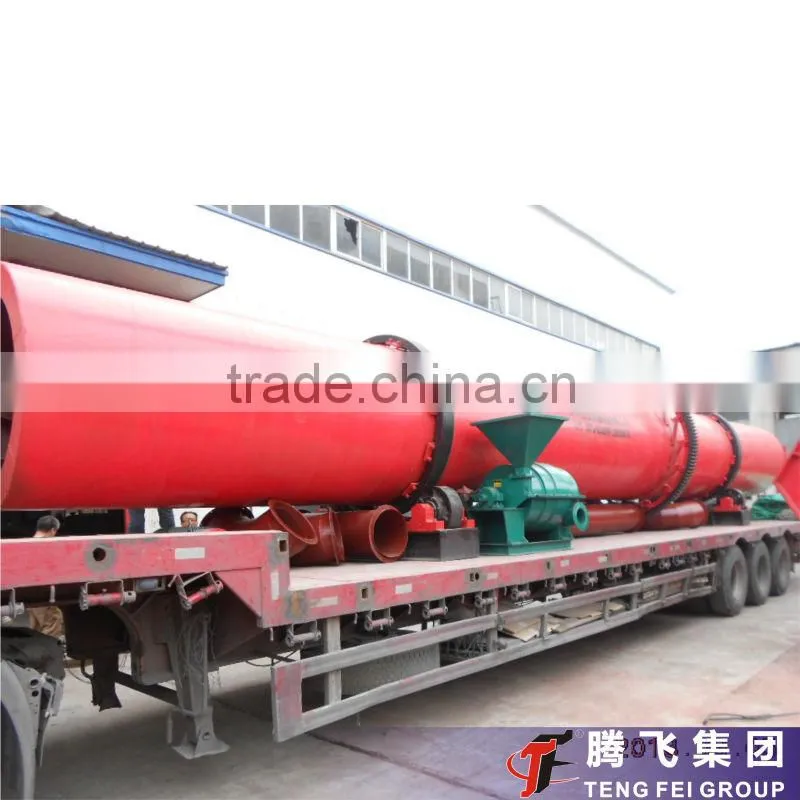

 Low Noise and Profeeeional Sand Rotary DryerLow Noise and Profeeeional Sand Rotary Dryer
