High Frequency Vibrating Circular Screening Machine
USD $12,300 - $28,500
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- Qingdao Shanghai Ningnbo Tianjin etc.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition: | New | Type: | Circular | Application: | Ore |
| Place of Origin: | Henan, China | Brand Name: | TengFei | Model Number: | YZS Series |
| Voltage: | 380v or required | Power(W): | 11-22kw | Dimension(L*W*H): | Different |
| Weight: | 3.2t-12.78t | Certification: | ISO CE | Warranty: | 12 Months |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High Frequency Vibrating Circular Screening Machine
Product Description
1. Vibrating Screening Machine brief Introduction
- Type: Necessary Equipment
- Input Size: 0-100mm
- Processed Materials: River Gravel, Granite, Basalt, Quartz, Iron ore, Diabase, Limestone, Coal Gangueetc.
- Applications: Aggregate Field, Concrete Mixing Plant, Dry Motar Plant Desulfurization, Quartz Sand etc.
2. Vibrating Screening Machine detailed specification:

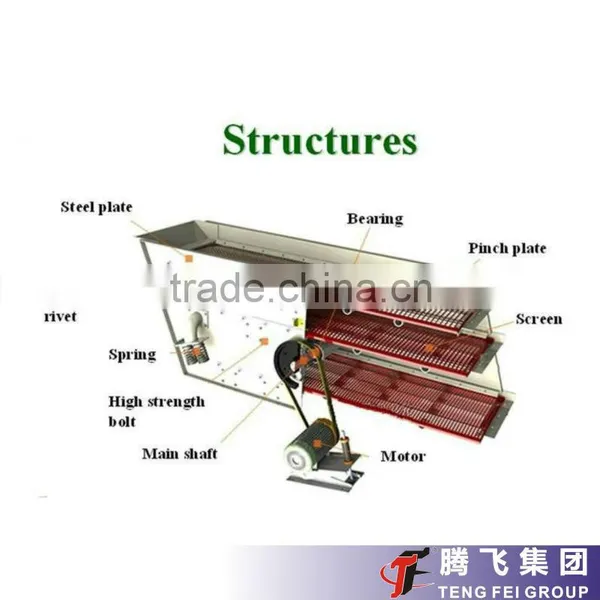

- Vibrating Screen Machine moves in a circular motion with multiple layers and high efficiency. The vibrating screen is designed with the barrel type of eccentric shaft vibration exciter and eccentric block to adjust the swing.
- It is manufactured with long material screen rifling and many screen specifications. The vibrating screen is especially designed for screening stones and features reliable structure, strong vibration force, high screening efficiency, low vibrating noise, excellent durability, convenient maintenance, safe use, etc.
3. Technical parameters:
Model | Screen Size (mm) | No. of Layer | Screen mesh (mm) | Max. feed size (mm) | Handling capacity (t/h) | Motor power (Kw) | Vibrating frequency (r/min) |
2YZS1237 | 3700×1200 | 2 | 3-100 | 400 | 10-80 | 11 | 750-950 |
3YZS1237 | 3700×1200 | 3 | 3-100 | 400 | 10-80 | 11 | 750-950 |
2YZS1548 | 4800×1500 | 2 | 3-100 | 400 | 30-200 | 15 | 750-950 |
3YZS1548 | 4800×1500 | 3 | 3-100 | 400 | 30-200 | 15 | 750-950 |
2YZS1848 | 4800×1800 | 2 | 3-100 | 400 | 50-250 | 18.5 | 750-950 |
3YZS1848 | 4800×1800 | 3 | 3-100 | 400 | 50-250 | 18.5 | 750-950 |
4YZS1848 | 4800×1800 | 4 | 3-100 | 400 | 50-250 | 18.5 | 750-950 |
4. Widely used in different product lines:
5. Tengfei Vibrating Screening Machine :
