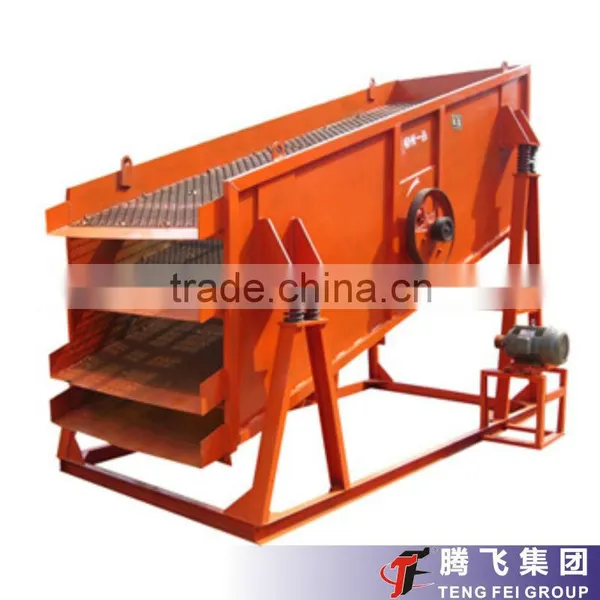

Circular Vibrating Screen
Type: Necessary Equipment
Input Size: 0-100mm
Processed Materials: River Gravel, Granite, Basalt, Quartz, Iron ore, Diabase, Limestone, Coal Gangueetc.
Applications: Aggregate Field, Concrete Mixing Plant, Dry Motar Plant Desulfurization, Quartz Sand etc.
We have a wide range of Vibrating screens suitable for various screening application.Vibrating Screens are used to separate materials into various sizes for further processing in Crusher. Vibrating screen works on circular motion. It is applicable for wide range of operations like screening of dry or wet sand gravel crushed stone, mineral ores and industrial applications. We offer vibro screens in a variety of combination of sizes to apt solutions for different capacity requirement for crushers. In screen grading, the material is separated mechanically on screen plates. Vibrating screen has rolling bearing stressed by high loads. Output of the screen depends on screen inclination, feeding system, screen RPM and vibration ratio. We can design and supply all ranges of vibrating screens according to the capacity and requirement.

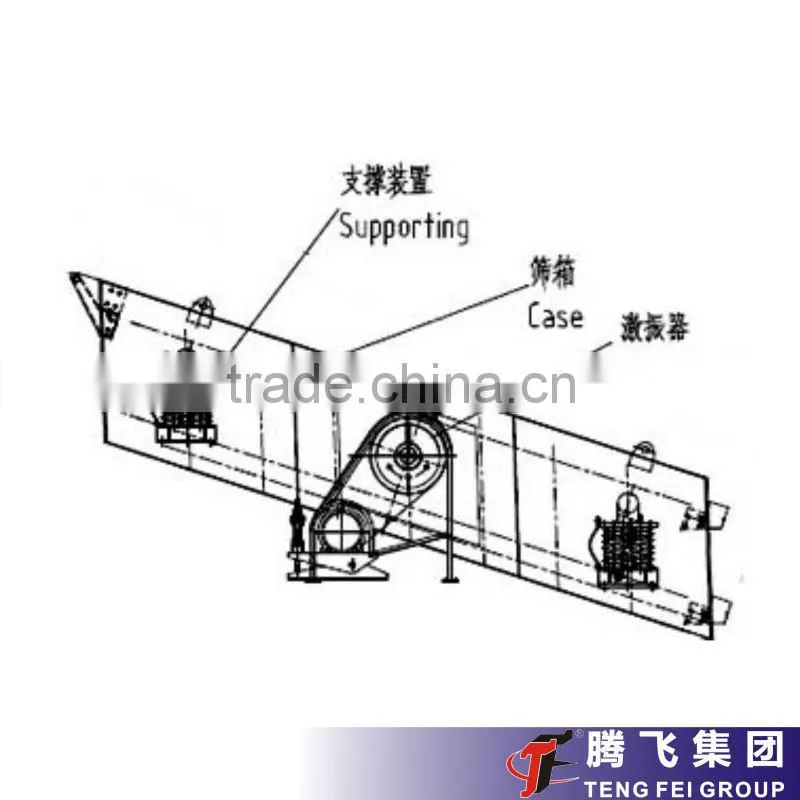

Working Principle
Vibrating screen is manufactured for stand alone or supplemental installations. It can be manufactured in customized shape and size fit to the crusher and other processing applications and production requirements. Vibro screens are suitable with various screening systems. It can be installed and integrated with existing crusher units and plants. Screens are used for discharging bulky goods, sand, gravel, coal, mineral ores and coke from hoppers to crusher.
Technical Parameters
Model |
Screen Size (mm) |
No. of Layer |
Screen mesh (mm) |
Max. feed size (mm) |
Handling capacity (t/h) |
Motor power (Kw) |
Vibrating frequency (r/min) |
2YZS1237 |
3700×1200 |
2 |
3-100 |
400 |
10-80 |
11 |
750-950 |
3YZS1237 |
3700×1200 |
3 |
3-100 |
400 |
10-80 |
11 |
750-950 |
2YZS1548 |
4800×1500 |
2 |
3-100 |
400 |
30-200 |
15 |
750-950 |
3YZS1548 |
4800×1500 |
3 |
3-100 |
400 |
30-200 |
15 |
750-950 |
2YZS1848 |
4800×1800 |
2 |
3-100 |
400 |
50-250 |
18.5 |
750-950 |
3YZS2160 |
6000×2100 |
3 |
3-100 |
400 |
81-720 |
30 |
700-900 |
4YZS2160 |
6000×2100 |
4 |
3-100 |
400 |
81-720 |
30 |
700-900 |
2YZS2460 |
6000×2400 |
2 |
3-150 |
400 |
100-500 |
30 |
700-900 |
Features
1. It uses eccentric block to produce strong exciting force.
2. Crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance.
3. It adopts tire coupling with capability of flexible connection and stable operation.
4. It adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption, little noise.

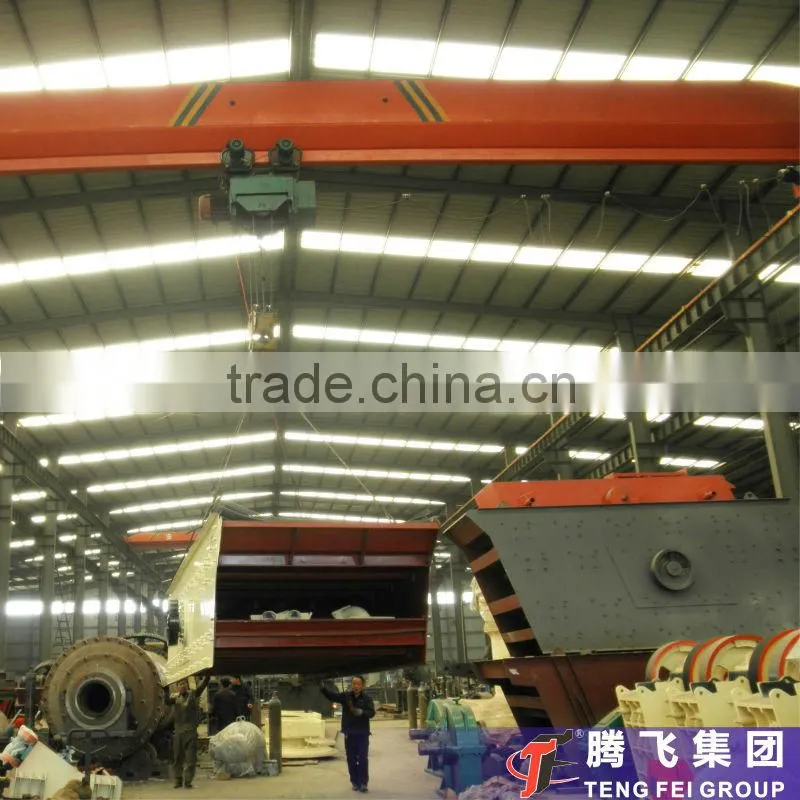

Workshop:

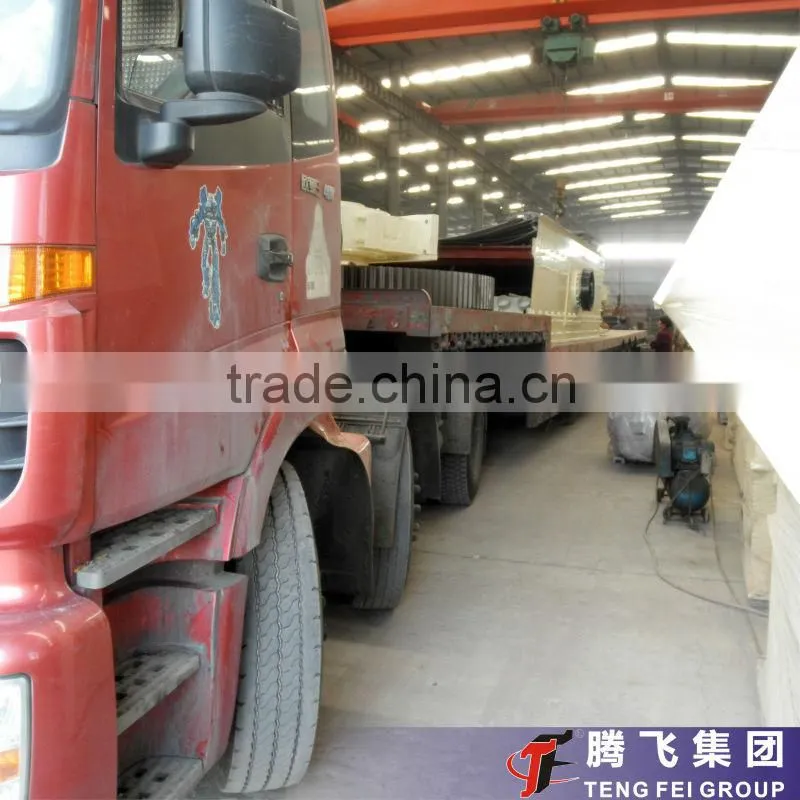

Delivery:
Worksite:
How is the quality of your products?
Our products are manufactured strictly according to national and international standard,and we take a test on every grinder before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.
Guaranteed:
If products’ quality don’t accord to description as we give or the promise before you place order,we promise 100% refund
How about price?
Yes, we are factory and be able to give you lowest price below market one and we have a policy that “ for saving time and absolutely honest business attitude, we quote as lowest as possible for any customer, and discount can be given according to quantity”, if you like bargain and factory price is not low enough as you think, just don’t waste your time.Please trust the quotation we would give you, it is professional one.
Why should we choose you?
Chose happens because of quality, then price, we can give you both.
Additionally, we can also offer professional products inquiry, products knowledge train(for agents), smooth goods delivery, excellent customer solution proposals.Our service formula: good quality+good price+good service=customer’s trust
