Srong Exciter Circular Vibrating Screen for Stone
Specifications:
Circular Vibrating Screen
1. Ring groove rivet connection
2. Advanced structure
3. Excellent durability
4. High efficiency
Circular Vibrating Screen
Type: Circular Vibrating Screen
Input Size: 0-100mm
Processed Materials: River Gravel, Granite, Basalt, Quartz, Iron ore, Diabase, Limestone, Coal Gangueetc.
Applications: Aggregate Field, Concrete Mixing Plant, Dry Motar Plant Desulfurization, Quartz Sand etc.
Introduction of Circular Vibrating Screen 1.We have a wide range of Vibrate Screen suitable for various screening application.Vibrating Scree ns are used to separate materials into various sizes for further processing in Crusher.
2.Vibrate Screen works on circular motion. It is applicable for wide range of operations like screening of dry or wet sand gravel crushed stone, mineral ores and industrial applications.
3.We offer Vibrate Screen in a variety of combination of sizes to apt solutions for different capacity re quirement for crushers. In screen grading, the material is separated mechanically on screen plates. V ibrating screen has rolling bearing stressed by high loads. Output of the screen depends on screen i nclination, feeding system, screen RPM and vibration ratio.
4.We can design and supply all ranges of vibrating screens according to the capacity and requirement.
Technical Parameters of Sand Sieve Machine
Model |
Screen Size (mm) |
No. of Layer |
Screen mesh (mm) |
Max. feed size (mm) |
Handling capacity (t/h) |
Motor power (Kw) |
Vibrating frequency (r/min) |
2YZS1237 |
3700×1200 |
2 |
3-100 |
400 |
10-80 |
11 |
750-950 |
3YZS1237 |
3700×1200 |
3 |
3-100 |
400 |
10-80 |
11 |
750-950 |
2YZS1548 |
4800×1500 |
2 |
3-100 |
400 |
30-200 |
15 |
750-950 |
3YZS1548 |
4800×1500 |
3 |
3-100 |
400 |
30-200 |
15 |
750-950 |
2YZS1848 |
4800×1800 |
2 |
3-100 |
400 |
50-250 |
18.5 |
750-950 |
3YZS2160 |
6000×2100 |
3 |
3-100 |
400 |
81-720 |
30 |
700-900 |
4YZS2160 |
6000×2100 |
4 |
3-100 |
400 |
81-720 |
30 |
700-900 |
2YZS2460 |
6000×2400 |
2 |
3-150 |
400 |
100-500 |
30 |
700-900 |
Working Principle of Used Vibrating Screen
1.Vibrating screen is manufactured for stand alone or supplemental installations.
2.It can be manufactured in customized shape and size fit to the crusher and other processing applications and production requirements.
3.Vibro screens are suitable with various screening systems. It can be installed and integrated with existing crusher units and plants.
4.Screens are used for discharging bulky goods, sand, gravel, coal, mineral ores and coke from hoppers to crusher.

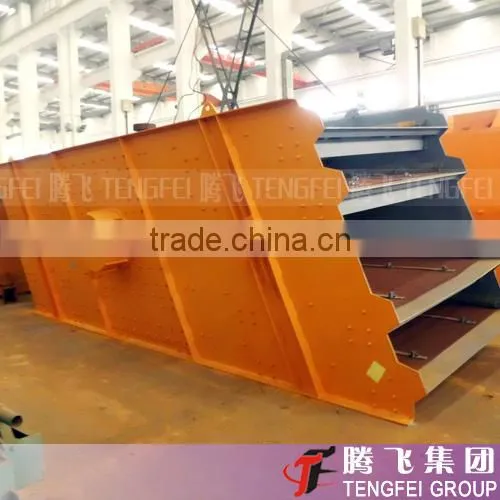

Workshop:

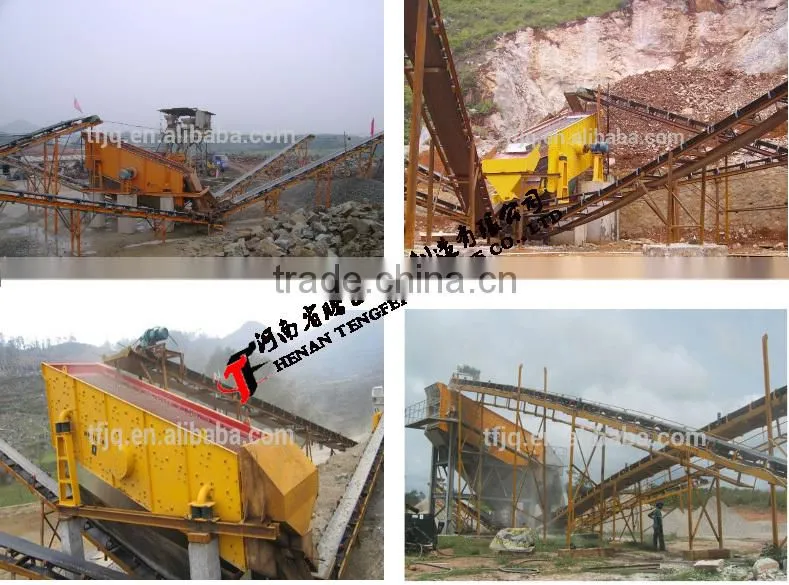

Worksite:
Pre-sales services
1.Guide customers to choose products which are best suitable for them.
2.Design and manufacture tailor-made products according to the specific needs of customers.
Sales services
1.Strict inspection before the delivery of equipment.
2.Arrange the delivering of goods in accordance with contract.
After sales services
1.Designate special after-sales service personnel to instruct customers to install equipment.
2.For the problems, our company guarantee to provide resolutions within 24 hours.
If you are interested in our Circular Vibrating Scree , please kindly email us, we will give you factory price with full specification..
