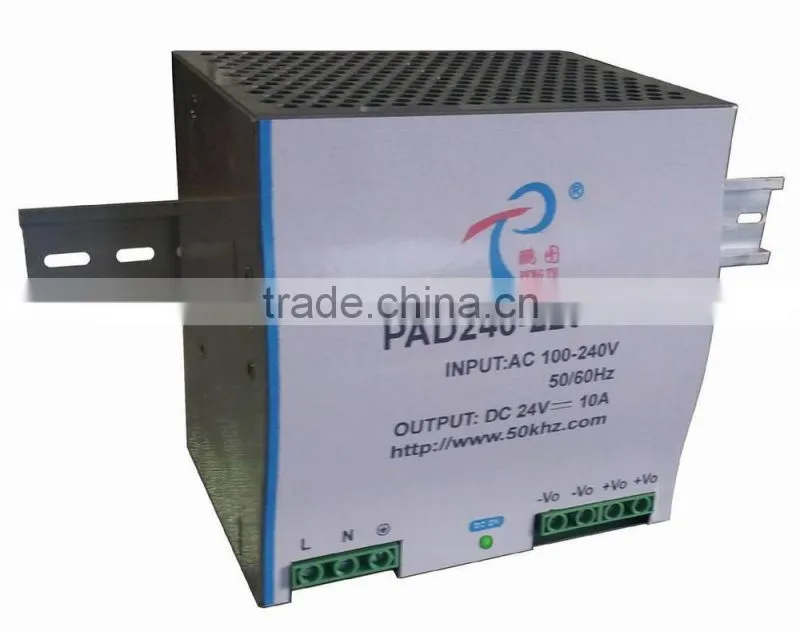

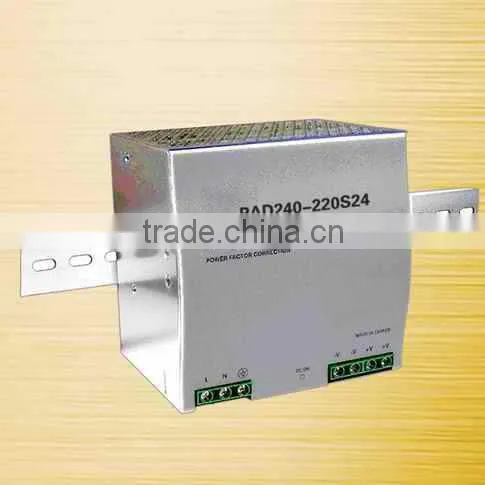

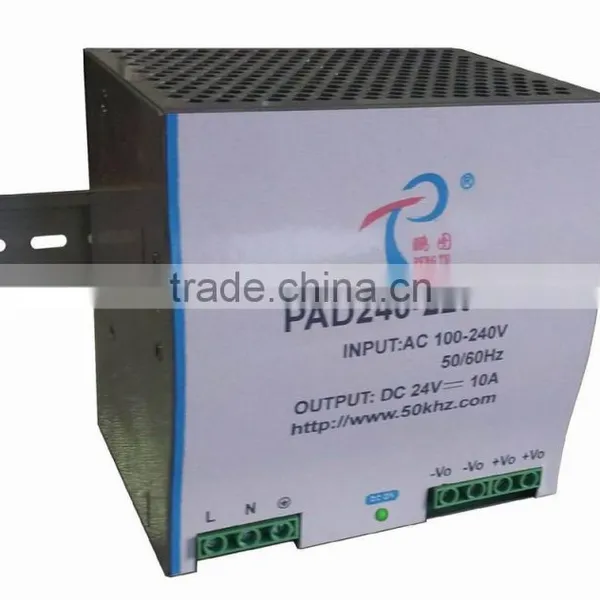

Help CenterPAD240 Series 240W DC/DC Din Rail Voltage Converter
Related Products
-
PAD45 Series 15-45W Din Rail Power Supply AC/DC Din Rail Power SupplyNegotiableMOQ: 1 Piece -
PAD75 Series 75W DC/DC Din Rail Power SuppliesNegotiableMOQ: 1 Piece
-
PAD75 Series 75W DC Din Rail Switch Power SupplyNegotiableMOQ: 1 Piece
-
PAD45 Series High Quality Low Price Din Rail Regulated Power SupplyNegotiableMOQ: 1 Piece
-
PAD120 Series Hot Sale DC/DC Din Rail Power Switching EquipmentUS$ 1 - 25MOQ: 1 Piece
Specifications
PAD240 Series 240W din rail voltage converterUniversal AC input voltage
PAD240 Series 240W din rail voltage converter DC/DC din rail voltage converter
Features
l Universal AC input voltage
l Install DIN-RAIL TS35/7, 5 or 15
l Using lead-free process, According with environmental protection RoHS requirement main index
l Insert PFC main index
Input Characteristic
l Inputvoltage range…………………… 90 ~ 240VAC / 140~340VDC l Input inrush current …………………… cold start, 45A / 230V
Output Characteristic
l Adjustable extent of foutput voltage ……… 12V: 12 ~ 14V, 24: 24 ~ 28V, 48V: 48 ~ 53V
l Overloadprotection …………Over current point in 105% ~ 150% when constant current limit flow, self-reset
l Over-voltage protection ……………………… 24VDC (30-36V); 48VDC(54-60V), Restart
l Over temperature protection ………………… shut off, Temperature recovery
General Characteristic
l Insulationcharacteristic …input and output : 1.5KVAC, input and case : 1.5KVAC, output and case : 0.5KVAC 1MIN

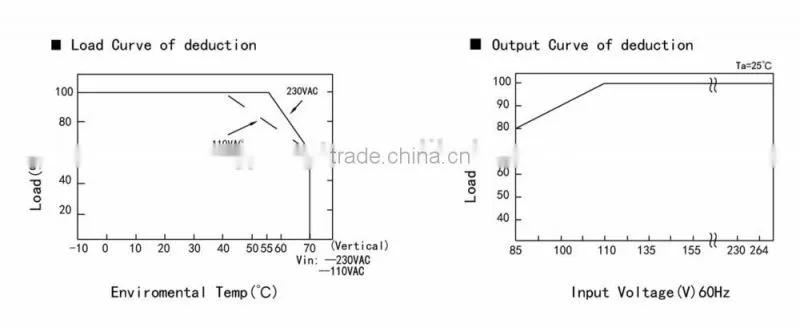

l Operating temperature …-10 ~ +60℃ (See the output drop load curve)
l Safety Certification ………Reference through the UL508, TUV EN60950-1 certification
l EMC Standards ………… EN55022 class B, EN61000-3-2.3 ENV50204, EN-61000-6-2
l Industrial standard ………EN61000-4-2, 3, 4, 5, 6, 8, 11
l Modeof connection………input : 3 points, output : 4 point screw DIN terminal
l Dimension(W*H*D)mm : 125.5*125.2*100MM
Models
| Model | Output Lines | Power (W) | Output V.(V) | Output Curr.(A) | Ripple (mv) | Efficieency (%) |
| PAD240 Series 240W | ||||||

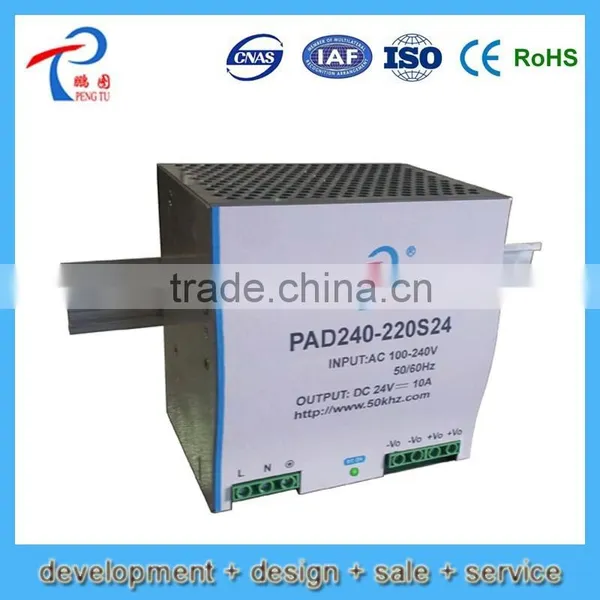

| PAD240-220S24 | Single | 240 | 24 | 10 | 100 | 84 |
| PAD240-220S48 | 48 | 5 | 200 | 85 | ||
Remarks: Custom-made specifications are acceptable.

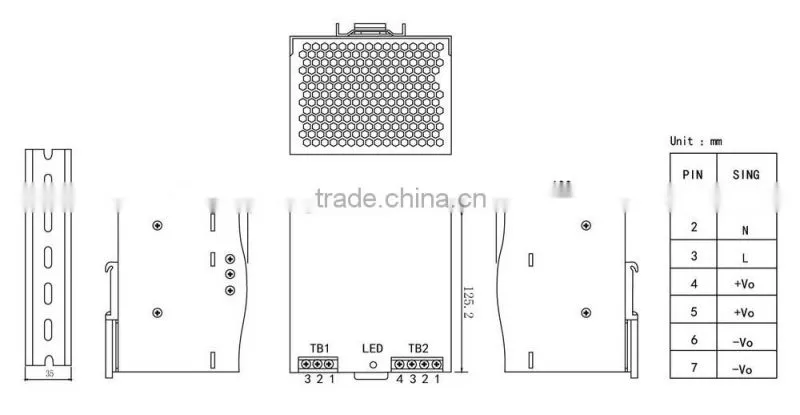

Mechanical drawing and pin definition
