Specifications
PAD45 Series 15-45W regulated power supplyProtections: short circuit, overload, overvoltage/ overtemp. for option

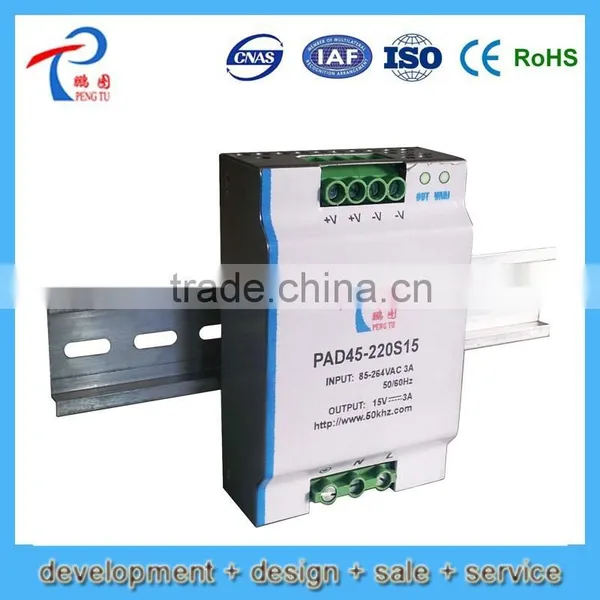

PAD45 Series high quality low price din rail regulated power supply
1.Notice:
We do have enough ability to produce custom-made order.
Samples are available
High quality and low price .
If need samples, Kindly contact us
3 years warranty
If you can not find the required products below, pls feel free contact with us! We can supply you all kinds of switching power supply.
Features
l Universal AC input voltage
l Built-in active power factor to correct circuit
l With short circuit protection/ overloadprotection / over-voltage protection / optional over temperature protection
l Naturally Air-cooled
l Install DIN-RAIL TS35/7, 5 or 15
l Comply with UL508 (Industrial Control Equipment) Standard
l 100% full burn-in test
l LED indicatorm for working condition
l Using lead-free process, According with Environmental protection RoHS requirement main index
l Applied in household automation and control engineering main index
Input Characteristic
l Inputvoltage range…………………… 90 ~ 264VAC / 140~340VDC l Input inrush current …………………… cold start, 40A / 230V
Output Characteristic
l Adjustable extent of foutput voltage ……… 12V: 12 ~ 14V, 24: 24 ~ 28V, 48V: 48 ~ 53V
l Overloadprotection …………Over current point in 105% ~ 150% when constant current limit flow, self-reset
l Over-voltage protection ……………………… Rated output voltage of 115% ~ 142% when shut off, self-reset
l Over temperature protection ………………… shut off, Temperature recovery
General Characteristic
l Insulationcharacteristic …input and output : 3KVAC, input and case : 1.5KVAC, output and case : 0.5KVAC 1MIN
l Operating temperature …-10 ~ +60℃ (See the output drop load curve)
l Safety Certification ………Reference through the UL508, TUV EN60950-1 certification
l EMC Standards ………… EN55022 class B, EN61000-3-2.3 ENV50204, EN-61000-6-2
l Industrial standard ………EN61000-4-2, 3, 4, 5, 6, 8, 11
l Modeof connection………input : 3 points, output : 4 point screw DIN terminal
l Dimension(W*H*D)mm : 105*66*35.2MM
Models
| Model | Output Lines | Power (W) | Output V.(V) | Output Curr.(A) | Ripple (mv) | Efficieency (%) |
| PAD45 Series 15-45W | ||||||
| PAD45-220S12 | Single | 45 | 12 | 3.75 | 100 | 76 |
| PAD45-220S24 | 24 | 1.87 | 150 | 80 | ||
| PAD45-220S48 | 48 | 0.93 | 240 | 81 | ||
Remarks: Custom-made specifications are acceptable.
Mechanical drawing and pin definition
Our serive
1.Your inquiry will be reply within 24hours
2.Well-trained and experienced staffs to answer all your inquiries in English
3.We have strictly management on the production and quality control
4.We have our own factory and professional engineers team to help you to resolve the prombles
5.We are greatly to accept the sample order for testing our quality ,serive and your market.
Warranty term
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free new products or components based on the proof-documents.
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, we will provide paid service.
36
If you want to know more information ,pls feel free to contact us. Any feedback from you will be given the prompt attention and reply!
