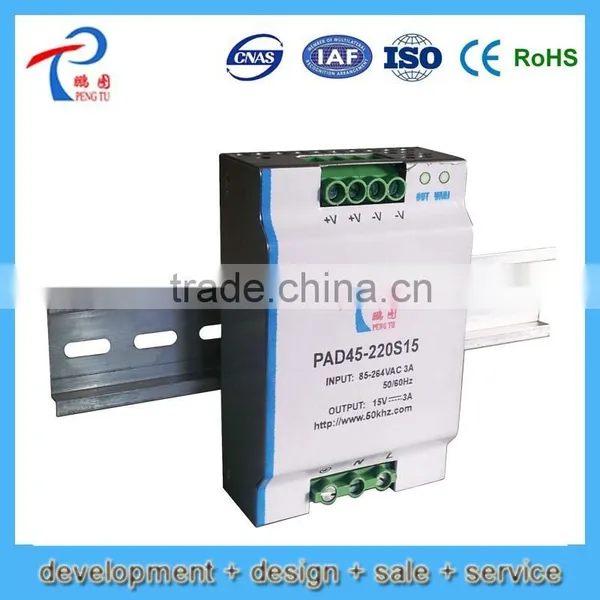

PAD45 Series 15-45W din rail power supplyProtections: short circuit, overload, overvoltage/ overtemp. for

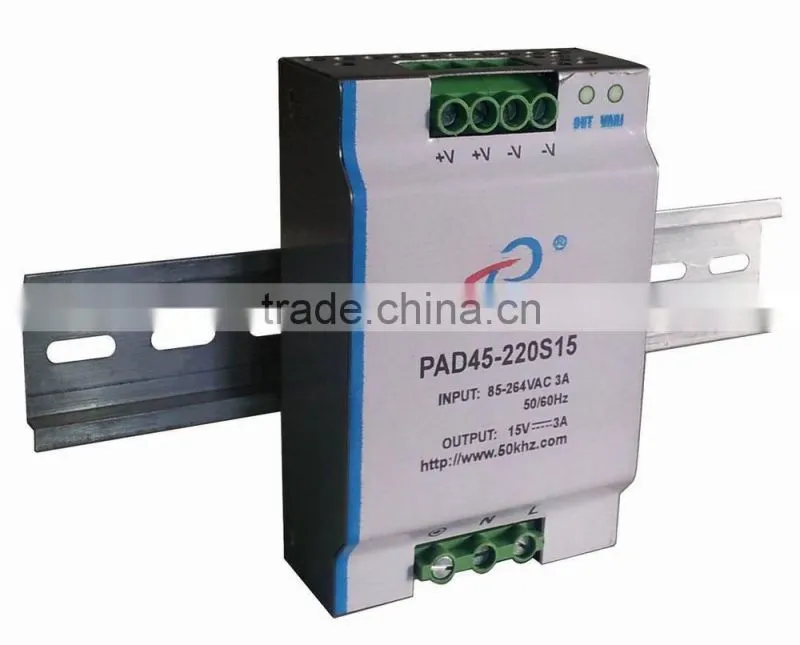

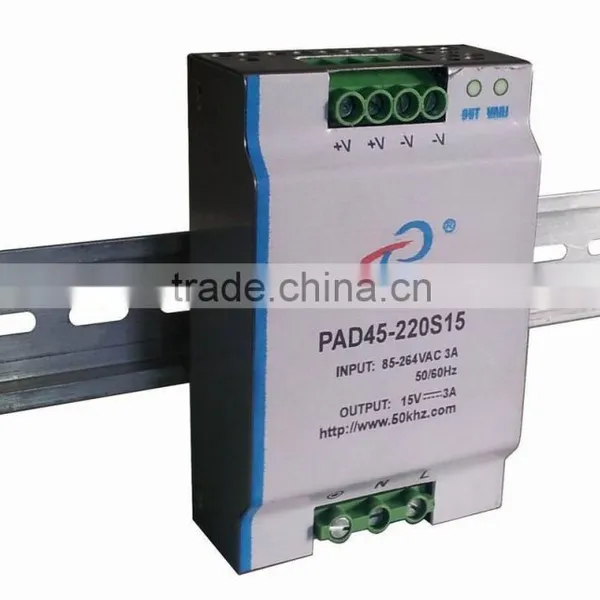

PAD45 Series 15-45W din rail power supply AC/DC din rail power supply
Features
l Universal AC input voltage
l Built-in active power factor to correct circuit
l With short circuit protection/ overloadprotection / over-voltage protection / optional over temperature protection
l Naturally Air-cooled
l Install DIN-RAIL TS35/7, 5 or 15
l Comply with UL508 (Industrial Control Equipment) Standard
l 100% full burn-in test
l LED indicatorm for working condition
l Using lead-free process, According with Environmental protection RoHS requirement main index
l Applied in household automation and control engineering main index
Input Characteristic
l Inputvoltage range…………………… 90 ~ 264VAC / 140~340VDC l Input inrush current …………………… cold start, 40A / 230V
Output Characteristic
l Adjustable extent of foutput voltage ……… 12V: 12 ~ 14V, 24: 24 ~ 28V, 48V: 48 ~ 53V
l Overloadprotection …………Over current point in 105% ~ 150% when constant current limit flow, self-reset
l Over-voltage protection ……………………… Rated output voltage of 115% ~ 142% when shut off, self-reset
l Over temperature protection ………………… shut off, Temperature recovery
General Characteristic
l Insulationcharacteristic …input and output : 3KVAC, input and case : 1.5KVAC, output and case : 0.5KVAC 1MIN
l Operating temperature …-10 ~ +60℃ (See the output drop load curve)
l Safety Certification ………Reference through the UL508, TUV EN60950-1 certification
l EMC Standards ………… EN55022 class B, EN61000-3-2.3 ENV50204, EN-61000-6-2
l Industrial standard ………EN61000-4-2, 3, 4, 5, 6, 8, 11
l Modeof connection………input : 3 points, output : 4 point screw DIN terminal
l Dimension(W*H*D)mm : 105*66*35.2MM
Models
| Model | Output Lines | Power (W) | Output V.(V) | Output Curr.(A) | Ripple (mv) | Efficieency (%) |
| PAD45 Series 15-45W | ||||||
| PAD45-220S12 | Single | 45 | 12 | 3.75 | 100 | 76 |
| PAD45-220S24 | 24 | 1.87 | 150 | 80 | ||
| PAD45-220S48 | 48 | 0.93 | 240 | 81 | ||
Remarks: Custom-made specifications are acceptable.

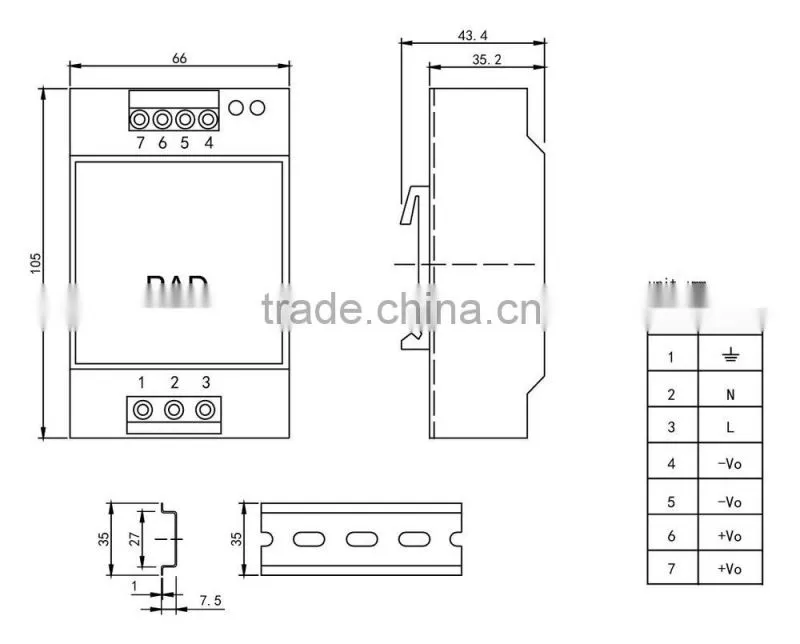

Mechanical drawing and pin definition
