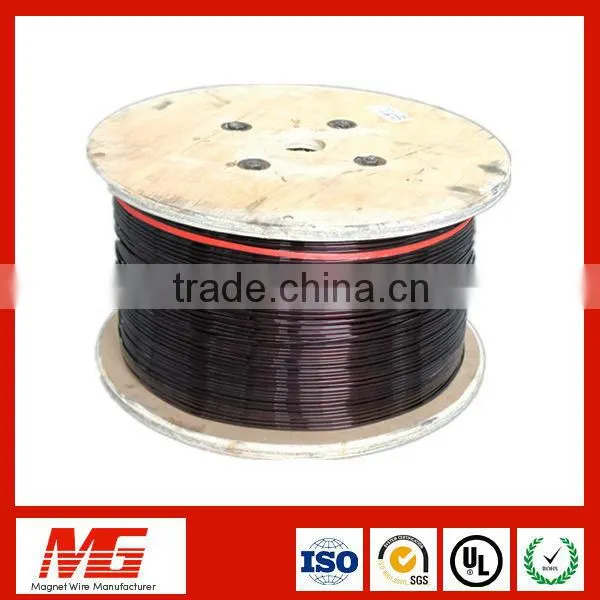

Size 0.20mm aluminium wire
HENAN MG MAGNET WIRE.,LTD. is a professional supplier of magnet wires and electrical materials. From the company founded till now, our company has been committed to providing professional Enameled Magnet wires , winding Magnet Wires and Electrical materials for customers.
An experienced and well mannered sales and marketing team is committed to bringing you 100% customer satisfaction. In order to succeed in the rapidly changing enameled magnet wire and winding magnet wire market, our company has instituted a development policy that emphasizes "Serving the customer, improving products, sureness and steadiness,providing best service,devotion and dedication".Please feel free to contact us at any time.
We will try our best to send the Size 0.20mm aluminium wire to your city as soon as possible. Carton and wooden box will be used as double protection to protect the product from wear and tear during transport.
We are a enterprise which is widely known in the industry for the excellent range of magnet wire products, which we offer to our customers. We are a high profile supplier, manufacturer and an exporter of a wide range of Enameled Wire ,which are made using a superior range.Our products are made available to the customers at very reasonable rates in the market.Main application including:
♦ Oil-immersed transformer windings;
♦ Motor, transformer, generator,welding machine;
♦ Medium and large electrical motor and transformer windings;
♦ Power substations,rectifiers,furnace transformer oil-immersed transformer coil winding;
♦ Lifting electromagnet,reactors and other low-voltage and high current electromagnetic winding;
♦ Used in aerospace,submersible motor and high voltage coil,wind turbines,micro-electronics and so on.
a) Excellent resistance to abrasion and solvent
b) Excellent electricity performance
c) Excellent heat shock, adherence and flexibility
d) High cut through
2.Advantages of our products
♦ Stable Quality
♦ Timely, continuous after-sales service
♦ Professional Tech and sales Work Team
♦ Safe and variety packing terms are available
♦ Double or Three Type Insultaions covered wires are available
♦ NEMA/IEC/JIS/GB and any Local Standards base on requirements
3. Reference parameter as follows
Name |
Enameled Aluminum Wire |
||
Type |
QZXYL-2/180 |
||
Diameter |
4.6mm |
||
Standard |
IEC60317-15 |
||
Test Item |
Unit |
Technical Requirement |
Test Result |
Appearance |
|
bright and clean, Uniform color, |
Ok |
Overall Diameter |
mm |
<4.737 |
4.735 |
Conductor Diameter |
mm |
±0.046 |
4.608 |
Thickness of insulation film |
mm |
>0.093 |
0.127 |
resistance |
Ω/m |
<0.001730 |
0.001509 |
Elongation |
|
>15% |
26% |
winding test |
|
3DWinding, no cracking |
no cracking |
Tensile Test |
|
Tensing No cracking |
no cracking |
Peel twist |
|
insulation film Without losing adhesion |
Ok |
Jerk test |
|
insulation film Without losing adhesion |
Ok |
Resistance to heat shock |
C |
200C insulation film no cracking |
3D half an hour, no cracking |
Resistance to solvent |
|
Standard solvent “H” Pencil |
2H is oK |
Breakdown Voltage |
KV |
2.5 KV |
7.6,7.0,8.1,6.9,7.9 |
package |
|
Meet the export standards |
Ok |
Quality Control Result |
|
Ok |
|
HENAN MG MAGNET WIRE.,LTD. is a professional supplier of magnet wires and electrical materials. Following is a brief introduction about the production process of enameled wire:
Discharge line -> Extruded &drawing -> Cleaning -> Painted -> Toasted & Cooled -> Spooling -> Testing -> Packing -> Shipping.
Our Company’s annual production is about 8,000 tons.
Our Company covers almost 100,000 square meters, including plant area of 80,000 square meters.
we have many kinds of products ,such as enameled aluminum wire, enameled copper wire, paper covered magnet wire, fiber glass covered magnet wire and so on.
We produce the thermal class of enameled aluminum wire from 130 to 220 Centigrade.
Gauge of enameled aluminum wire:Enameled round aluminum wire: 0.2mm-8.0mm Enameled flat aluminum wire: a: 1-10mm, b: 3-16mm
