Help CenterMini Elm327 WiFi OBD2 Obdii Diagnostic Tool
Related Products
-
2016 New Elm327 WiFi OBD2 Obdii Auto Diagnostic Scanner ToolUS$ 7.10 - 7.80MOQ: 10 Pieces -
Black WiFi Elm327 Wireless OBD2 Auto Scanner Adapter Scan ToolUS$ 6 - 9MOQ: 10 Pieces
-
Black WiFi Elm 327 OBD2 V1.5 for Android Ios Auto Diagnostic ScannerUS$ 4 - 8MOQ: 10 Pieces
-
Black WiFi Elm 327 OBD2 Obdii Elm327 V1.5 for Android IosUS$ 7.10 - 7.80MOQ: 10 Pieces
-
Mini Elm327 WiFi OBD2 Code Reader White Auto Scanner ToolUS$ 4 - 9MOQ: 10 Pieces
With ON/OFF Switch, Save Power!
Support OEM & ODM
| Add more OBD Protocols | YES! |
| Lable LOGO | YES! |
| Change Bluetooth Name | YES! |
| Set Unique MAC Address | YES! |
| Support OEM/ODM Product Packing | YES! |
| Change Product Shell | YES! |
| Minimum OEM Quantity | 1000PC |
Features:
*Works with OBD-II compliant vehicles.
*Software included in CD for Smartphone, PC and iOS (for iPhone, iPad, iTouch, Mac).
*Clear trouble codes and turn off the MIL ("Check Engine" light).
*Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning(over 3000 generic code definitions in the database).
Parameters Read from Vehicle:
Vehicle Speed
RPM
Fuel Consumption*
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim
And so on..
*Note: Vehicle may not support all above parameters. How many parameters you can get depends on the vehicle manufacturer's implementation.
Specifications:
Model: LZB12
Operating voltage: 9V-16V
Operating current: 45mA
Operating Humidity: less than 60%
Material: Plastic
Color: black
Size: 55mm*30mm*35mm
Net Weight: 38.7g
Multi-Protocol Support:
SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
Package Including:

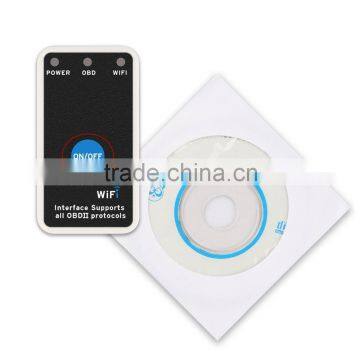

1 x ELM327 OBDII WIFI Adater
1 x CD ROM
Product Display
