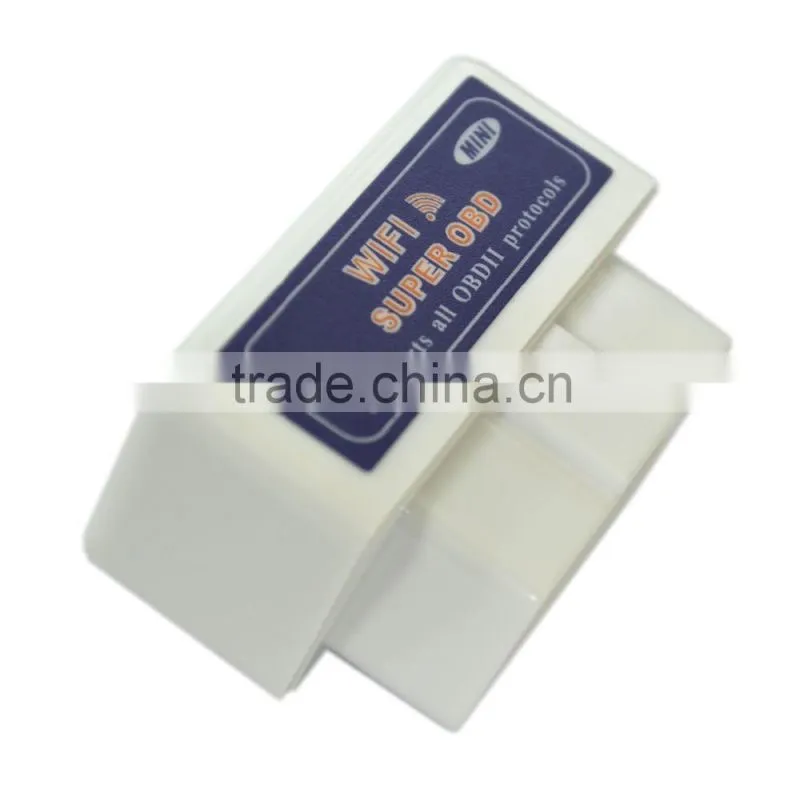

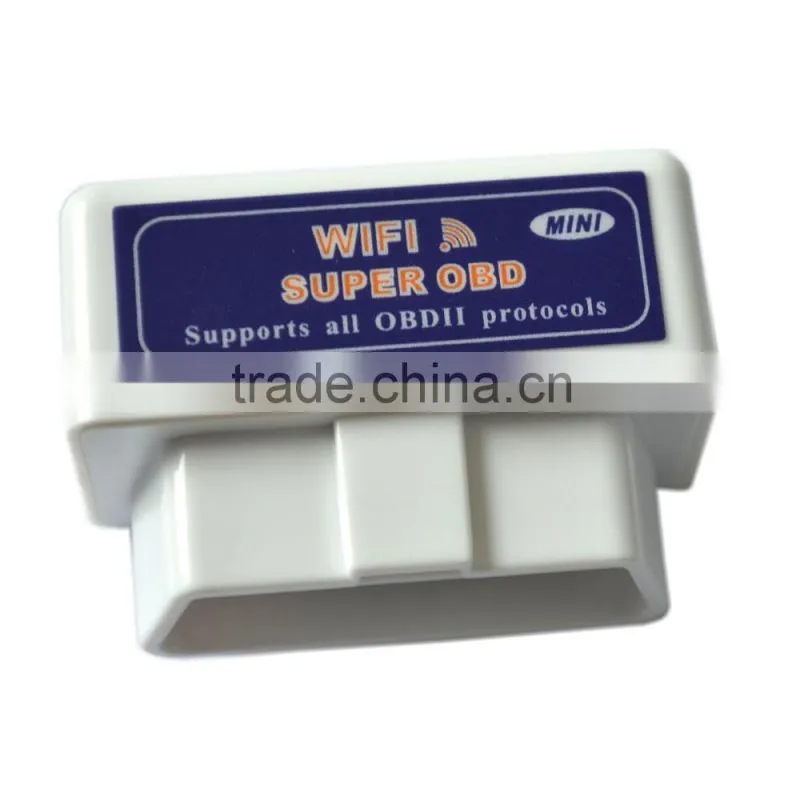

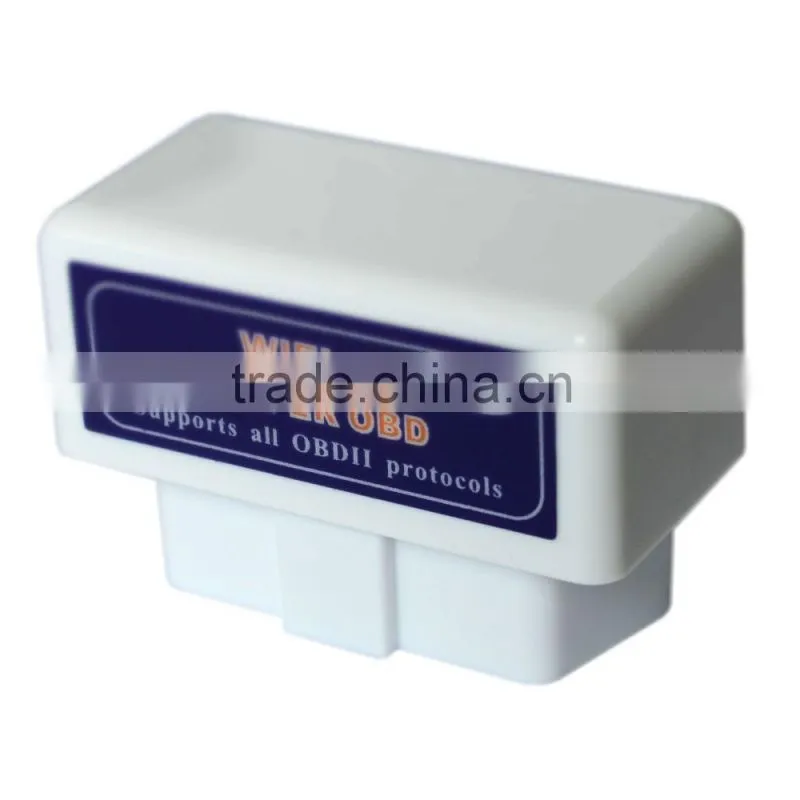

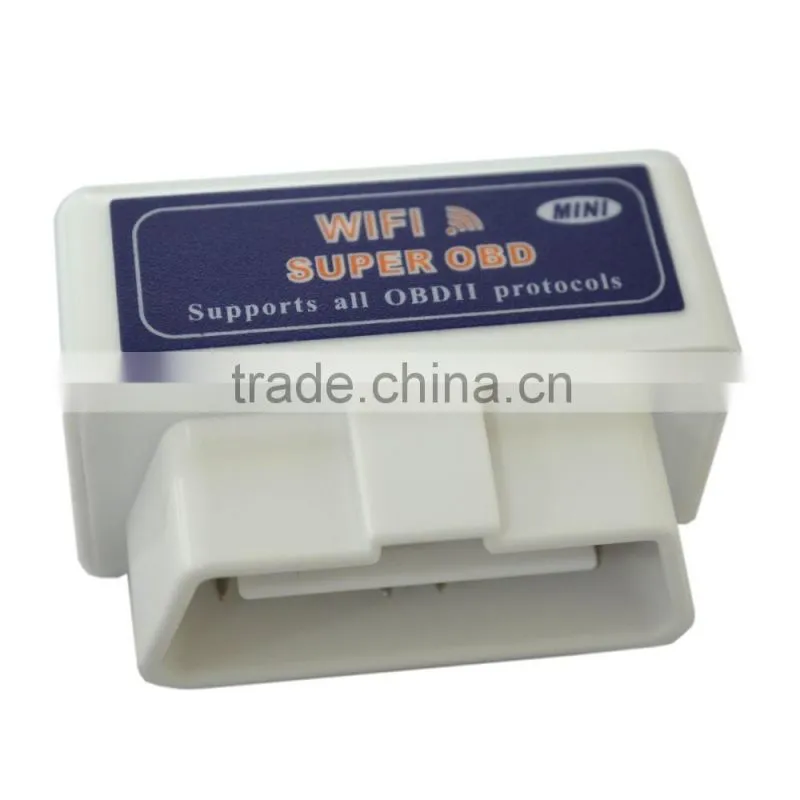

Help CenterMini Elm327 WiFi OBD2 Code Reader White Auto Scanner Tool
Related Products
-
Elm327 WiFi OBD2 Code Reader Black Auto Scanner ToolUS$ 6 - 9MOQ: 10 Pieces -
Black WiFi Elm327 OBD2 Auto Scanner Diagnostic ToolUS$ 3 - 9MOQ: 10 Pieces
-
Mini Elm327 WiFi Elm 327 White OBD2 OBDII Diagnostic Tool With Switch for IPhone/Android/Symbian/PCUS$ 10.00 - 10.80MOQ: 10 Pieces
-
Mini Elm327 WiFi Elm 327 White OBD2 OBD II Diagnostic Tool With Switch Works for IPhone/Ios/Android/Symbian/Windows PCUS$ 10 - 15MOQ: 10 Pieces
-
Black WiFi Elm327 Wireless OBD2 Auto Scanner Adapter ScannerUS$ 7.10 - 7.80MOQ: 10 Pieces
ELM327 For Android, iOS, Windows Devices!
Support OEM & ODM
| Add more OBD Protocols | YES! |
| Lable LOGO | YES! |
| Change Bluetooth Name | YES! |
| Set Unique MAC Address | YES! |
| Support OEM/ODM Product Packing | YES! |
| hange Product Shell | YES! |
| Minimum OEM Quantity | 1000PC |
Features:
*Works with OBD-II compliant vehicles.
*Software included in CD for Smartphone, PC and iOS (for iPhone, iPad, iTouch, Mac).
*Clear trouble codes and turn off the MIL ("Check Engine" light).
*Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over
*3000 generic code definitions in the database).
Parameters Read from Vehicle:
Vehicle Speed
RPM
Fuel Consumption*
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim
*note: Vehicle may not support all above parameters. How many parameters you can get
depends on the vehicle manufacturer's implementation.
Specifications:
Material: automotive grade plastic
Operating temperature: -15 to 100 Deg Celsius
SSID: WiFiOBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Multi-Protocol Support:
SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
Package Including:
1 x ELM327 OBDII WIFI Scanner
1 x CD ROM
Product Display:
