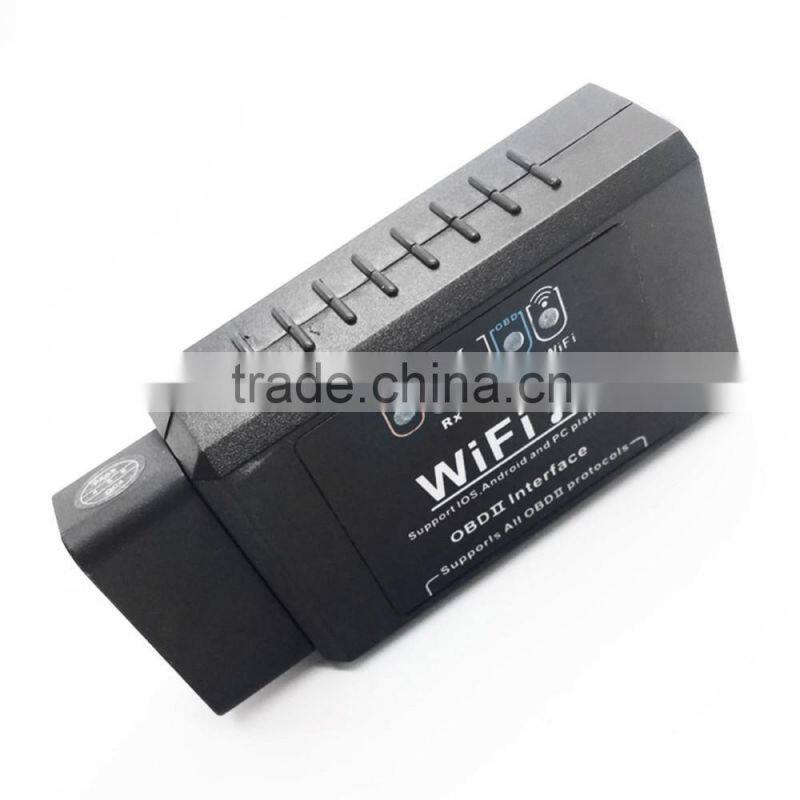

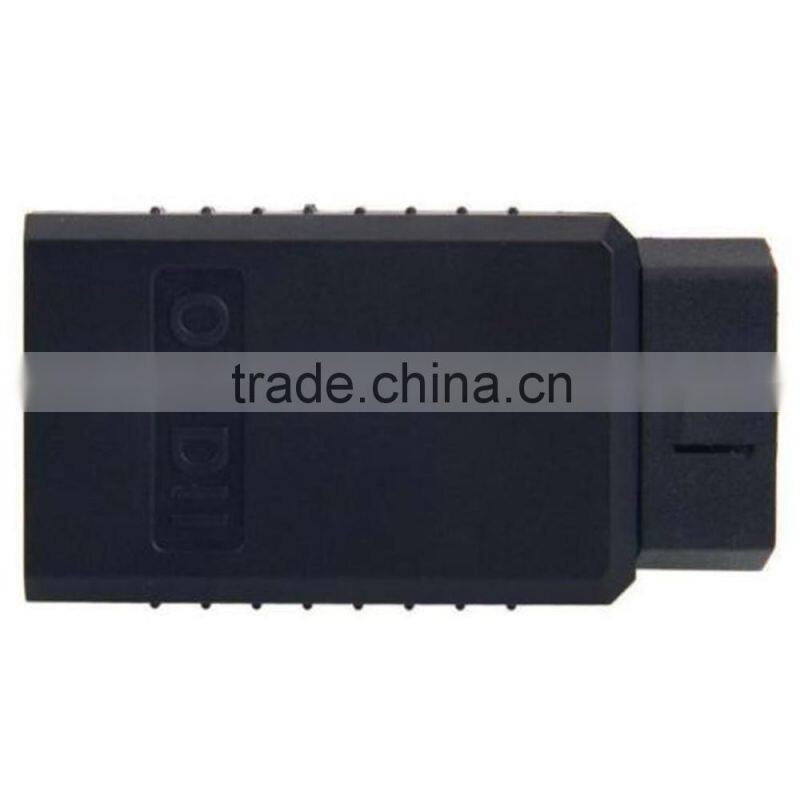

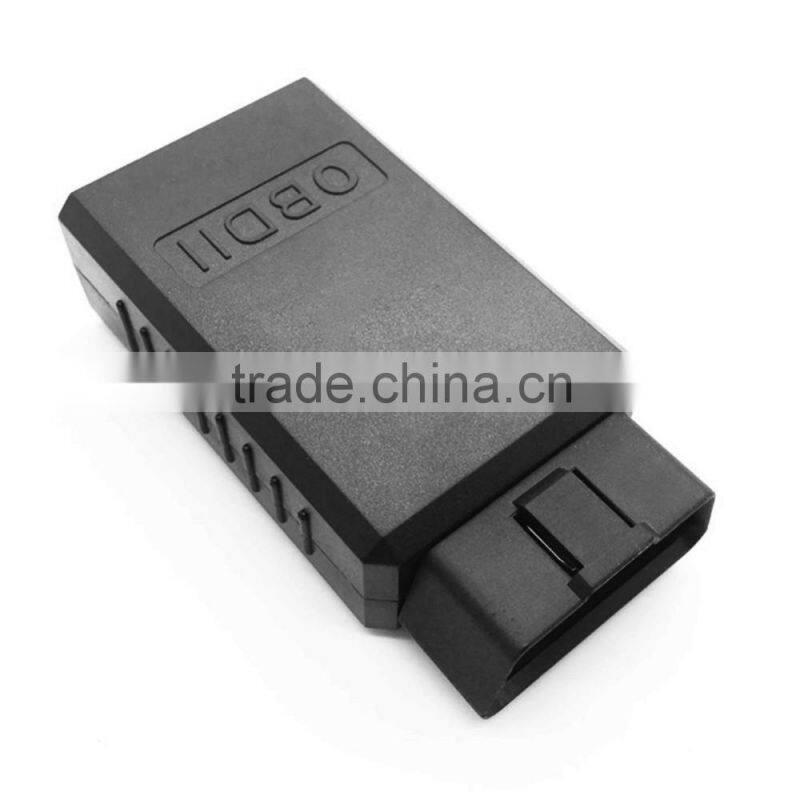

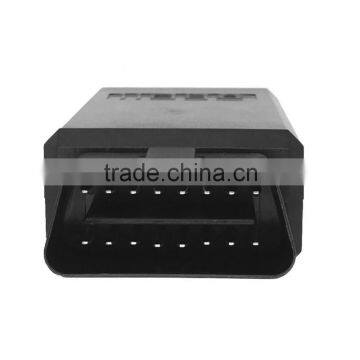

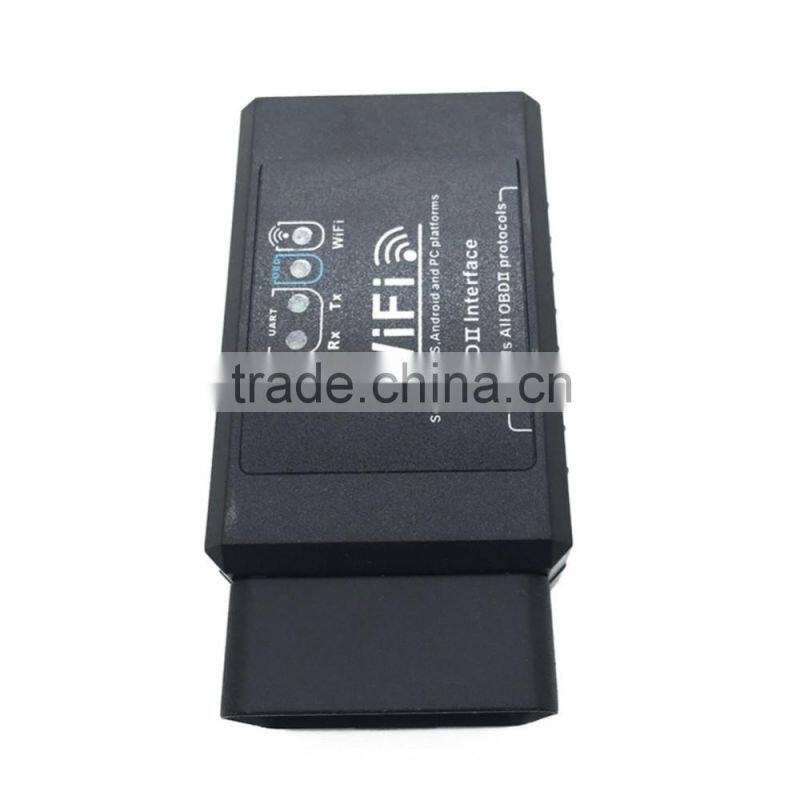

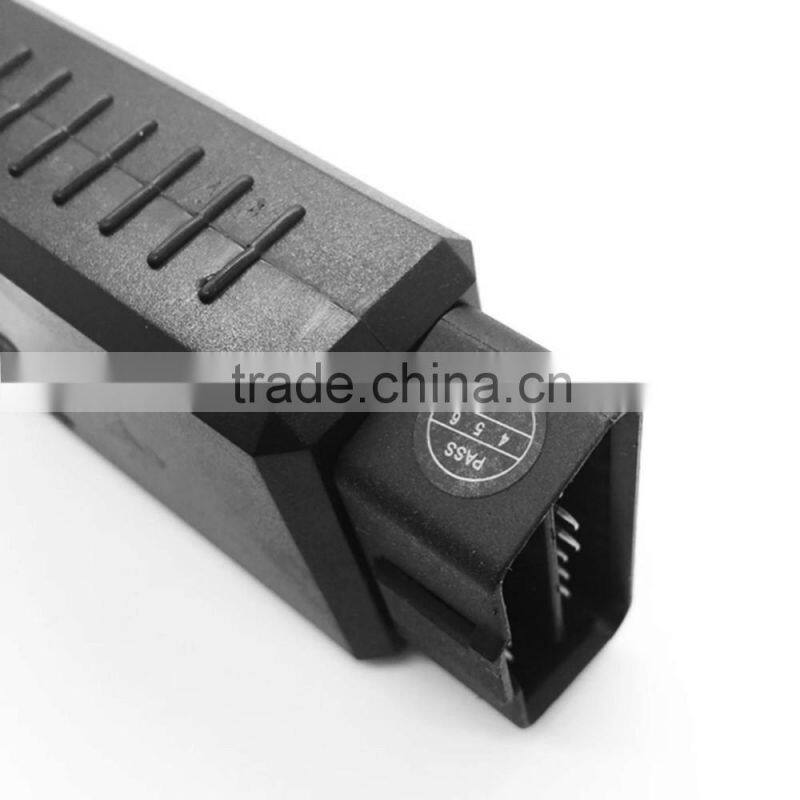

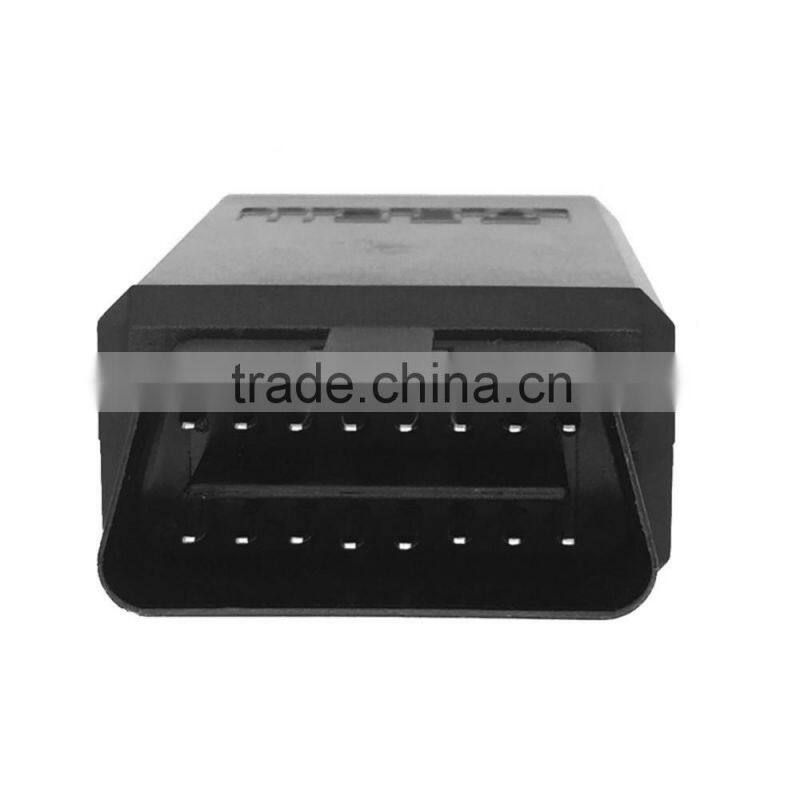

Hot Sale elm327 WiFi
WIFI327 OBD2 scanner is the latest PC-based scan tool.It supports all OBD-II protocols and is dispatched with a number of compatible programs. The output protocol (connection to laptop) is USB cable.It is easy to use and very useful to diagnose cars. It use WIFI327 software.
Function:

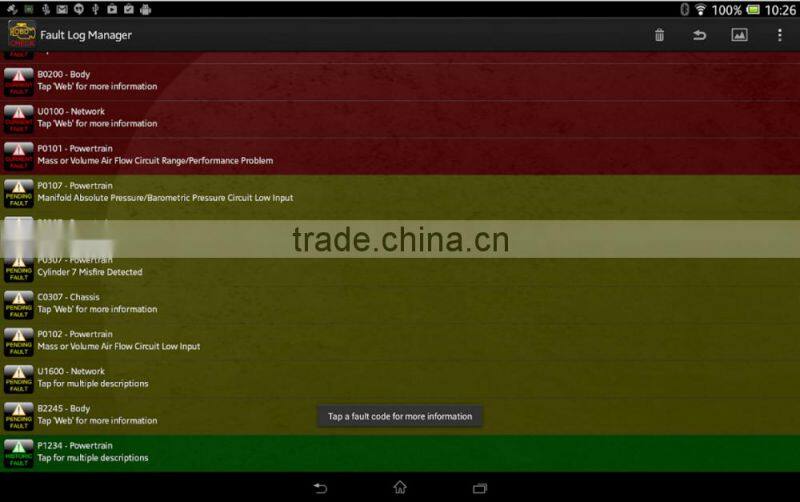

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including: Engine RPM; Calculated Load Value; Coolant Temperature; Fuel System Status; Vehicle Speed; Short Term Fuel Trim; Long Term Fuel Trim; Intake Manifold Pressure; Timing Advance; Intake Air Temperature; Air Flow Rate; Absolute Throttle Position;Oxygen sensor voltages/associated short term fuel trims; Fuel System status;Fuel Pressure.
Features:
*Works with OBD-II compliant vehicles.
*Software included in CD for Smartphone, PC and iOS (for iPhone, iPad, iTouch, Mac).
*Clear trouble codes and turn off the MIL ("Check Engine" light).
*Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over
*3000 generic code definitions in the database).
Parameters Read from Vehicle:
Vehicle Speed
RPM
Fuel Consumption*
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim
*note: Vehicle may not support all above parameters. How many parameters you can get
depends on the vehicle manufacturer's implementation.
Specifications:
Material: automotive grade plastic
Operating temperature: -15 to 100 Deg Celsius
SSID: WiFiOBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Item size: 9 * 5 * 3cm (3.5 * 2.0 * 1.2in)
Item weight: 75g/2.6oz
Multi-Protocol Support:
SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
Package Including:
1 x ELM327 OBDII WIFI Scanner
1 x CD ROM
Fashionable design!
Reasonable price!
Excellent quality!
Fast delivery!
| Add more OBD Protocols | YES! |
| Lable LOGO | YES! |
| Change Bluetooth Name | YES! |
| Set Unique MAC Address | YES! |
| Support OEM/ODM Product Packing | YES! |
| hange Product Shell | YES! |
| Minimum OEM Quantity | 1000PC |
