Home > Electrical & Electronics > Telecommunication & Broadcasting > VoIP Products > Goip16 Gsm Cdma Wcdma Voip Gateway, Camm Terminal, Pabx Gateway Manipulator

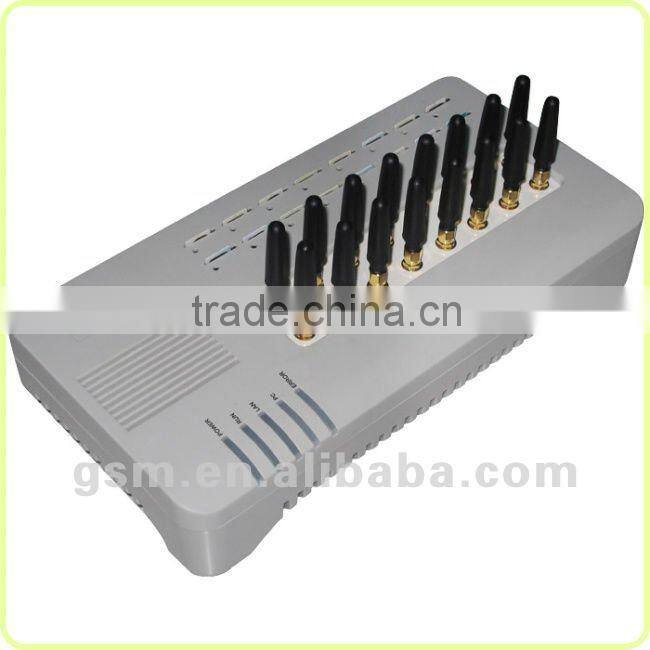

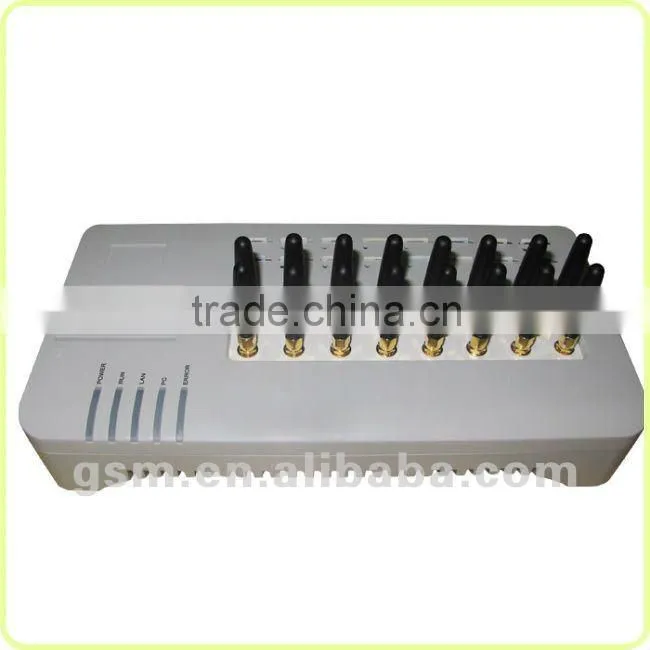

Goip16 Gsm Cdma Wcdma Voip Gateway, Camm Terminal, Pabx Gateway Manipulator

Name: Goip16 Gsm Cdma Wcdma Voip Gateway, Camm Terminal, Pabx Gateway Manipulator
Brand: SKYLINE, SKYLINE
SKU: 115477887
Availability: InStock

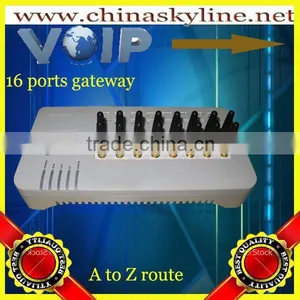

Goip16 Gsm Cdma Wcdma Voip Gateway, Camm Terminal, Pabx Gateway Manipulator thumbnail-1

Goip16 Gsm Cdma Wcdma Voip Gateway, Camm Terminal, Pabx Gateway Manipulator photo-1

US$ 1,200 - 1,200 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

SKYLINE, SKYLINE

Model Number:

GoIP-16, GOIP-16

Contact Supplier Request Quote Chat Now

Skyline (Shenzhen) Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name SKYLINE, SKYLINE

Model Number GoIP-16, GOIP-16

Type Other, VoIP Gateway, VoIP Gateway

Specifications

1 manipulator
2 autoimei change
3 support sms,vpn

goip16 gsm cdma wcdma voip gateway manipulator

Description:

Key Features

--Multiple GoIP16 grouping mode
--Provide 16 cellular channels for IP-PBX
--Open Standard VoIP Protocols (ITU H.323 V4 and IETF SIP V2)
--Single or Multiple Server Registrations
--Two 10/100 Ethernet circuits connect to the LAN and an additional device
--GSM module for making GSM calls
--Speech quality ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer
--VLAN and QoS support
--NAT Transversal and Router functions
--Voice prompts, HTTP Web, Auto Provision support for configuration and updates
--Highly stable embedded Linux operating system in high performance ARM 9 Processor
sim box
Basic Features

--LEDs for Power, Ready, Status, WAN, PC, GSM
--Call forward from GSM to VoIP and VoIP to GSM
--Dial in mode or dial out mode only
--Dial Plan
--Password protection for both GSM dial in or dial out
--Retransmit GSM Caller ID to VoIP terminal

sim box

Enhanced Features
--Dynamic selection of codec
--Advanced jitter buffer
--Automatic traversal of NAT and firewall
--VLAN / Qos
--Router
--Echo cancellation for Speakerphone
--Comfort noise generation (CNG)
--Voice activity detection (VAD)
--Auto provisioning (requires auto provisioning server)
--On line firmware upgrade
--Multi-language support: English and Chinese
sim box
Hardware Specifications
--Processor: ARM9E 133MHz
--DSP: VPDSP101 196MHz
--Memory: RAM 16MB/ Flash 4MB
--GSM Module: Type: 850MHz, 900MHz, 1800MHz, 1900MHz
--Power: Input AC100V ~ 240V, output DC12V/2A +-10%
--Power consumption: 32W maximum
--Network card: 100/10Base-T x2
--LED: Operation and lines light
--GSM Passway:16

--Operating temperature: 10°C to 40°C (32°F to 104°F)
--Storage temperature: 0°C to 50°C (32°F to 122°F)
--Working Humidity: 40% ~ 90% Not congealed
--Weight: 1203 g (1 lb) (Including AC/DC Adapter)
--Warranty: one year
sim box
Supported Standards
--ITU: H.323 V4, H.225, H.235, H.245, H.450
--RFC 1889 - RTP/RTCP
--RFC 2327 SDP
--RFC 2833 RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals
--RFC 2976 SIP INFO Method
--RFC 3261 SIP
--RFC 3264 Offer/Answer model with SDP
--RFC 3515 SIP REFER Method
--RFC 3842 A Message Summary and Message Waiting Indicator
--RFC 3489 Simple Traversal of User Datagram Protocol (UDP) Through Network Address --Translators (NATs)
--RFC 3891 SIP Replaces Header
--RFC 3892 SIP Referred-By Mechanism
--draft-ietf-sipping-cc-transfer-04 Session Initiation Protocol Call Control - Transfer
--Codec: G.711 (A/µ law), G.729A/B, G.723.1
--DTMF: RFC 2833, In-band DTMF, SIP INFO
