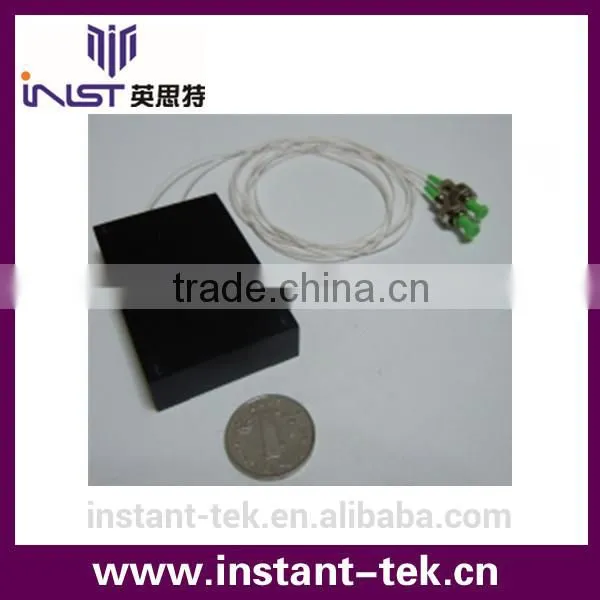

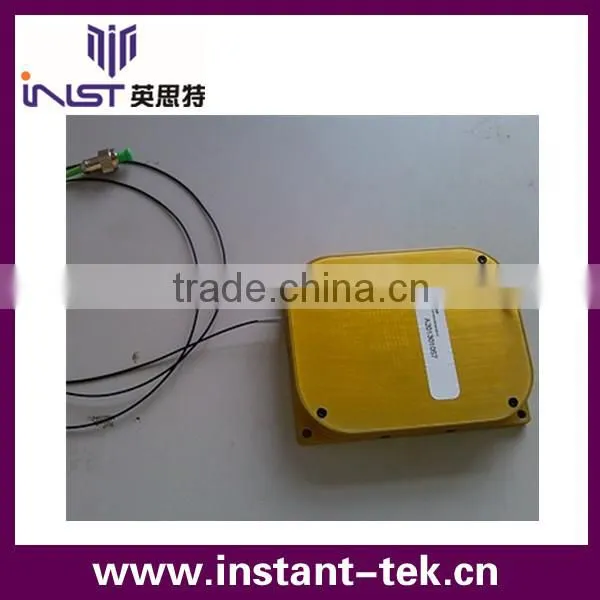

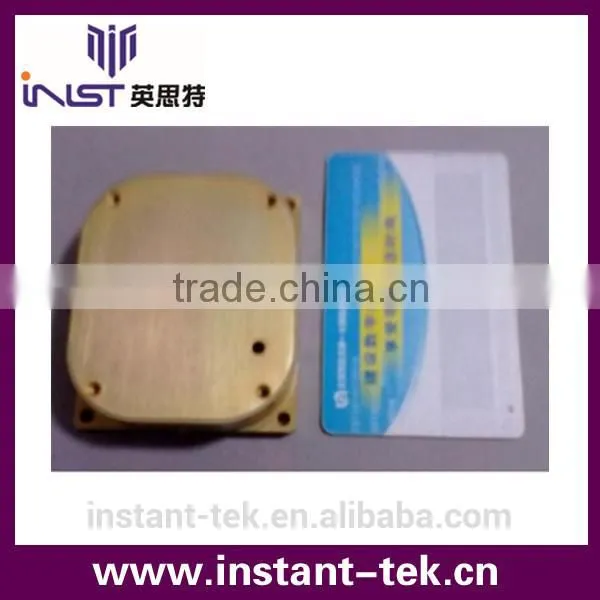

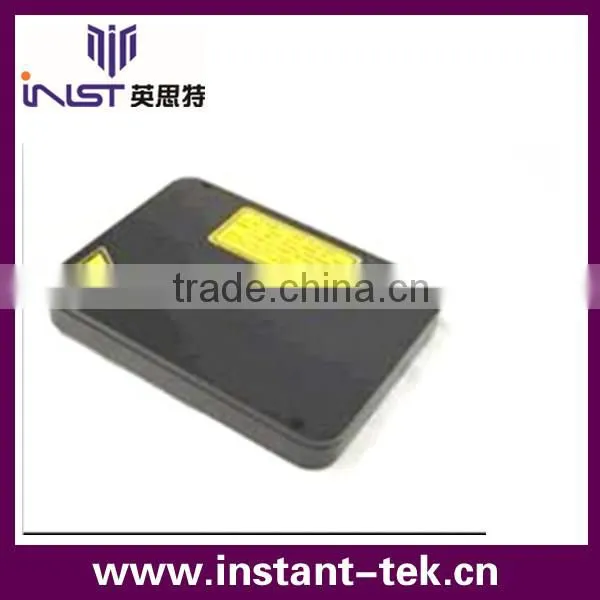

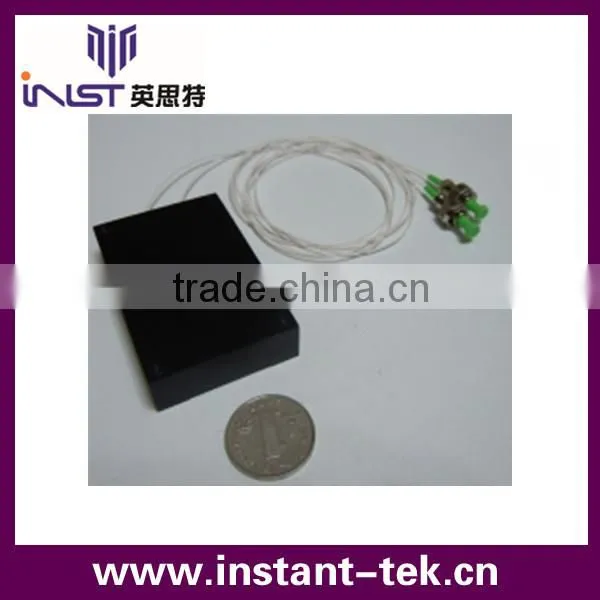

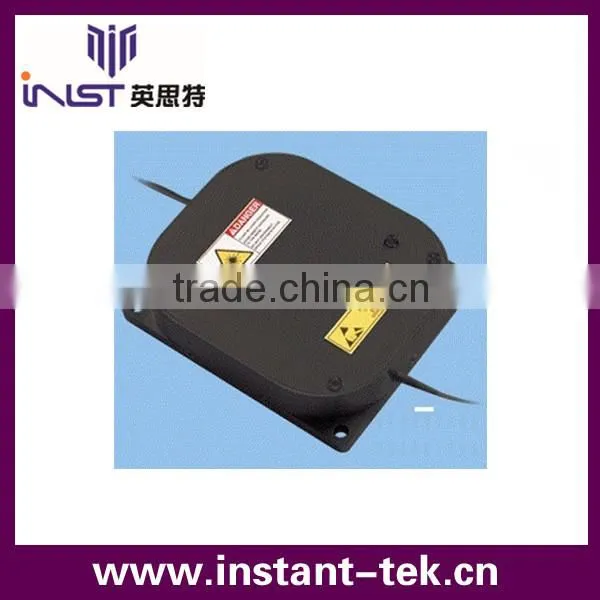

INST Optical EDFA Module edfa amplifier price
INST’s EDFA amplifier has been widely used in the field of optical fiber sensor and optical fiber
communication. The module supports either 980nm pump or 1480nm pump and three control modes (ACC, AGC, and APC). The product provides many advantages including high output power and broad wavelength range INST’s desktop EDFA amplifier is suitable for L-Band and C-Band systems and it can satisfy different requirements of users.
The EDFA amplifier can be driven by either AC220V power or DC 48 power and it provides a flexible human-computer interaction interface. The operating parameters are monitored on the liquid crystal display and the output optical Power can be reset through the operation panel. The optical fiber interface can be tailored to satisfy the requirements of users.
INST’s desktop EDFA amplifier supports RS232 and RJ45 communications with host computer through serial port and network port. The product is very suitable for the auto-testing in productions and scientific researches.
Parameters |
Units |
Min. |
typical |
Max. |
|
Wavelength range |
C band |
nm |
1528 |
|
1563 |
L band |
nm |
1571 |
|
1603 |
|
Input optical power |
dBm |
-40dBm |
|
+5dBm |
|
Saturated out power |
dBm |
|
|
25 |
|
Gain flatness |
dB |
- |
1 |
1.5 |
|
PDG |
dB |
|
|
0.5 |
|
PMD |
ps |
|
|
0.5 |
|
Input isolation |
dB |
45.0 |
|
|
|
Output isolation |
dB |
45.0 |
|
|
|
Operating temperature |
℃ |
-20 |
|
+65 |
|
Operating humidity |
% |
|
|
90 |
|
Noise figure |
dB |
<5.5 |
|||
Storage temperature |
℃ |
-40 |
|
+85 |
|
Power supply |
|
AC220V or DC48V |
|||
Optical connector |
|
FC/APC or customization |
|||
INST is a professional high quality industrial connectors manufacturer and a customized cable and mold provider. Our specialty is cabling and connection to customers specifications. At the same time, we provide different series of plus and sockets and various finger scanners.
INST has exported various waterproof connectors, harnesses, cable, plugs and sockets and mold to different of electrical devices and industrial equipment manufactures around the world.
Our vision: to be the most respected manufacturer.
A1: 1.100% high quality, all failed parts get free warranty within 30 days after received.
2.Accept 10 years warranty upon customer requirement.
3.Repairs parts are available within 10years; We will inform the EOL products to you from time to time.
Q2: What if the fiber optic sensing which we need have some differences on specifications from yours?
A2: Any difference, we can design and produce according to your requests, which includecolor, material, processing requirement etc.
Q3: How can I get a sample to check your quality?
A3: After price confirmation, you can require for sample to check our quality. Sample is free, but the freight charge should be paid.
l Optical fiber communications
l DWDM transmission system
l CWDM optic amplify
l Optical plus amplify
l Space optical communications
l Flexible control modes
l Friendly user interface
l Broad optical spectrum
l Excellent spectrum flatness
l High output power (up to 25dBm)
