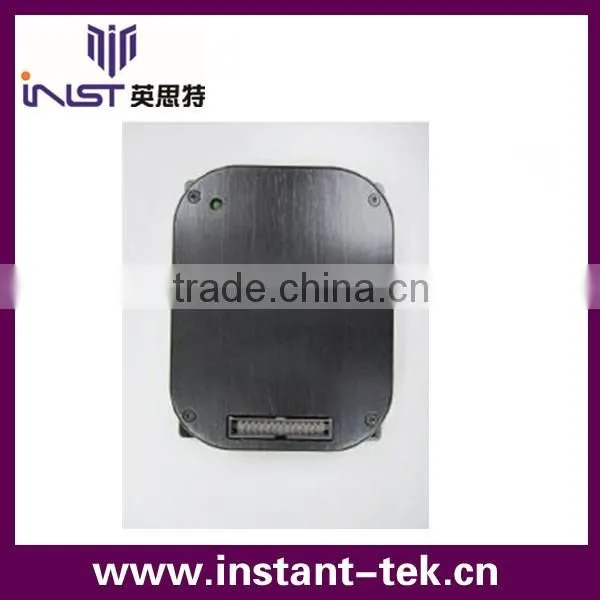

INST 1535-1560nm EDFA module
1. OVERVIEW:
INST’s EDFA module has been widely used in Ultra high speed optical system, 10G transmission channel in DWDM systems and many scientific research experiments. Also, it can be used to amplify the continuous and pulsed optical signal in fiber optic sensors and boost the output optical power. INST’s EDFA support either 980nm pumps or 1480nm pumps and AGC,ACC or APC control modes. The EDFA module is provided in a compact package and exhibits very good features in stability and reliability. INST’s EDFA module can be provided in different wave bands to satisfy the requirements of many customers, such as C-Band, L-Band and C+L Band.
INST’s EDFA can be easily integrated onto a communication system and can be provided in varieties of sizes. The EDFA module is driven by a power supply of DC5V, and supports user defined output power value and read the dynamic operational parameters of module through RS232 serial port communications with host computer.
2. Features
l Utmost reliability
l Broad wavelength range
l Excellent gain flatness and low ripple
l Light-dependent control in it
l Up to 25dBm output power
l Broad operating temperature range(-20℃~65℃)
3. Applications
l Ultra high speed optical commutation system
l DWDM systems
l CWDM systems
l 40Gb/s and 100Gb/s main fiber transmission line
l WDM devices tests
l Optical communication system

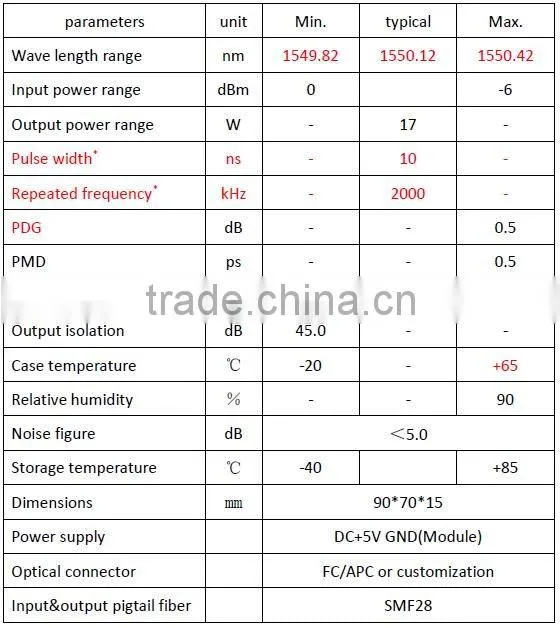

4. Specifications
5. Ordering Information:
PB-EDFA-M-bb-pp-f-cc/ccc
bb: wave band,CB:C-Band,LB:L-Band,CL:C+L-Band
pp:Output Power 13 = 13dBm
f:Optical fiber,0:900um SMF, 1:250um SMF
cc/ccc: connector type,such as FC/APC,SC/PC
6. Dimensions of the package
Packing: 1. plastic bag 2. carton 3. Customize
Shipping:We could offer various shipping solutions for your choice, competitive express freight such as DHL/ FedEx/ UPS...
