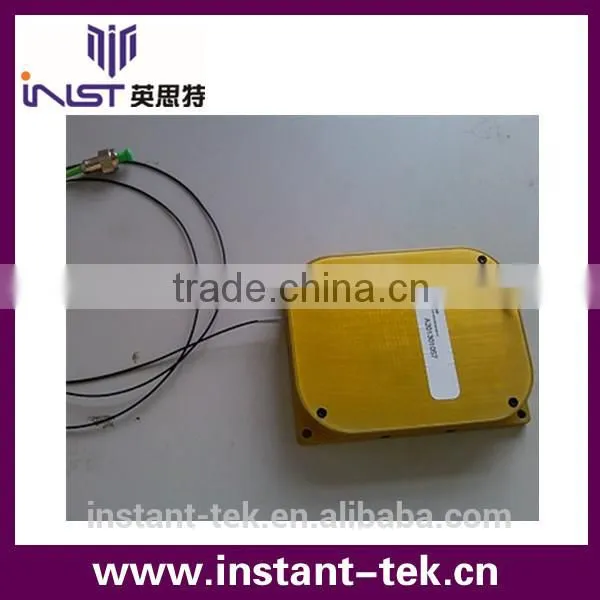

INST C-Band 1550nm Standard Benchtop or Module ASE Broadband Optical Light Source
Parameter |
unit |
Min. |
Typical |
Max. |
Wavelength range |
nm |
1528 |
|
1563 |
Output power range |
dBm |
-40dBm |
|
+10dBm |
Saturated output power |
dBm |
|
|
25 |
Gain flatness |
dB |
- |
1 |
1.5 |
Polarization dependent gain(PDG) |
dB |
|
|
0.5 |
Polarization mode dispersion (PMD) |
ps |
|
|
0.5 |
Input isolation |
dB |
45.0 |
|
|
Output isolation |
dB |
45.0 |
|
|
Operating Temperature |
℃ |
-20 |
|
+65 |
Operating humidity |
% |
|
|
90 |
Noise Figure |
dB |
<5.5 |
||
Storage Temperature |
℃ |
-40 |
|
+85 |
Power supply voltage |
|
DC+5V GND |
||
Pigtail connector |
|
FC/APC |
||
In & out optical fiber |
|
SMF28 |
||
EDFA is compact packaged and provides two kinds of Mini configurations. One is a 90mm*70mm*15mm module(MSA) and the other is 45mm*70mm*15mm(only 1/2MSA). The two modules are very suitable for dense integrated into optical fiber systems. The two modules are widely used in high speed optical fiber transmission systems. DWDM transmission channels and many scientific research experiments. The module supports either 980nm or 1480nm pump and three different working modes (ACC, AGC, and APC). The module is compact packaged and exhibits utmost stability and high reliability. PhotoByte’s Mini-EDFA module supports L-Band and C-Band and it can satisfy different requirements of users. MiniEDFA module can be easily integrated into an optical systems and can be provided in two different configurations. The EDFA module is driven by a power supply of DC5V, and supports user defined output power value and read the dynamic operational parameters of module through RS232 serial port communications with host computers.
INST is a professional high quality industrial optical fiber amplifier manufacturer and a customized light source and mold provider. Our specialty is high quality and connection to customers specifications. At the same time, we provide different series of plus and sockets and various finger scanners.
INST has exported various amplifier, light source and mold to different of electrical devices and industrial equipment manufactures around the world.
Our vision: to be the most respected manufacturer.
A1: 1.100% high quality, all failed parts get free warranty within 30 days after received.
2.Accept 10 years warranty upon customer requirement.
3.Repairs parts are available within 10years; We will inform the EOL products to you from time to time.
Q2: What if the amplifier which we need have some differences on specifications from yours?
A2: Any difference, we can design and produce according to your requests, which includecolor, material, processing requirement etc.
Q3: How can I get a sample to check your quality?
A3: After price confirmation, you can require for sample to check our quality. Sample is free, but the freight charge should be paid.
