Skyline GSM simbank 128/256 sim slots SIMBANK/box compatible with goip gsm modem sim server sms gateway !
Product description :
What is SIM?
- IC securely stores the service-subscriber key (IMSI)
- Encrypted communications for protectionSIM Bank with 32-Port sim server for GSM VoIP Gateway
- SIM cards are inserted in mobile devices
What is the Remote SIM ?
- Remote SIM separates SIM cards and mobile devicesSIM Bank with 32-Port sim server for GSM VoIP Gateway
- SIM cards are now inserted in SIM Bank
- SIM Emulators replaces SIM cards to communicate with mobile devices
Advantages of Remote SIM:
- Remote and Centralized Management of SIM cards
- Dynamic allocation of SIM cards
- No need to replace / recharge SIM cards on-siteSIM Bank with 32-Port sim server for GSM VoIP Gateway
- Hot swap of SIM Cards with no service interruptions
- Example: GoIP with Remote SIM support will no longer require on-site SIM Card replacement or recharge. Management of a group of GoIPs can be achieved remotely, efficiently, and cost-effectively.SIM Bank with 32-Port sim server for GSM VoIP Gateway

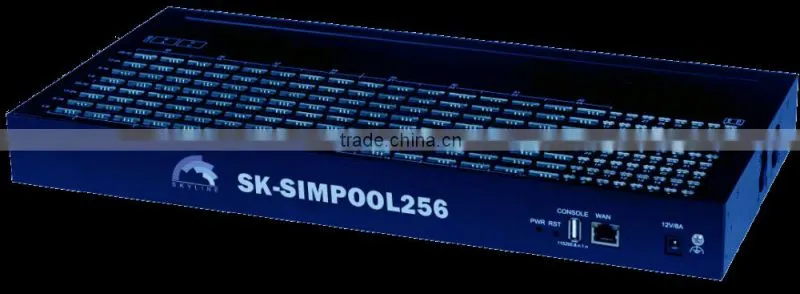

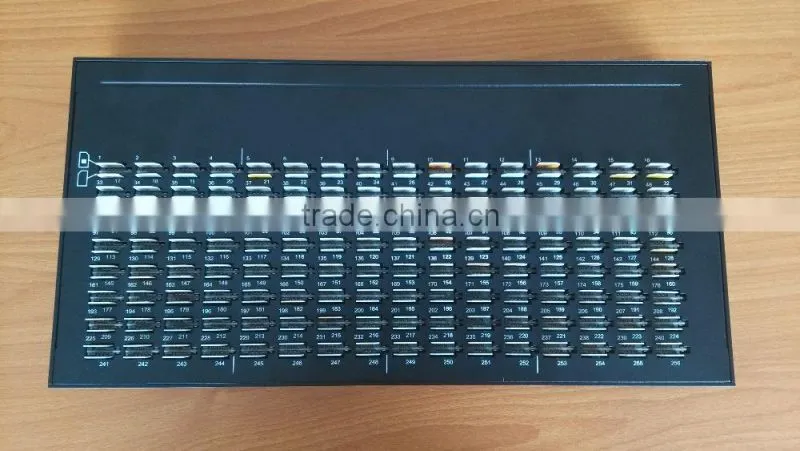

SIMPOOL128/256 is an equipment which can integrated storage SIM cards.
And its maximum capacity is 128/256 at present. It can be perfectly compatible with Ejoin ACOM series gateways.
With SIM server,SIM Pool can easily communicate with gateways via IP network.
In this way,we can manage the SIM cards remotely.
Special Features:
l 128/256 Channels Optional
l Web GUI: Firefox/Chrome /IE/Opera
l NAT Traversal and Firewall
l Hot Swap of SIM Cards without Powering Off
l QoS support
l Remote Manage of SIM Cards
l Multi-language Support: Chinese and English
l Dynamic Allocation of SIM Cards
l Protect SIM Cards from Blocking
l HTTP/TFTP Upgrade
Specification:
Model |
SIMPOOL128/256 |
Number of Sim |
128/256 |
Network Protocols |
DHCP/PPPoE/VPN(pptp) |
NTP | |
Telnet/HTTP/FTP/TFTP | |
Number of Ports |
1 WAN 10/100Base-T ethernet(RJ-45 connector) |
1 Console(USB) | |
LEDs |
1 Power and 256 groups of card online and running status indicator |
Power Supply |
100-240V AC, 50 - 60 Hz IN, 12V/3A OUT |
Operating Environment |
Operating temperature: 0 - 50ºC |
Operating humidity: 10 – 90%RH | |
|
Dimension (LxWxH) |
530*305*90mm |
Weight |
3.7kg |
Warranty |
12Months |
DHL,UPS,FEDEX,TNT,EMS(can ship to anywhere all over the world)
Skyline(shenzhen) Technology Co.,Ltd is founded in 2002, we have 70 employees and
more than 10 production lines. More than 100 companies have established business with us, and they are from 30 different countries.
Our company is a manufacturer of VoIP Gateways, with well equipped testing
equipment and strong technical force. With a wide range, good quality, reasonable
prices and stylish designs, our products are extensively used in communication industry and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
Application

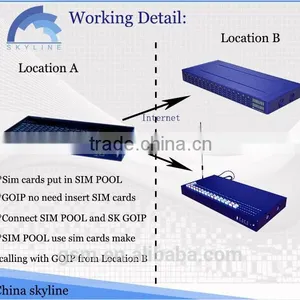

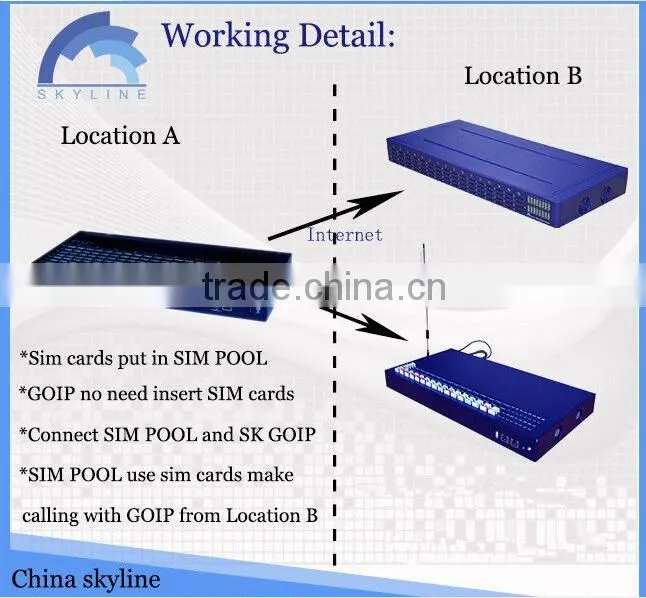

A:System architecture(Independent SIM Bank):
As shown in the above figure, several GoIP devices (up to 32 ways) be connected to the SMB32 through Internet. The SIM cards installed with the devices are all integrated to the SMB32 to be controlled and scheduled by the latter. (SIM Bank mode: server mode) SIM Bank with 32-Port sim server for GSM VoIP Gateway
B.System architecture(through SIM Bank)
More than 10,000 SIM cards be collectively scheduled and managed via the SIM Server. The planned tasks are allocated by the SIM Server (SIM Bank mode: client mode) SIM Bank with 32-Port sim server for GSM VoIP Gateway
C:Exchange logic(through SIM Bank)
we are professional manufacturer and can give you factory price.
we can give you professional free support services with the help of our technology support engineers.
