goip device
Quick Details
| Place of Origin: | Shenzhen,China (Mainland) | Brand Name: | SKYLINE | Model Number: | GOIP-32 |
| Type: | VoIP Gateway,voip gateway | Color: | gray | Weight: | 5KG |
| Sim port: | 32 | Support: | DHCP, PPPoE, FIX IP | Protocal: | SIP&H.323 |
| Operating temperature: | 10°C to 40°C | Storage Temperature: | 0°C to 50°C | Warranty: | one year |
Key Features
--Multiple GoIP32 grouping mode
--Provide 32 cellular channels for IP-PBX
--Open Standard VoIP Protocols (ITU H.323 V4 and IETF SIP V2)
--Single or Multiple Server Registrations
--Two 10/100 Ethernet circuits connect to the LAN and an additional device
--GSM module for making GSM calls
--Speech quality ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer
--VLAN and QoS support 32 port goip gsm gateway
--NAT Transversal and Router functions
--Voice prompts, HTTP Web, Auto Provision support for configuration and updates
--Highly stable embedded Linux operating system in high performance ARM 9 Processor
Basic Features
--LEDs for Power, Ready, Status, WAN, PC, GSM
--Call forward from GSM to VoIP and VoIP to GSM
--Dial in mode or dial out mode only
--Dial Plan
--Password protection for both GSM dial in or dial out
--Retransmit GSM Caller ID to VoIP terminal
Enhanced Features
--Dynamic selection of codec
--Advanced jitter buffer
--Automatic traversal of NAT and firewall
--VLAN / Qos
--Router
--Echo cancellation for Speakerphone
--Comfort noise generation (CNG)
--Voice activity detection (VAD)
--Auto provisioning (requires auto provisioning server)
--On line firmware upgrade
--Multi-language support: English and Chinese
Hardware Specifications
--Processor: ARM9E 133MHz
--DSP: VPDSP101 196MHz
--Memory: RAM 16MB/ Flash 4MB
--GSM Module: Type: 850MHz, 900MHz, 1800MHz, 1900MHz
--Power: Input AC100V ~ 240V, output DC12V/2A +-10%
--Power consumption: 32W maximum
--Network card: 100/10Base-T x2
--LED: Operation and lines light
--GSM Passway:32
--Operating temperature: 10°C to 40°C (32°F to 104°F)
--Storage temperature: 0°C to 50°C (32°F to 122°F)
--Working Humidity: 40% ~ 90% Not congealed
--Weight: 1503 g (1 lb) (Including AC/DC Adapter)
--Warranty: one year
Supported Standards
--ITU: H.323 V4, H.225, H.235, H.245, H.450
--RFC 1889 - RTP/RTCP
--RFC 2327 SDP
--RFC 2833 RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals
--RFC 2976 SIP INFO Method
--RFC 3261 SIP
--RFC 3264 Offer/Answer model with SDP
--RFC 3515 SIP REFER Method
--RFC 3842 A Message Summary and Message Waiting Indicator
--RFC 3489 Simple Traversal of User Datagram Protocol (UDP) Through Network Address --Translators (NATs)
--RFC 3891 SIP Replaces Header
--RFC 3892 SIP Referred-By Mechanism
--draft-ietf-sipping-cc-transfer-04 Session Initiation Protocol Call Control - Transfer
--Codec: G.711 (A/µ law), G.729A/B, G.723.1
--DTMF: RFC 2833, In-band DTMF, SIP INFO

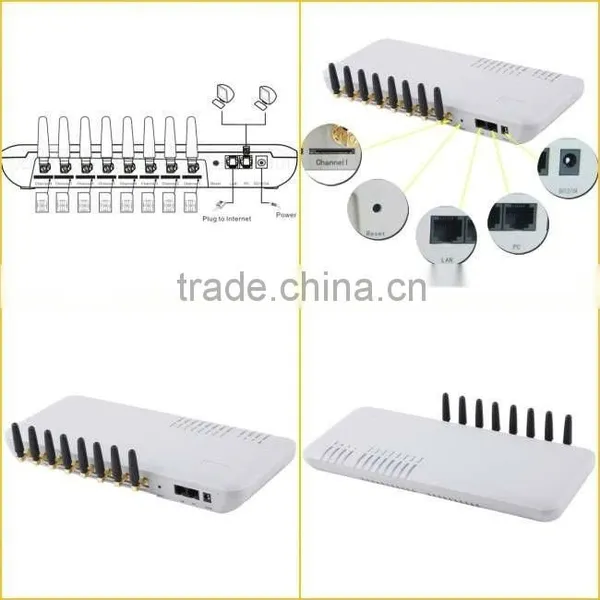

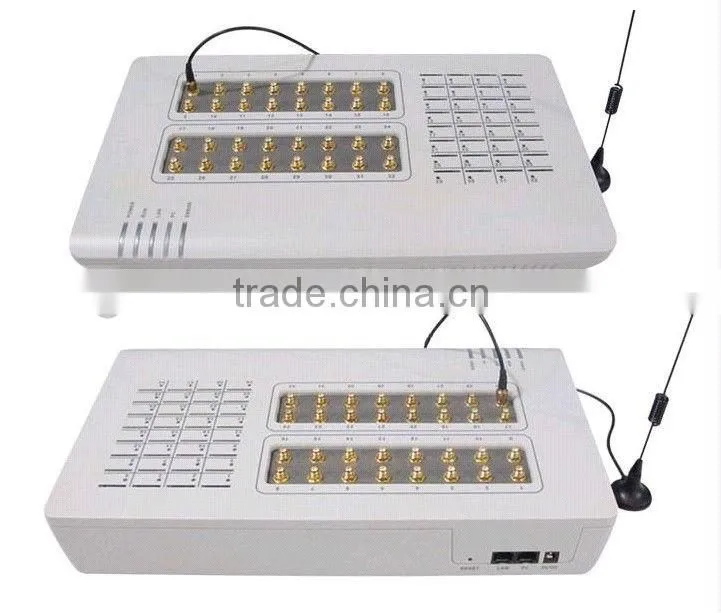

Pictures show
goip device
goip device
goip device
goip device
FAQ
1. What is the main funtion of the terminal gsm voip gateway GoIP? |
For call terminal |
2. Which software can be supported by GoIP? |
VOS,VPS,VoIP switch,3CX,P·B·Xes,free PBX,MOR |
3. What kind of hardware can be supported by GoIP? |
IPPBX and so on |
4. What is the bandwidth requested by GoIP? |
It is up to your voice code.G723 need 23kbps per channel,G729 need 34kbps,G711 need 90 kbps |
5. Is there any 32 ports or 64 ports GSM VOIP GATEWAY? |
We have new product 32 port goip now, 64 port goip is not yet developed. |
6. What is the difference between the new GoIP(antena bulit in)and the previous GoIP? |
The function is the same with the previous GoIP.The only difference is antena.New GoIP antena is bulit in the board. |
7. Which communication network can be supported by GoIP? |
GSM network |
8. How about our service? |
We have professional engineer to help you about all your tech problems anytime. |
9. What is our main shipping method? |
DHL,UPS,FEDEX,TNT,EMS(can ship to anywhere in the world) |
NOTES
>We provide stronge tech support about VOIP server and A-Z termination. (6 days*12 hours)
>We can help you rent a VoIP server in USA.
>We can provide copy version VOS.
>We can install Relay server, SMS server,SMB server for you.
(for free)
>We can offer voip terminal guide.
>We may need your termina routes.
>We offer full tech support untill your gateway runs.

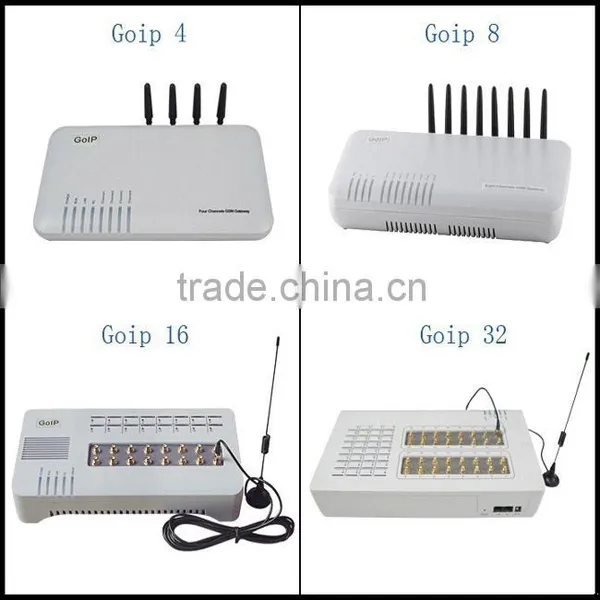

We have 4/8/16/32 port gsm gateway, if you have interest.
Pls contact me freely.
