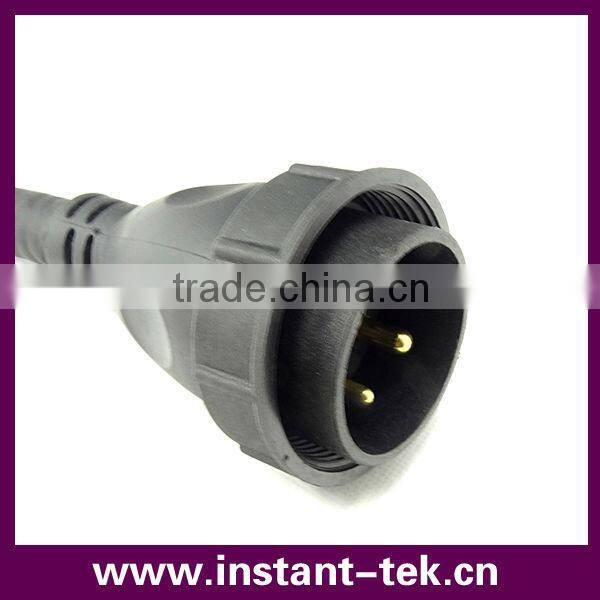

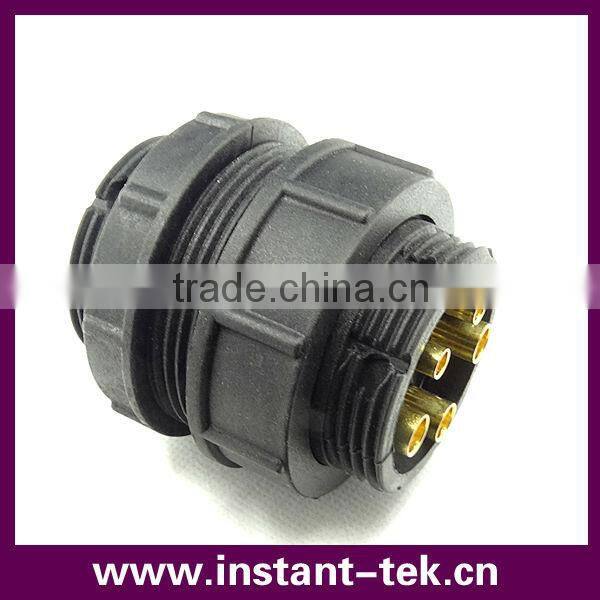

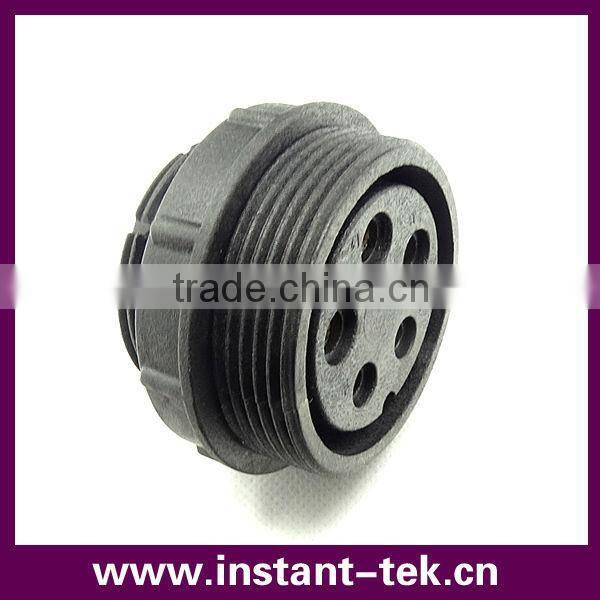

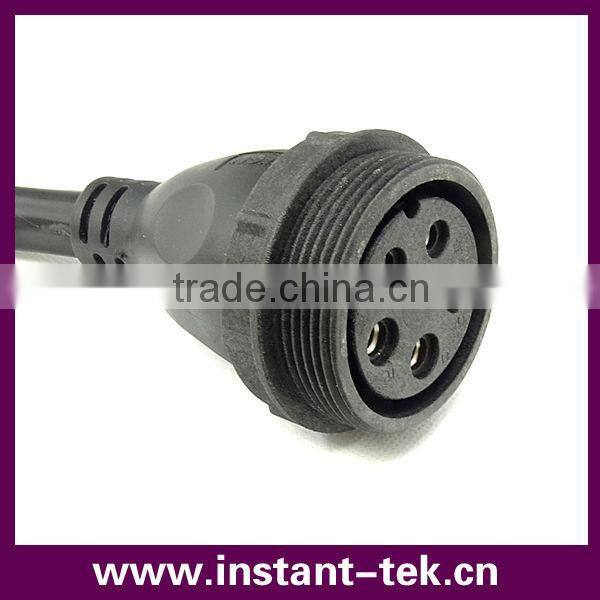

M58 bulk cable waterproof connector power cable
- 10000 Piece / Pieces per Month
- Shenzhen/HK
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | GoodLink | Model Number: | JKGL-M58 |
Type: | Other | Application: | Power | Gender: | Other, male female |
Product Description
Specifications
Waterproof connectors are widely used in various of electronic equipments,waterproof and un-waterproof monitor under water.
Specification
JKGL-M58 series waterproof connector are widely used in outdoors electronic equipments.
It is designed and produced by Shenzhen Instantware IT Co., Ltd. It's a IP68 waterproof product.
Description | Details | Code |
1. Connector Size | JKGL-M58 | M58 |
2. Current Rating | 60-100A | 60-100 |
3. Number of Contacts | 2,3,4,5 | 2-5 |
4. Connector Type | Without SR/SR | B/S |
5. Connector Gender | Male,Female | M,F |
6. Contact Gender | Male,Female | M,F |
7. Assembly Style | Field Installation /Molding(Solder) | M |
8. Mating Style | Screw | S |
9. Backs hell | Straight | L |
10. Waterproof Rating | IP67 | 7 |
Material: Core Material: PA6+30%GF UL94V0 Mold Material: Waterproof PVC Pin and Hole: Brass, Nickle Plated or Gold plated Sealing: Silicone Cable: Customize Other type cable for customize | ||
Property : Contact Resistance: <5mΩ Insulation Resistance: ≥500 MΩ at DC500V Breakdown Voltage: ≥2.5kV normal, 1.0kV water Temperature Rating: -45°C~+105°C Protection Ration: IP67, 300mm water half an hour Durability: 3K plug/Unplug Cycles
| ||
It is widely used in ·New energy ·LED ·Industrial control product ·Automotive ·Security product ·Power Supply ·Electric Vehicle ·Solar Energy ·IPC ·Various Mold It is high performance and competitive price. Welcome OEM/ODM.
|
About us
Shenzhen Instantware Information Technology Co., Ltd. is a manufacturer of waterproof connectors with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in outdoors LED, IPC and other industries. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
Photo show
