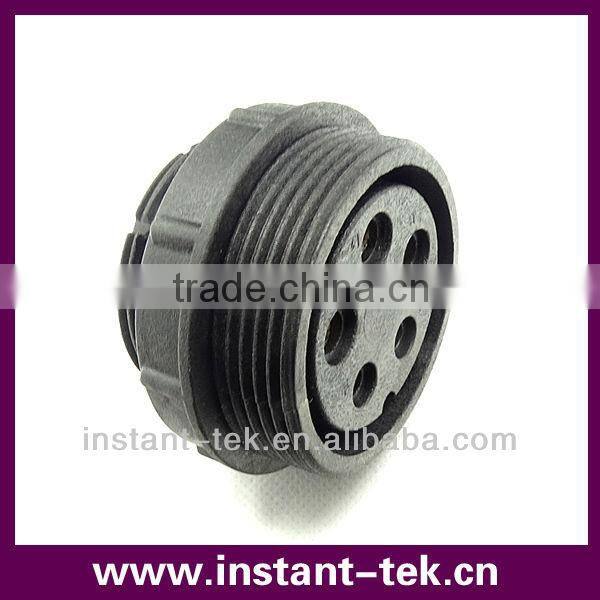

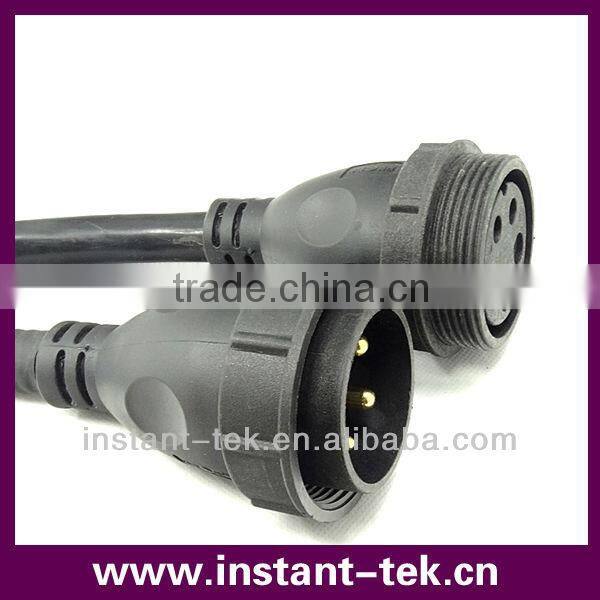

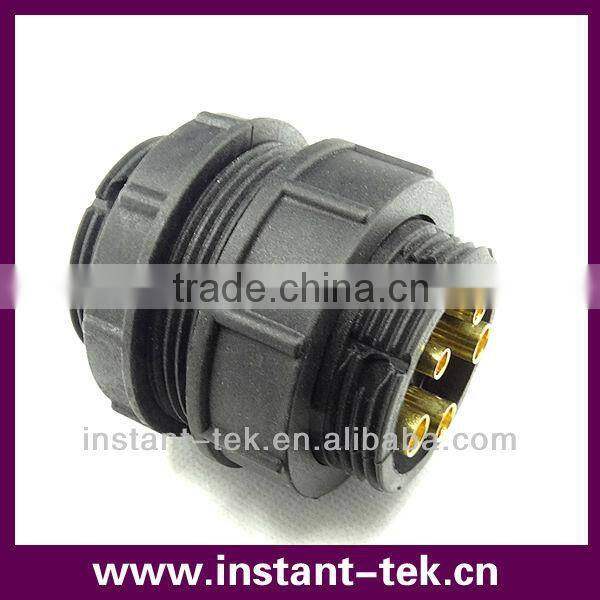

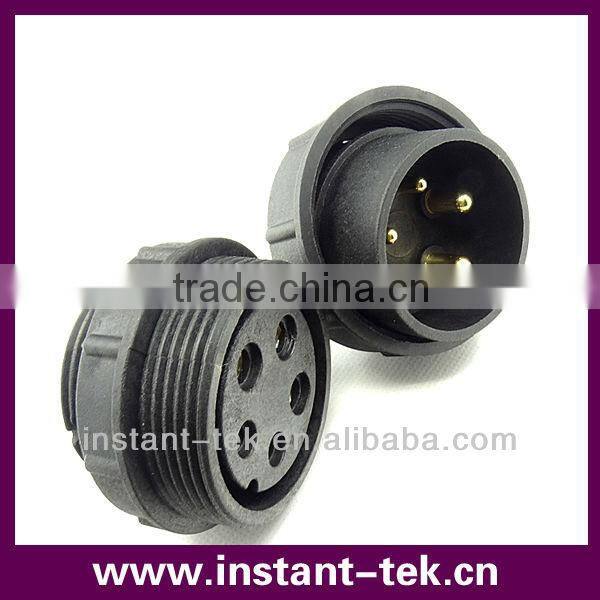

m58 male rubber core of 100A current
- 50000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Intantware | Model Number: | M58-3+2P |
Type: | Other, AC/DC | Application: | Power | Gender: | Other |
Product Description
Specifications
Waterproof connector of RJ45,DSUB ,M58,M22,F/M panel solder typeIP67,IP68 waterproof rating
UL,CE certified
RoHS
OEM
M58 Waterproo Connector Specification
Description | Details | Code |
1. Connector Size | JKGL-M36 | M36 |
2. Current Rating | 60-100A | 60-100 |
3. Number of Contacts | 2,3,4,5 | 2-5 |
4. Connector Type | Without SR/SR | B/S |
5. Connector Gender | Male,Female | M,F |
6. Contact Gender | Male,Female | M,F |
7. Assembly Style | Field Installation /Molding(Solder) | M |
8. Mating Style | Screw | S |
9. Backs hell | Straight | L |
10. Waterproof Rating | IP67 | 7 |
Material: Core Material: PA6+30%GF UL94V0 Mold Material: Waterproof PVC Pin and Hole: Brass, Nickle Plated or Gold plated Sealing: Silicone Cable: Customize Other type cable for customize | ||
Property : Contact Resistance: <5mΩ Insulation Resistance: ≥500 MΩ at DC500V Breakdown Voltage: ≥2.5kV normal, 1.0kV water Temperature Rating: -45°C~+105°C Protection Ration: IP67, 300mm water half an hour Durability: 3K plug/Unplug Cycles
| ||
It is widely used in ·New energy ·LED ·Industrial control product ·Automotive ·Security product ·Power Supply ·Electric Vehicle ·Solar Energy ·IPC ·Various Mold It is high performance and competitive price. Welcome OEM/ODM.
|
Company profile:
INSTANTWARE is now manufacturing the whole range of ,M8,M12,M14,M22 waterproof connector.The connection products are widely sed in field bus components,Ethernet,solenoid valves,pressure sitches,motors-control,protoelectric barries,flow monitoring devices,proximity switches,and sensors in the hydraulic,pneumatic and automation industries.
Instantware,a total solution provider,also produces cable harness for automative diagnostic service,industrial connectivity,medical equipments,HVAC climate control technologies.The products have been world-widely exported to the markets as in:Germany,Sweden,Denmark,Australia,Dutchland,UK,Spain,Italy,Irael,USA,Canada and Asia.
Welcme to send us enquiry and we will give you prompt reply and make satisfaction based on your requirements,and OEM is also available!
