voip gsm sim box gateway
Description details

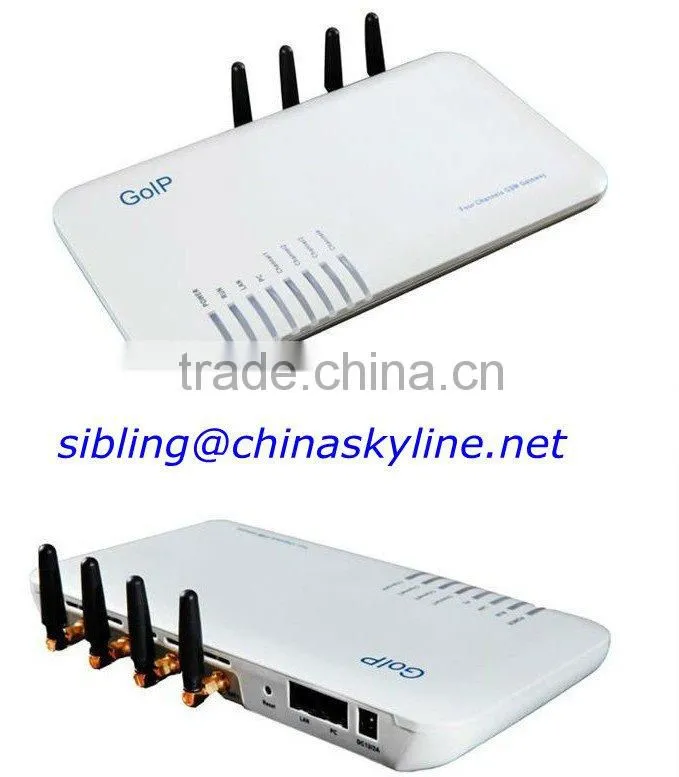

The 4-channel GSM VoIP Gateway/GoIP-4 bridges the GSM and the IP networks by enabling voice communications. It is ideal for VoIP to Local termination where a fixed telephone line (PSTN) is not available or for cellphone roaming via the a VoIP network. Significant savings on long distance charges can be realized
Key Features
Open Standard VoIP Protocols (ITU H. 323 V4 and IETF SIP V2)
Single or Multiple Server Registrations
Two 10/100 Ethernet circuits connect to the LAN and an additional device
GSM module for making GSM calls
Speech quality ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer VLAN and QoS support
NAT Transversal and Router functions
Voice prompts, HTTP Web, Auto Provision support for configuration and updates
Highly stable embedded Linux operating system in high performance ARM 9 Processor
Basic Features
LEDs for Power, Ready, Status, WAN, PC, GSM
Call forward from GSM to VoIP and VoIP to GSM
Dial in mode or dial out mode only
Dial Plan
Password protection for both GSM dial in or dial out
Retransmit GSM Caller ID to VoIP terminal
Enhanced Features
Dynamic selection of codec
Advanced jitter buffer Automatic traversal of NAT and firewall
VLAN / Qos
Echo cancellation for Speakerphone
Comfort noise generation (CNG)
Voice activity detection (VAD)
Auto provisioning (requires auto provisioning server)
On line firmware upgrade
Multi-language support: English and Chinese
Supported Standards
ITU: H. 323 V4, H. 225, H. 235, H. 245, H. 450
RFC 1889 - RTP/RTCP
-RFC 2327 SDP
RFC 2833 RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals
RFC 2976 SIP INFO Method
RFC 3261 SIP
RFC 3264 Offer/Answer model with SDP
RFC 3515 SIP REFER Method
RFC 3842 A Message Summary and Message Waiting Indicator
RFC 3489 Simple Traversal of User Datagram Protocol (UDP) Through Network -AddressTranslators (NATs)
RFC 3891 SIP Replaces Header
RFC 3892 SIP Referred-By Mechanism draft-ietf-sipping-CC-transfer-04 Session Initiation -Protocol Call Control - Transfer
Codec: G. 711 (A/µ Law), G. 729A/B, G. 723.1
DTMF: RFC 2833, In-band DTMF, SIP INFO
Physical and Environmental
Operating temperature: 10° C to 40° C (50° F to 104° F)
Storage temperature: 0° C to 50° C (32° F to 122° F)
Weight: 500 g (1 lb) (Including AC/DC Adapter)
Size: 105 mm (W) x 100 mm (L) x 28 mm (H) (Width x Length x Heigth
Power: 12 Vdc 500 mA (AC/DC adapter included)
Price and support
we are manufacturer and can give you factory price. we can give you professional free support services with the help of our technology support engineers.
