Hot! GOIP8 Port Gsm Gatway With SIP and H323,sms Gateway Device

Hot! GOIP8 Port Gsm Gatway With SIP and H323,sms Gateway Device thumbnail-1
Hot! GOIP8 Port Gsm Gatway With SIP and H323,sms Gateway Device photo-1
US$ 560 - 5,621 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SKYLINE
Model Number:
GOIP8
Contact Supplier Request Quote Chat Now
Skyline (Shenzhen) Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
HK SZ
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SKYLINE
Model Number GOIP8
Type VoIP Gateway

SKYLINE Goip 8 port gsm gateway/sip ata gateway description:

Hot! GOIP8 port gsm gatway with SIP and H323,sms gateway device



Hot! GOIP8 port gsm gatway with SIP and H323,sms gateway device















Product Introduction:

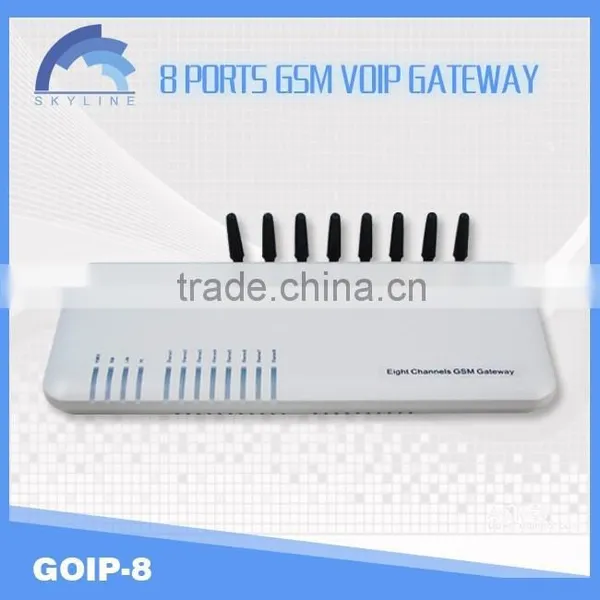

The GSM Fixed Wireless Terminal  8 ports Gateway GoIP-8 is a  8 SIM Card Broadband Phone Gateway that had been developed by CHINA SKYLINE Ltd. GoIP_8 SIM Card Broadband Phone Gateway is a new product that connect the GSM and the VOIP seamlessly. To GoIP_8 what is installed on the Mobile SIM Card, you can register the GSM telephone on the VoIP soft switch. SIP and H.323 agreement are built in the GoIP_8 and configured flexible. Caller ID can be seen by using SIP. Flexible routing can meet the need of all kinds of call forwarding; even more special is that GoIP_8 support multi-device group, it can be easily combined into arbitrary number of channels of Large Gateway Group.



Key Features

  • Open Standard VoIP Protocols (ITU H.323 V4 and IETF SIP V2)
  • Single or Multiple Server Registrations
  • Two 10/100 Ethernet circuits connect to the LAN and an additional device
  • GSM module for making GSM calls
  • Speech quality ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer
  • VLAN and QoS support
  • NAT Transversal and Router functions
  • Voice prompts, HTTP Web, Auto Provision support for configuration and updates
  • Highly stable embedded Linux operating system in high performance ARM 9 Processor



Basic Features
  • LEDs for Power, Ready, Status, WAN, PC, GSM
  • Call forward from GSM to VoIP and VoIP to GSM
  • Dial in mode or dial out mode only
  • Dial Plan
  • Password protection for both GSM dial in or dial out
  • Retransmit GSM Caller ID to VoIP terminal

Enhanced Features

  • Dynamic selection of codec
  • Advanced jitter buffer
  • Automatic traversal of NAT and firewall
  • VLAN / Qos
  • Router
  • Echo cancellation for Speakerphone
  • Comfort noise generation (CNG)
  • Voice activity detection (VAD)
  • Auto provisioning (requires auto provisioning server)
  • On line firmware upgrade
  • Multi-language support: English and Chinese

Supported Standards

  • ITU: H.323 V4, H.225, H.235, H.245, H.450
  • RFC 1889 - RTP/RTCP
  • RFC 2327 SDP
  • RFC 2833 RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals
  • RFC 2976 SIP INFO Method
  • RFC 3261 SIP
  • RFC 3264 Offer/Answer model with SDP
  • RFC 3515 SIP REFER Method
  • RFC 3842 A Message Summary and Message Waiting Indicator
  • RFC 3489 Simple Traversal of User Datagram Protocol (UDP) Through Network Address Translators (NATs)
  • RFC 3891 SIP Replaces Header
  • RFC 3892 SIP Referred-By Mechanism
  • draft-ietf-sipping-cc-transfer-04 Session Initiation Protocol Call Control - Transfer
  • Codec: G.711 (A/µ law), G.729A/B, G.723.1
  • DTMF: RFC 2833, In-band DTMF, SIP INFO





Hot! GOIP8 port gsm gatway with SIP and H323,sms gateway device

























FAQ
  Question Answer
1 What is main funtion of the 16 ports terminal gsm voip gateway
 GoIP?		 For call terminal
2 What is the software can be supported by GoIP? VOS,VPS,VoIP switch,3CX,P·B·Xes,free PBX,MOR
3 What is the hardware can be supported by GoIP? IPPBX and so on
4 What is the bandwidth requested by GoIP? It is up to your voice code.G723 need 23kbps per channel,G729 need 34kbps,
G711 need 90 kbps
5 Is there any 32 port or 64 port GSM VOIP GATEWAY?
 Each gsm port need 30-45 kpbs upload,and normally for adsl's upload bandwith is 512 kpbs. So max is 16 port .
6 What is the differnce between the new GoIP(antena bulit in)and the previous GoIP? The function is the same with the previous GoIP.The only difference is antena.
New GoIP antena is bulit in the board.
7 What is the communication network can be supported by GoIP? Only GSM
8 How about our service? Pls don't worry.If you have some problem,our engineer will give u help at the first time
10 What is our main express shipment? DHL,UPS,FEDEX,TNT,EMS(can send to all over the world)









Any enquiry, Contact me freely.
