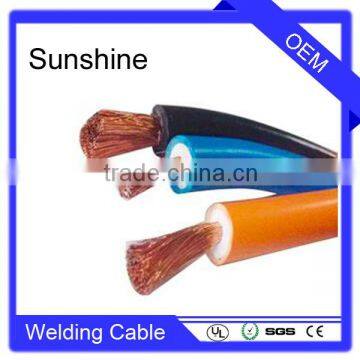

TPE Covered Copper Welding Cable
Conductor |
Insulation | Electrical | Packing | |||
|
Sectional Area mm² |
Conductor Construction NO.XΦmm |
Diameter mm |
Insulation Thickness mm |
Outer Diameter mm |
Max.Conductor Resistance DC 20℃ Ω/km |
M/coil |
| 0.3 | 16x0.15 | 0.7 | 0.6 | 1.9 | 71.2 | 200 |
| 0.5 | 28x0.15 | 1 | 0.6 | 2.2 | 40.1 | 200 |
| 0.50 | 20x0.18 | 1 | 0.6 | 2.2 | 40.1 | 200 |
| 0.75 | 42x0.15 | 1.2 | 0.65 | 2.5 | 26.7 | 200 |
| 0.75 | 24x0.20 | 1.2 | 0.65 | 2.5 | 26.7 | 200 |
| 1 | 32x0.20 | 1.3 | 0.7 | 2.7 | 26.7 | 200 |
| 1.5 | 30x0.25 | 1.6 | 0.7 | 3 | 13.7 | 100 |
| 2.5 | 49x0.25 | 2.1 | 0.7 | 3.5 | 8.21 | 100 |
| 4 | 56x0.30 | 2.9 | 0.7 | 4.3 | 5.09 | 100 |
| 6 | 84x0.30 | 3.6 | 0.8 | 5.2 | 3.39 | 100 |
| 10 | 84x0.40 | 4.8 | 1 | 6.8 | 1.95 | 100 |
| 16 | 126x0.40 | 5.8 | 1.1 | 8 | 1.24 | 100 |
| 25 | 210x0.39 | 7.7 | 1.5 | 10.7 | 0.795 | 100 |
Features:
1.Maximum rated operating temperature:105°C;
| 1, Wire Drawing | 2, Conductor Stranding | 3,Wrapping |
| ||
| 4,Spurt Code | 5, Molding |
6, Extrusion |
| ||
| 7, Armour | 8, Testing | 9, Packing&Delivery |
| ||
| Advantage | Delivery time( Working Day) | |||||
| 2-3 | 3-7 | 7-10 | 10-20 | 20-30 | >30 | |
| Airmail Post | 10% | 50% | 35% | 5% | ||
| EMS | 5% | 50% | 30% | 15% | ||
| DHL | 5% | 80% | 15% | |||
| Fedex | 5% | 80% | 15% | |||
| UPS | 80% | 20% | ||||
| UPS Expedited | 30% | 70% | ||||
Sunshine cable is one of the most famous and reputation cable manufacturer in China. We have more than 500 skillful employees to make products with high quality. Our products are seld to all over the world including Europe, Australia, the US, Canada, Brazil and other areas.Our company specializes in producing conductors, utp cables, medium/high-pressure cables, pvc/xlpe cables, YC cable, BV cable, aerial insulation cable and coexial cable. Besides, we offer the most efficient and effective assembly services.
- What kind of cable do you produce?
We specialize in producing various conductors, pvc/xlpe cable, YC calbe, BV cable, areial cable, coexial cable and so on.
- What is your delivery time?
Usually, our delivery time wihtin 7days after received deposit.
- What is your payment term?
Usually, we accept T/T. Other payment, we can negotiate with customers.
- Can you customize cables basing on customer's sample?
Yes, of course
- What is your minimum order quantity?
1 box for EXW as your samples,
- Can I get some discount if we place a bulk order?
Yes, of course you can, we used to give some discount for our long time cooperation.
