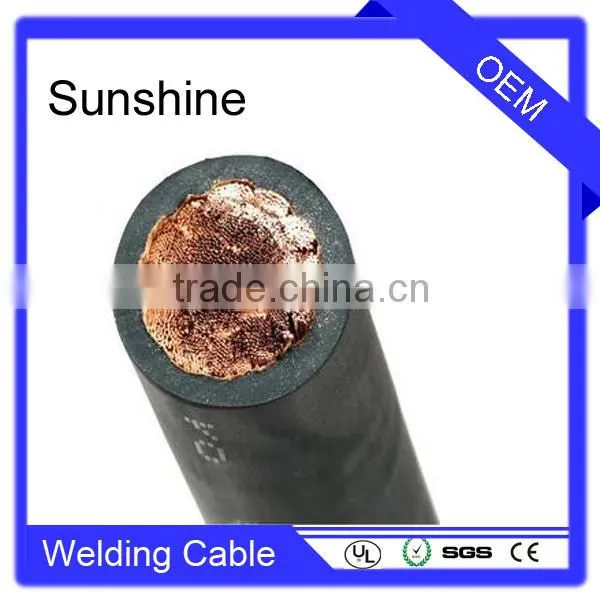

Welder cable 35mm and 25mm Welding Cable Black Orange
- 50000 Box / Boxes per Month
- Qingdao
- T/T
You May Like
-
0.66/1.44kv fire resistant ho7rn-f rubber cable copper cable for coal cutter / mining pit/ mobile equipmentv
-
0.66/1.44kv fire resistance rubber sleeves copper cable for coal cutter / mining pit/ mobile equipmen
-
Top quality 0.66/1.44kv vulcanised rubber cable
-
European standard electrical cable weding cable
-
High quality Flexible Copper Conductor Rubber Sheath Welder cable
-
Flexible TPE EPR Rubber 50mm2 70mm2 Copper Welding Cable
Product Details
Place of Origin | Shandong, China | Brand Name | Yanggu Sunshine | |
Model Number | PVC | Insulation Material | Rubber | |
Type | Low Voltage | Application | Industrial | |
Conductor Material | Copper | Jacket | PVC |
Product Description
Welder cable 35mm and 25mm Welding Cable Black Orange
Conductor | Insulation | Electrical | Packing | |||
Sectional Area mm² | Conductor Construction NO.XΦmm | Diameter mm | Insulation Thickness mm | Outer Diameter mm | Max.Conductor Resistance DC 20℃ Ω/km | M/coil |
0.3 | 16x0.15 | 0.7 | 0.6 | 1.9 | 71.2 | 200 |
0.5 | 28x0.15 | 1 | 0.6 | 2.2 | 40.1 | 200 |
0.50 | 20x0.18 | 1 | 0.6 | 2.2 | 40.1 | 200 |
0.75 | 42x0.15 | 1.2 | 0.65 | 2.5 | 26.7 | 200 |
0.75 | 24x0.20 | 1.2 | 0.65 | 2.5 | 26.7 | 200 |
1 | 32x0.20 | 1.3 | 0.7 | 2.7 | 26.7 | 200 |
1.5 | 30x0.25 | 1.6 | 0.7 | 3 | 13.7 | 100 |
2.5 | 49x0.25 | 2.1 | 0.7 | 3.5 | 8.21 | 100 |
4 | 56x0.30 | 2.9 | 0.7 | 4.3 | 5.09 | 100 |
6 | 84x0.30 | 3.6 | 0.8 | 5.2 | 3.39 | 100 |
10 | 84x0.40 | 4.8 | 1 | 6.8 | 1.95 | 100 |
16 | 126x0.40 | 5.8 | 1.1 | 8 | 1.24 | 100 |
25 | 210x0.39 | 7.7 | 1.5 | 10.7 | 0.795 | 100 |
Features:
1.Maximum rated operating temperature:105°C;
1, Wire Drawing | 2, Conductor Stranding | 3,Wrapping |
4,Spurt Code | 5, Molding | 6, Extrusion |
7, Armour | 8, Testing | 9, Packing&Delivery |
Advantage | Delivery time( Working Day) | |||||
2-3 | 3-7 | 7-10 | 10-20 | 20-30 | >30 | |
Airmail Post | 10% | 50% | 35% | 5% | ||
EMS | 5% | 50% | 30% | 15% | ||
DHL | 5% | 80% | 15% | |||
Fedex | 5% | 80% | 15% | |||
UPS | 80% | 20% | ||||
UPS Expedited | 30% | 70% |
Sunshine cable is one of the most famous and reputation cable manufacturer in China. We have more than 500 skillful employees to make products with high quality. Our products are seld to all over the world including Europe, Australia, the US, Canada, Brazil and other areas.Our company specializes in producing conductors, utp cables, medium/high-pressure cables, pvc/xlpe cables, YC cable, BV cable, aerial insulation cable and coexial cable. Besides, we offer the most efficient and effective assembly services.
- What kind of cable do you produce?
We specialize in producing various conductors, pvc/xlpe cable, YC calbe, BV cable, areial cable, coexial cable and so on.
- What is your delivery time?
Usually, our delivery time wihtin 7days after received deposit.
- What is your payment term?
Usually, we accept T/T. Other payment, we can negotiate with customers.
- Can you customize cables basing on customer's sample?
Yes, of course
- What is your minimum order quantity?
1 box for EXW as your samples,
- Can I get some discount if we place a bulk order?
Yes, of course you can, we used to give some discount for our long time cooperation.
