0.6/1kv duplex service drop wire AAC 6AWG ABC power cable
| SPEC | Conductor structure | Insulation | Insulation |
Approx overall diameter |
Approx weight |
|
| mm2 |
Phase (compacted Al) |
Neutral | Material |
Thickness (mm) |
(mm) | (kg/km) |
| (alloy) | ||||||
| No./mm | No./mm | |||||
| 1*16+1*16 | 7/1.72 | 7/1.72 | XLPE (HDPE) | 1.2 | 12.5 | 110.1 |
| 1*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 14.9 | 163.9 | |
| 1*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 17.5 | 229 | |
| 1*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 20.1 | 300 | |
| 1*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 23.6 | 423.2 | |
| 1*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 27.6 | 585.4 | |
| 2*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 14.2 | 175.8 | |
| 2*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 16.7 | 258.4 | |
| 2*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 19.7 | 361.2 | |
| 2*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 22.5 | 472.1 | |
| 2*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 26.1 | 658.3 | |
| 2*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 30.5 | 908.2 | |
| 3*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 16.3 | 241.5 | |
| 3*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 19.1 | 353.6 | |
| 3*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 22.5 | 493.5 | |
| 3*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 25.7 | 644.1 | |
| 3*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 29.7 | 895.2 | |
| 3*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 34.6 | 1233.5 | |
Features:

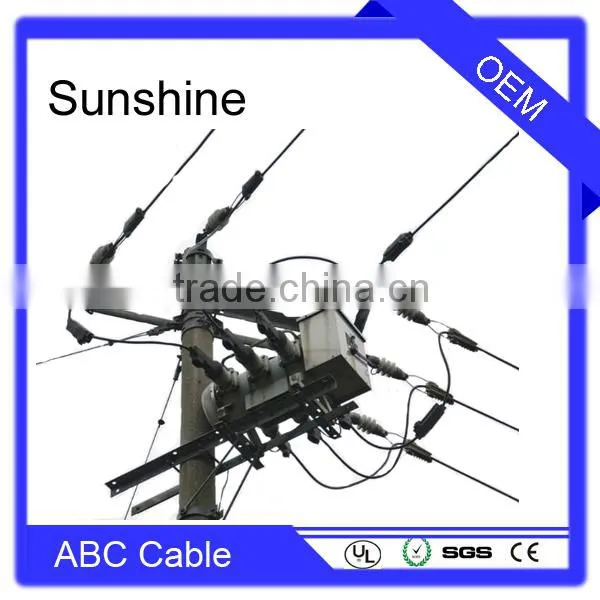

Aerial Bunbled Cable (ABC cable) has characters of power-transmitting and strong mechanical. In comparison with bare wire, aerial bundled cable (ABC cable) boasts many advantages, such as : small span in laying, higher safe reliability, better atmosphere aging resistance property. Aerial bundled cable has the priority to be used in urban and rural transmitting construction project.
We can supply this cable according to different recognized standards, such as ASTM B230, B231, B232, B399, ICEA S-76-474, NF , customer's special specification also can be satisfied.
| 1, Wire Drawing | 2, Conductor Stranding | 3,Wrapping |
| ||
| 4,Spurt Code | 5, Molding |
6, Extrusion |
| ||
| 7, Armour | 8, Testing | 9, Packing&Delivery |
| ||
| Advantage | Delivery time( Working Day) | |||||
| 2-3 | 3-7 | 7-10 | 10-20 | 20-30 | >30 | |
| Airmail Post | 10% | 50% | 35% | 5% | ||
| EMS | 5% | 50% | 30% | 15% | ||
| DHL | 5% | 80% | 15% | |||
| Fedex | 5% | 80% | 15% | |||
| UPS | 80% | 20% | ||||
| UPS Expedited | 30% | 70% | ||||
Sunshine cable is one of the most famous and reputation cable manufacturer in China. We have more than 500 skillful employees to make products with high quality. Our products are seld to all over the world including Europe, Australia, the US, Canada, Brazil and other areas.Our company specializes in producing conductors, utp cables, medium/high-pressure cables, pvc/xlpe cables, YC cable, BV cable, aerial insulation cable and coexial cable. Besides, we offer the most efficient and effective assembly services.
- What kind of cable do you produce?
We specialize in producing various conductors, pvc/xlpe cable, YC calbe, BV cable, areial cable, coexial cable and so on.
- What is your delivery time?
Usually, our delivery time wihtin 7days after received deposit.
- What is your payment term?
Usually, we accept T/T. Other payment, we can negotiate with customers.
- Can you customize cables basing on customer's sample?
Yes, of course
- What is your minimum order quantity?
1 box for EXW as your samples,
- Can I get some discount if we place a bulk order?
Yes, of course you can, we used to give some discount for our long time cooperation.
