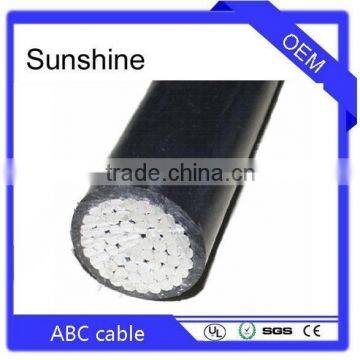

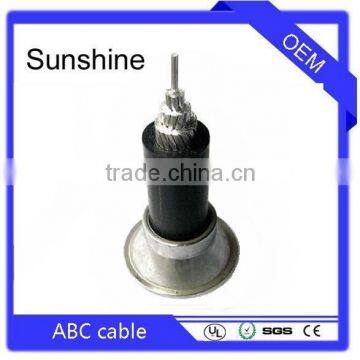

ABC Cable no Armoredno Duplex Drop IEC62004

Aerial Bundle Cable Service Drop-
1. Material: Aluminium, copper
2. Type: LJ, LGJ, LGJF, JL, JLHA, JL/G, JLHA/G, JL/LHA, JL/LB, JLHA/LB, JG, JLB.
3. Rated Voltage: 0./1 kV, 10kV, 35kV.
4. No. of cores: 1, 2, 3, 4, 3+k(A), 3+k(B).
5. Standard: GB/T12527 GB/T14049 or other.
6. Insulation: PVC, PE, xlpe
7. Sheath:PVC, PE, XLPE
8. Application: applying in cable fixed aerial laying or used as wire leading into user's premises.
9. Nominal cross section area: from 10 mm2 to 710mm2. C12

Application Character
Rated Voltage Cable Types: 1.0.6/1kV; 2.10kV ; 3.35kV
Permissible Long-term Operating Temperature: 1. For PVC Insulation: 70 ℃ 2.For PE Insulation: 70 ℃ 3.For XLPE Insulation: 90 ℃
Max. Short-circuit Temperature(within 5s): 1. For PVC Insulation: 160℃ 2.For PE Insulation: 130 ℃ 3.For XLPE Insulation: 250 ℃
Ambient Temperature: -40 ℃ to 40 ℃
Relative Humidity: ≤90%
Bending Radius: ≥4D(when D<25mm); ≥6D(when D≥25mm)

What's the application of aerial cable?
This aerial cables is suitable for fixed installation in power distribution lines for rated voltage up to and including 20 KV. It is mainly used in city streets,green belts, close to the buildings of the overhead lines.
It’s particularly suited to the densely populated cities, towns and green belts .The laying of aerial cables is convenient , high flexible.It not only reduce the occupied space corridor, and also greatly reduce blackouts and electric shock accidents caused by line fault.What’s more, it can improve the security and reliability of the power grid.

What's the characteristic of the aerial cable?

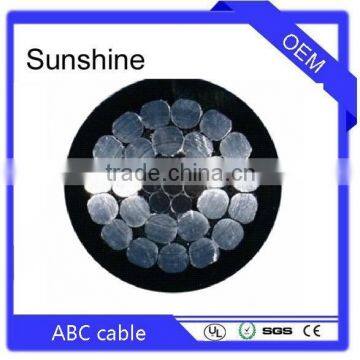

Conductors are concentrically stranded
Chemical and oil resistance: excellent
Abrasion resistance: excellent
The maximum working temperature of conductor:90°C
Maximum short-circuit temperature: 250ºC (max 5s)
What's the installation conditions of the aerial cable?
1.Rated voltage: 1KV, 10KV, 20KV and below
2.The installation temperature should be above -20°C
3.Minimum bending radius: 4 x cable diameter(outer diameter below 25mm2)

6 x cable diameter(outer diameter above 25mm2)

What's the nominal cross-section area?

10 mm2,16 mm2, 25 mm2, 35 mm2, 50 mm2,70 mm2,95 mm2,120 mm2,150 mm2,185 mm2, 240mm2,300mm2

(1).What’s Yangguang cable main charactors ?

We can supply all of the cables including normally power cable , computer cable , control cable , equipment cable , etc. , because we own self factories and technology , can qualify all different customers’ requirement .

(2). What’s kind of standard do Yangguang cable take by ?

In China native market , we obey GB standard and all the export model we firstly must obey the IEC standard .Also we can supply the American ASTM standard , Germany VDE standard , French NFC standard , English BS standard , Australian and New Zealand AS/NZS standard.

(3)What’s the qualify system do Yangguang cable qualify ?

We firstly obey ISO9001 certificaten , and computer wire , electric wire we obey UL certificaten ,also some cable we obey the Rohs and CE certificate .

(4)When can I get the price?

We have strictly regulation , we must deal with customer’s quotation within 24 hours , if you have urgent requirement please call me and I will push the cost calculation accelerate forward.

(5).If I can get Yangguang cable authorization to join the international bidding ?

Yes, we can authorize the formula documents to help customers join in local bidding .

(6).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
