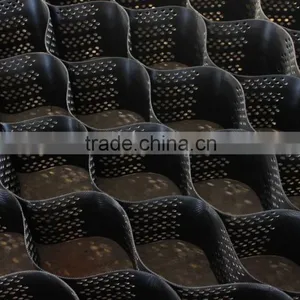

Geocell is a net-shaped cell structure made by welding high intensity thermoplastic
sheet.
Geocell
Thickness: 1mm,1.2mm,1.5mm,2mm
Height: 50mm,100mm,150mm,200mm
Raw material: PP or PE
It is flexible: folded during transportation, stretching out and beingfilled with stone or concrete during service, and forming into struct with powerful
lateral confinement and rigidity.
It can be used as cushion coat to strengthenloading capacity of weak ground or slope protection structure, as well as stopstructure, and so on.
Geocell (Materials: HDPE)
Item Model | Height (mm) | Welding distance (mm) | Sheet thickness (mm)
| Tensile yield strength of the cell (MPa) | Seam peel strength (N/10cm) | |
smooth | textured | |||||
TGLG-50-400 | 50 | 400 | 1~1.1 | 1.4~1.5 | 20.0 | 1000 |
TGLG-100-400 | 100 | 400 | 1~1.1 | 1.4~1.5 | 20.0 | 1000 |
TGLG-150-400 | 150 | 400 | 1~1.1 | 1.4~1.5 | 20.0 | 1000 |
TGLG-200-400 | 200 | 400 | 1~1.1 | 1.4~1.5 | 20.0 | 1000 |
TGLG-75-330 | 75 | 330 | 1~1.1 | 1.4~1.5 | 20.0 | 1000 |
TGLG-100-330 | 100 | 300 | 1~1.1 | 1.4~1.5 | 20.0 | 1000 |
TGLG-150-330 | 150 | 330 | 1~1.1 | 1.4~1.5 | 20.0 | 1000 |
Notes:
(1)welding distance:330mm~800mm

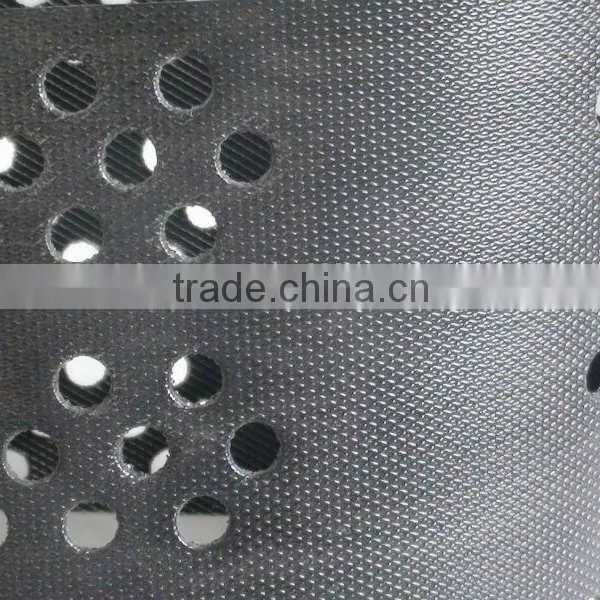

(2)we can produce smooth/textured geocell, perforated/non-perforated geocell
(3)The special spec or size can be manufactured according to the demands of the contract
Functions:
1.Fix railway ground.
2.Fix weak ground of roads.
3.Block loading capacity.
4.Treat river way of shallow water.
5.Act as support in pipeline and sewer.
6.Act as comprehensive block stopping land sliding and bearing loading capacity.
7.Act as independent wall, dock and break-water.
8.Treat desert, beach, riverbed and bank
