Specifications
1)Load support cell2)Thickness:1mm.1.2mm.1.5mm.2mm
Height:50mm.100mm.150mm.200mm
3)powerful lateral confinement

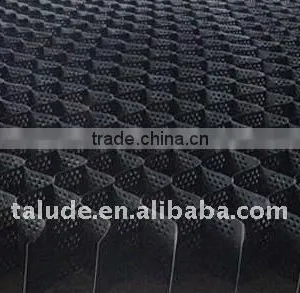

Load support cell
Introduction:
Load support cell is a net-shaped cell structure made by welding high intensity thermoplastic sheet. It is flexible and folded during transportation, stretching out and being filled with stone or concrete during service, and forming into structure with powerful lateral confinement and rigidity
Functions
1.Load support cell can be used as cushion coat to strengthen loading capacity of weak ground
2.Load support cell can paved in slope as slope protection structure.
3. Lad support cell can be used to build the support block structure
Performance parameter of load support cell
|
Item Model |
Tensile yield strength of the cell (MPa) |
Tensile strength at the welding joint (N/cm) |
Tensile strength at the joint of cell group Middle place (N/cm) |
Tensile strength at the joint of cell group edge |
||||
Material is PP |
Material is PE |
Material is PP |
Material is PE |
Material is PP |
Material is PE |
Material is PP |
Material is PE |
|
TGLG-50-400 |
≥23.0 |
≥20.0 |
≥100 |
≥100 |
≥120 |
≥120 |
≥200 |
≥200 |
TGLG-100-400 | ||||||||
TGLG-150-400 | ||||||||
TGLG-200-400 | ||||||||
s
