Home > Packaging & Printing > Packing Machinery > Wrapping Machine > DT1650F- M Pallet Wrap Machine (open Turntable)

DT1650F- M Pallet Wrap Machine (open Turntable)

DT1650F- M Pallet Wrap Machine (open Turntable) photo-1
DT1650F- M Pallet Wrap Machine (open Turntable) photo-2

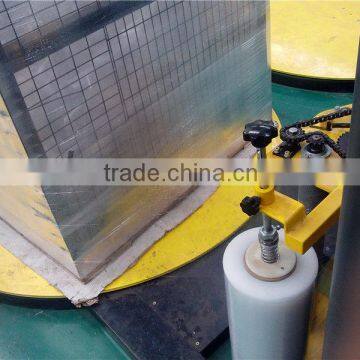

DT1650F- M Pallet Wrap Machine (open Turntable) photo-3

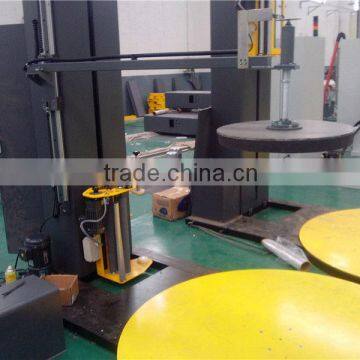

DT1650F- M Pallet Wrap Machine (open Turntable) photo-4

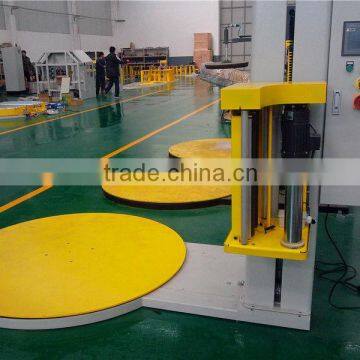

DT1650F- M Pallet Wrap Machine (open Turntable) photo-5

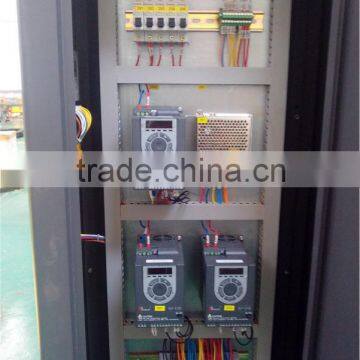

DT1650F- M Pallet Wrap Machine (open Turntable) photo-6
US$ 2,400 - 2,700 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Packaging Type:
Film
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Packaging Type Film
Automatic Grade Automatic
Driven Type Electric
Place of Origin Shandong, China
Brand Name KINGON
Model Number DT1650F- M
After-sales Service Provided Engineers available to service machinery overseas

Specifications

DT1650-M Pallet-wrapper with an open turntable in order to enable direct loading with manual or electric jacks

Specification:

  DT1650-M Pallet-wrapper with an open turntable in order to enable direct loading with manual or electric jacks, so there is no need either for floor modifications or for a ramp. Therefore, that would save much effort and improve efficiency.

  Top plate is optional and specially designed for holding an unstable product.



Technology data:

Model

DT1650F-M

Wrap size(L×W)

(500-1200)mm×(500-1200)mm

Wrap height(max)

L type:1800mm H type:2400mm Y type:2800mm

Wrap efficiency

20-40 Pallets/Hour

Turntable speed

0-12rpm Adjustable turntable speed

Turntable diameter

1650mm

Turntable height

98mm

Turntable weight capacity(max)

2000kg

Film carriage

Pre-Stretch film carriage,stretch up to 350% and adjustable speed

Lift system

Double chain structure,lift speed adjustable

Control system

PLC control,wrap layers adjustable,Turntable reposition automatically,photo-eyes auto-height sensing

Open turntable size

Custom made

Total weight(max)

700kg

Machine size

2745mm×1650mm×(2270-2870)mm

Power/voltage

Turntable:0.75kw Film carriage:0.35kw Lift system: 0.37kw`/AC220V

Top plate(optional)

Motor-driven



  Special machine please contact us
