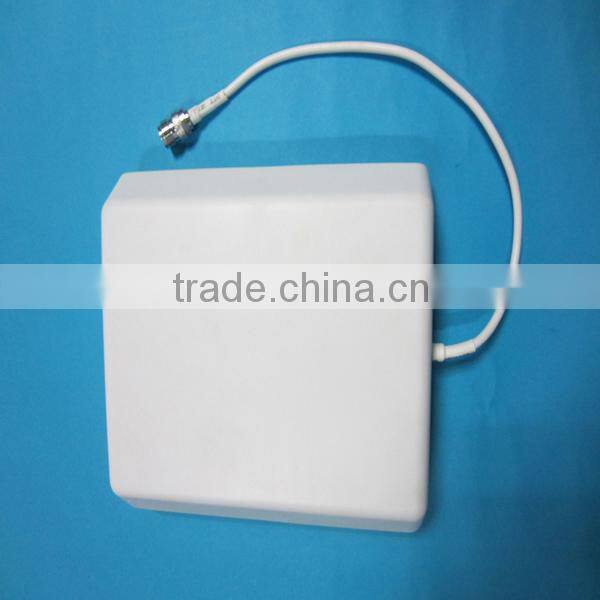

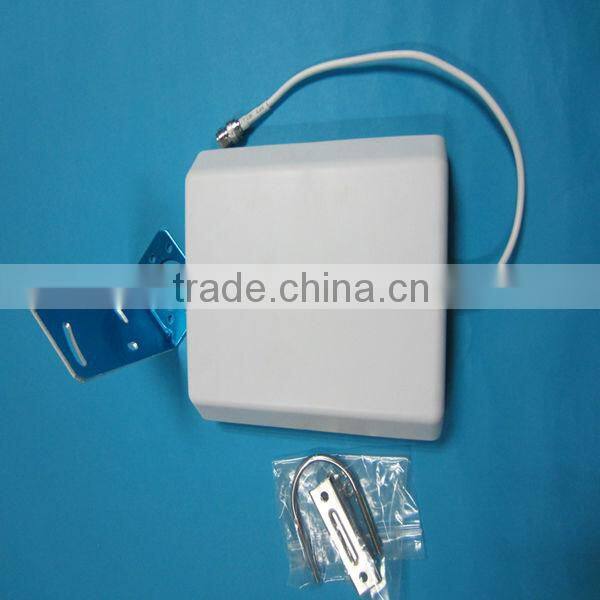

Yetnorson long range 10km WIFI 2.4GHz Indoor/outdoor Patch Antenna Assembly antenna WIFI outdoor panel antenna
| Product Name | Assembly antenna WIFI outdoor panel antenna |
| Description | Applications: |
| 2400-2500Mhz | |
| Repeater Antenna | |
| Features: | |
| Superior Performance | |
| Vertical PolAMization | |
| 65° Beam-width | |
| All Weather Operation | |
| Integral N Female Connector | |
| Electrical Specifications Panel Antenna | |
| Model | YNX-F037 |
| Frequency Range–MHz | 2400-2500 |
| Gain-dBi | 14 |
| Horizontal Beamwidth | 65 |
| Vertical Beamwidth | 14 |
| F/B ratio-dB | ≥28 |
| VSWR | ≤1.5 |
| Input Impedance -Ω | 50 |
| PolAMization | Vertical |
| Maximum Power -W | 100 |
| Connector | N or 7/16DIN Female |
| Mechanical Specifications | |
| Dimensions-mm | 650×170×65 |
| Weight-kg | 4.2 |
1. Payment Way:
We accept Paypal, T/T, Western Union, L/C and MoneyGram.
2. Shipment:
2. The items can be sent within 7working day after the payment reaches us, except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways.
4. Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.
Shenzhen Yetnorson technology Co., LTD. as one of the emerging high-tech enterprise.Who is one of the leader who is engaged in the antenna products .custom service, R&D, design,Our main prooducts at GSM/GPS/CDMA/DVB-T/DMB-T/DAB-T/ISDB /PHS / 3 G / 4 G /5.8G, 2.4 GHz (WIFI, wireless local-area network (wlan)-/ 3.5 GHz wimax (5.8 GHz) / wireless spread spectrum communication series
Welcome come to our website select your satisfied products ,if you have any question about our products pls feel free contact us we are always be ready anytime!!!
